Engine Build Date Code Change (09-55-88)

ENGINE BUILD DATE CODE CHANGE

TECHNICAL SERVICE BULLETIN

ENGINE BUILD DATE CODE

Model(s): All 1988 Jeep 5.9L, 4.2L, 4.0L & 2.4L Engines & 1988 Eagle Premier with 2.46L Engine 1988 Jeep Cherokee/Comanche/Wagoneer/Grand Wagoneer/Wangler

Bulletin No.: 09-55-88

Group: General

Date: September 6, 1988

Subject: Engine Build Date Code

SERVICE INFORMATION

An additional character has been added to the Engine Build Date Code 2 for 1988 Jeep 5.9L, 4.2L, 4.OL and 2.46L engines and the Eagle Premier 2.46L engine.

This bulletin contains the Engine Build Date Code configuration for 1988 engines.

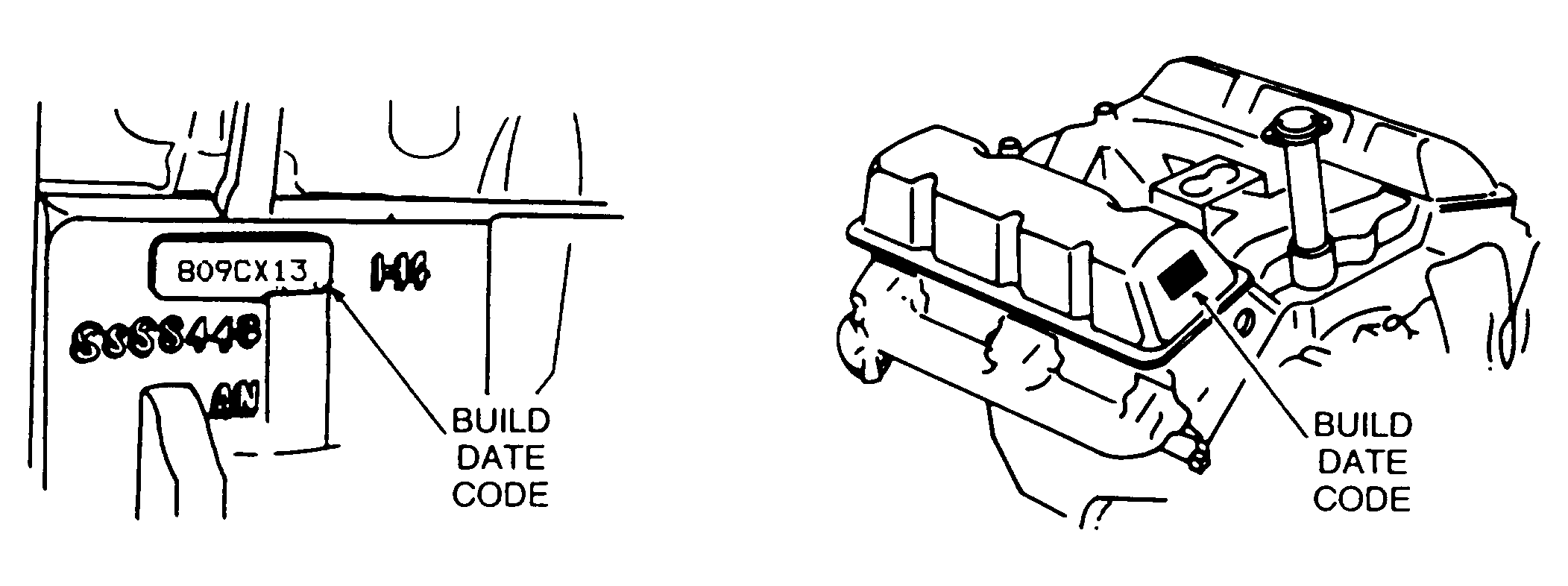

The Build Date Code is located on a machined surface on the right side of the cylinder block between the No. 3 and 4 cylinder on 2.46L engine and between the No. 2 and 3 cylinder on the 4.2L and 4.OL engines. The Build Date Code for the 5.9L engine is located on a plate attached to the right bank cylinder head cover. See Fig 1 .

1ST Character (Year)	2ND & 3RD Characters (Month)	4TH & 5TH Characters (Engine Type)	6TH & 7TH Characters (Day)
8 - 1988	01 - 12	CX	01 - 31
9 - 1989	01 - 12	CX	01 - 31

ENGINE LITRES (C.I.D.)	CYL/FUEL SYSTEM
NX 5.9L (360 C.I.D.)	V8 2V CARB.
CX 4.2L (258 C.I.D.)	I6 2V CARB.
CL 4.2L (258 C.I.D.)	I6 2V CARB. (1)
MX 4.0L (238 C.I.D.)	I6 MPFI.
HX 2.46L (150 C.I.D.)	I4 TBI.
HU 2.46L (150 C.I.D.)	I4 1V CARB.
HY 2.46L (150 C.I.D.)	I4 1V CARB. (1)
HZ 2.46L (150 C.I.D.)	I4 TBI EAGLE PREMIER
