2.5L TBI CEC Testing
›
Diagnostic Trouble Codes (DTC)
›
Fault Code 1005 - Sensor Ground Line Out Of Limits
Fault Code 1005 - Sensor Ground Line Out Of Limits

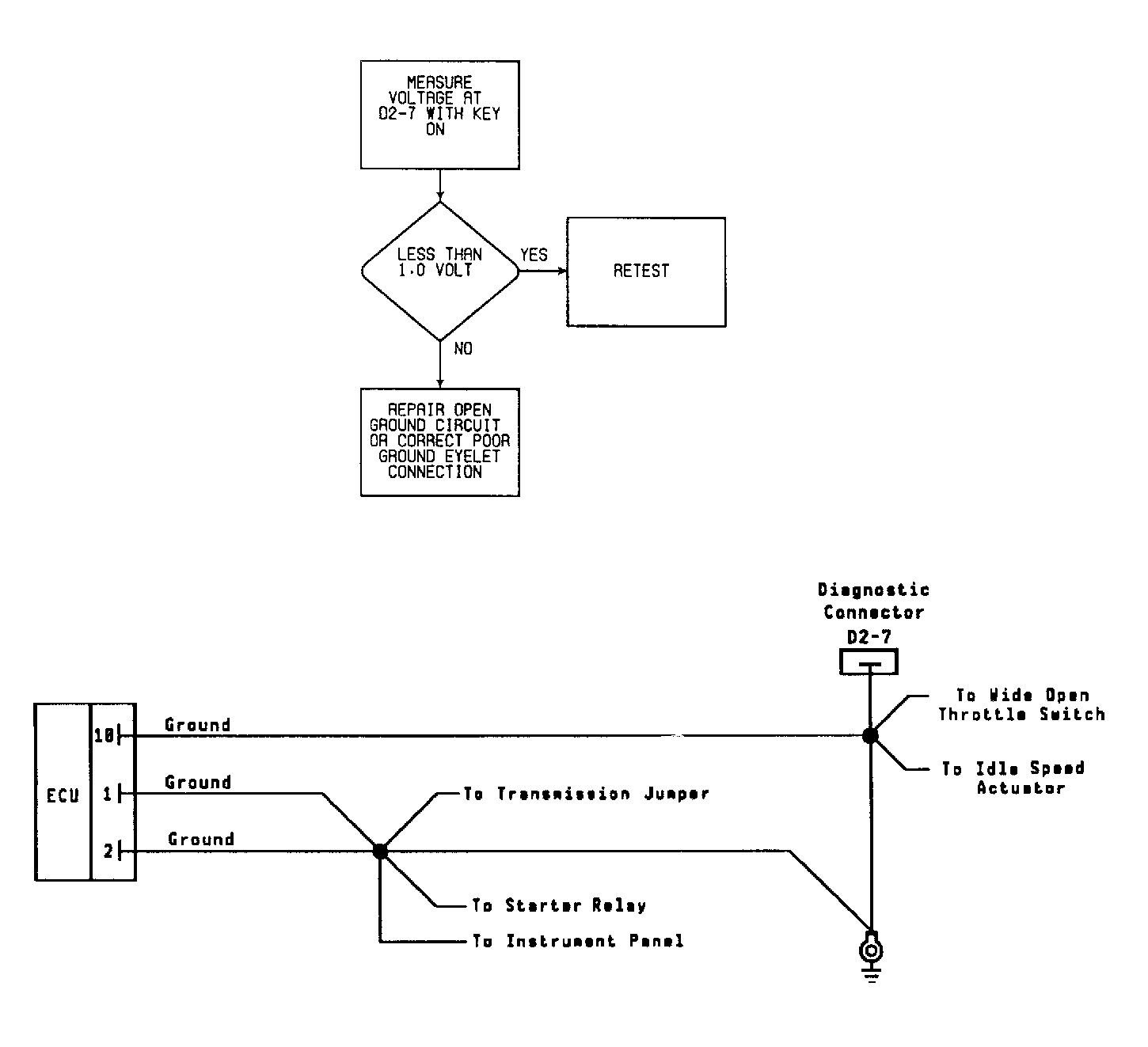

Fig 1: Testing For Fault Code 1005 - Sensor Ground Line Out Of Limits
Courtesy of CHRYSLER MOTORS.
Courtesy of CHRYSLER MOTORS.
