Fuel Injector Test

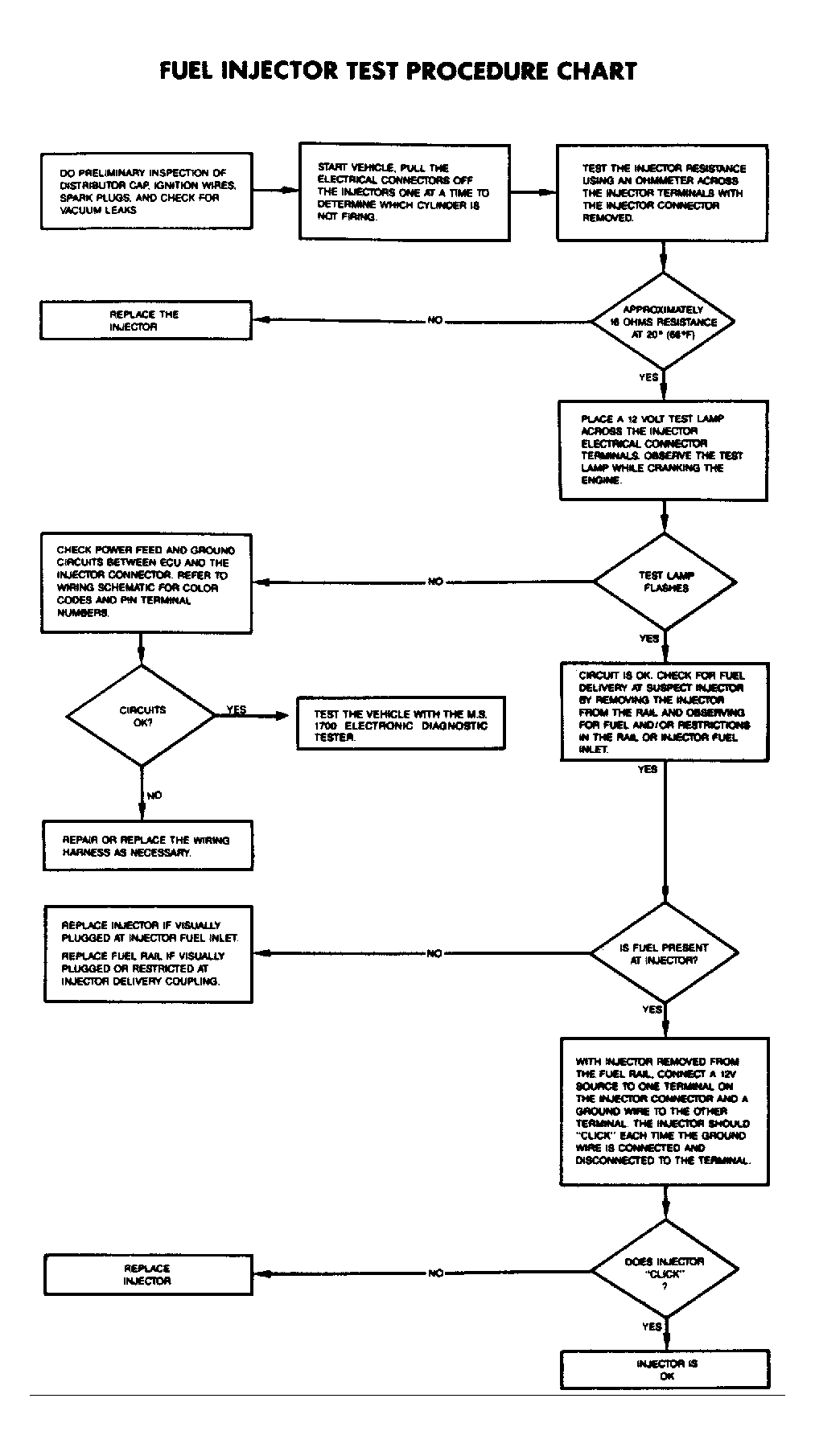

Disconnect injector wire connector from injector. Place an ohmmeter on injector terminals. Resistance reading should be approximately 14-18 ohms at 68°F (20°C). Proceed to FUEL INJECTOR TEST FLOW CHART. See Fig 1 .
Disconnect injector wire connector from injector. Place an ohmmeter on injector terminals. Resistance reading should be approximately 14-18 ohms at 68°F (20°C). Proceed to FUEL INJECTOR TEST FLOW CHART. See Fig 1 .
