Fault 1207: Injector No. 5 Shorted To Ground
Fault 1207: Injector No. 5 Shorted To Ground
Fig 1: Fault 1207: Circuit Diagram No. 5 Injector Shorted to Ground

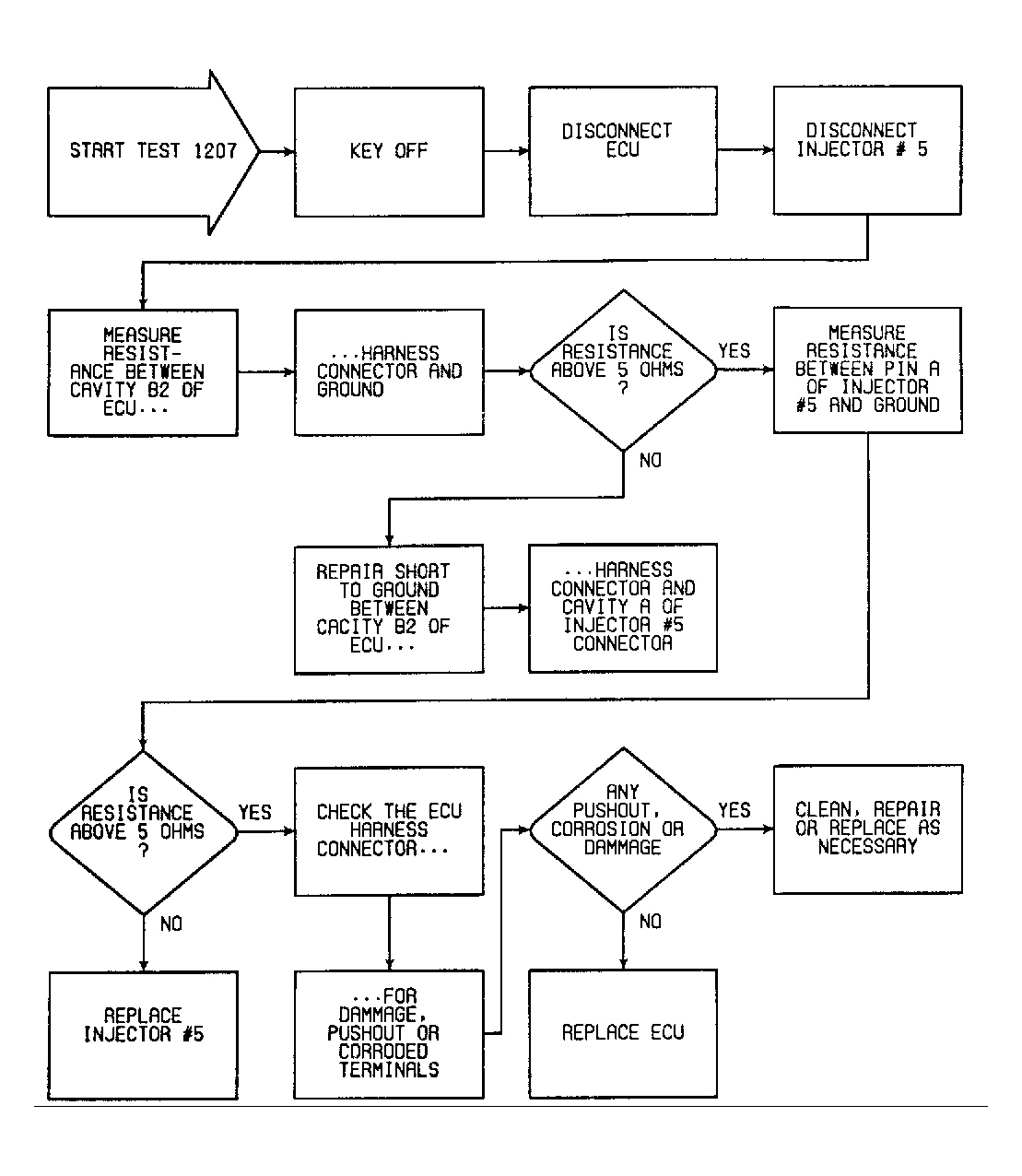

Fig 2: Fault 1207: Flow Chart No. 5 Injector Shorted to Ground
