Code 702: Speed Sensor

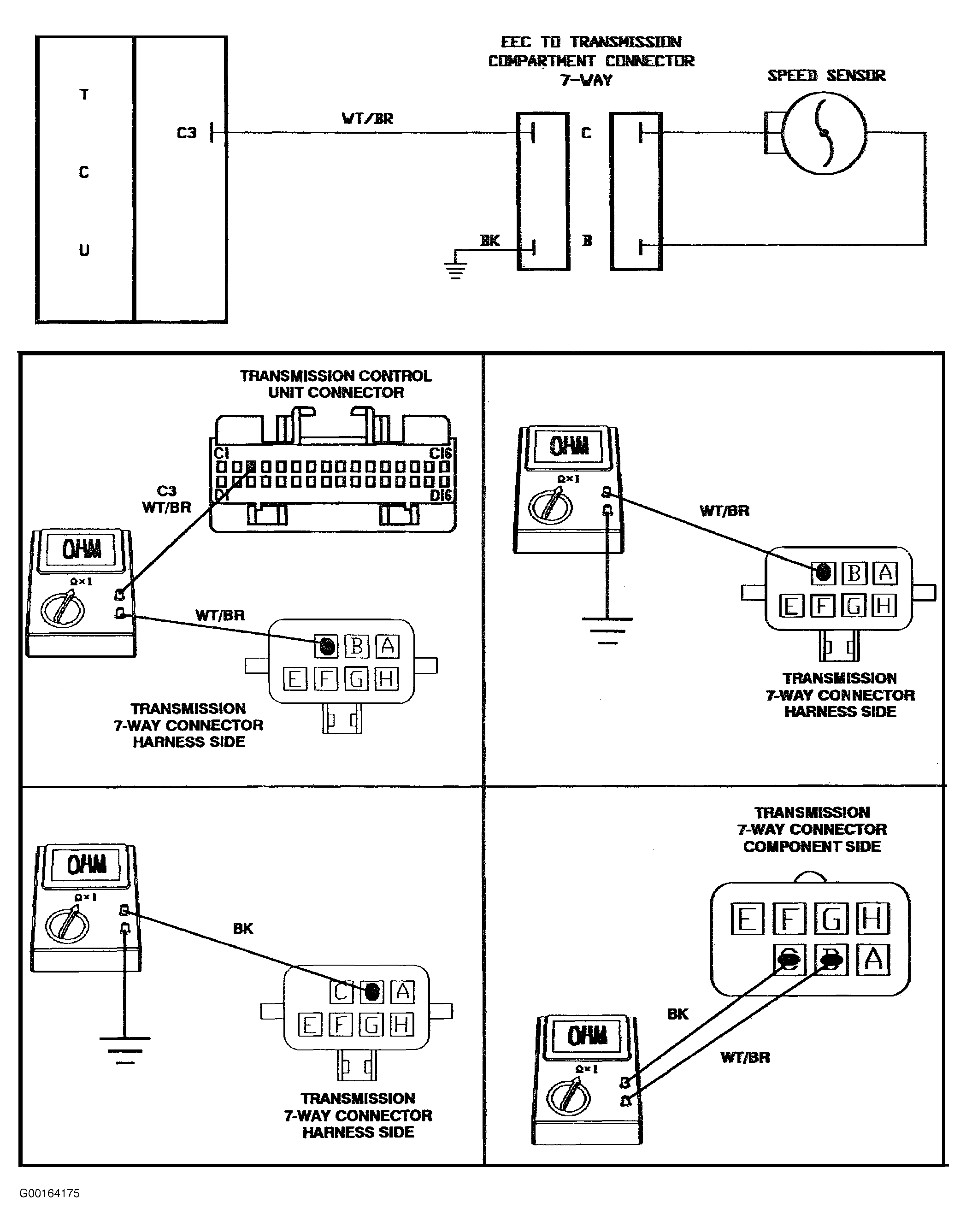

Fig 1: Code 702 - Speed Sensor (1 Of 2)
G00164175Courtesy of CHRYSLER CORP.

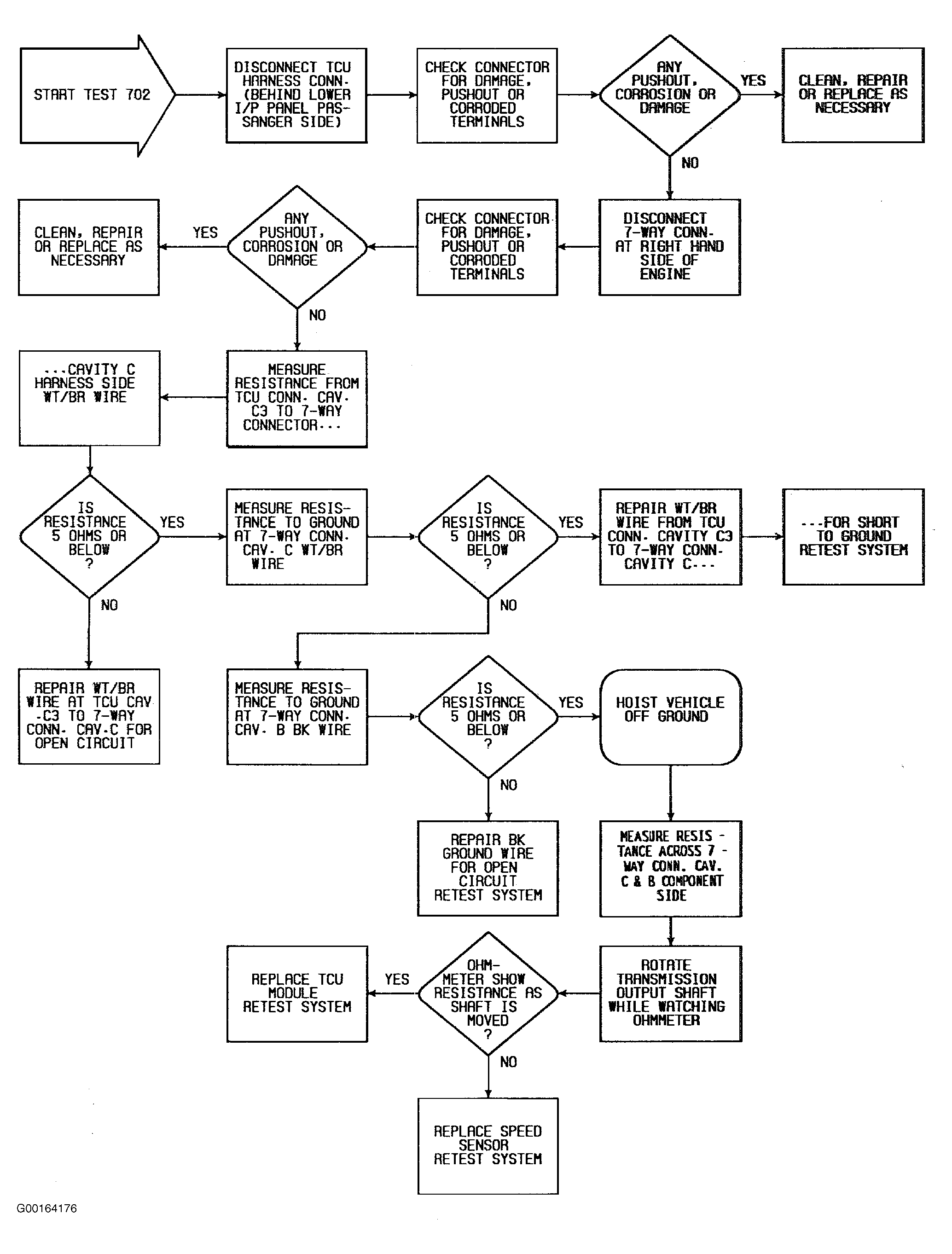

Fig 2: Code 702 - Speed Sensor (2 Of 2)
G00164176Courtesy of CHRYSLER CORP.
