Diagnostic Tests: Notes

NOTE: See Fig 1 to identify TCU connector terminals when diagnosing transmission.

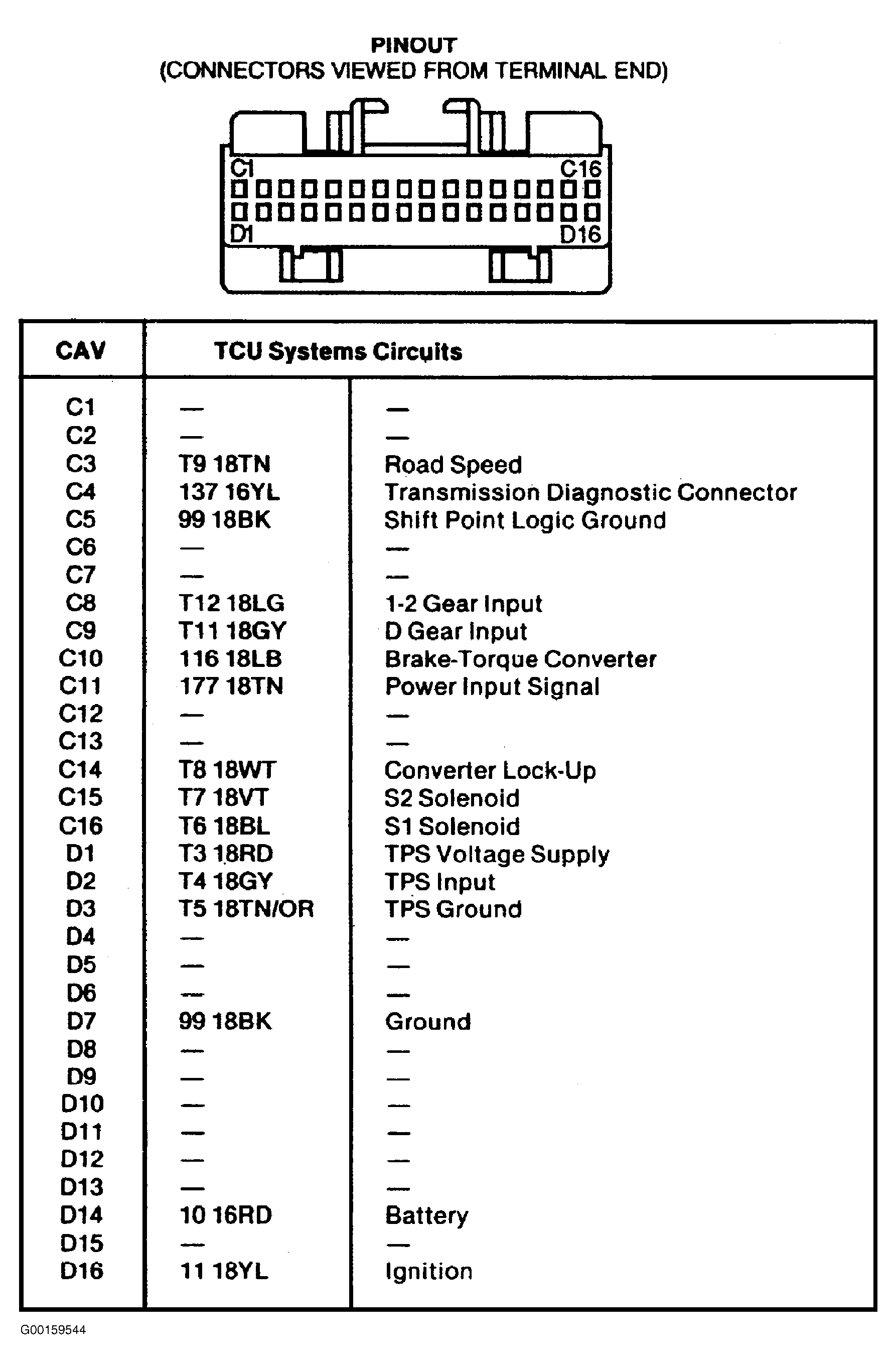

Fig 1: TCU Connector Terminal Identification
G00159544Courtesy of CHRYSLER CORP.
