Distributor R & I: Disassembly

1. With distributor removed from engine, remove rotor. Position distributor in a vise. Remove distributor gear from shaft using a small punch and hammer to drive out retaining roll pin. See Fig 1 . Remove distributor shaft from housing.

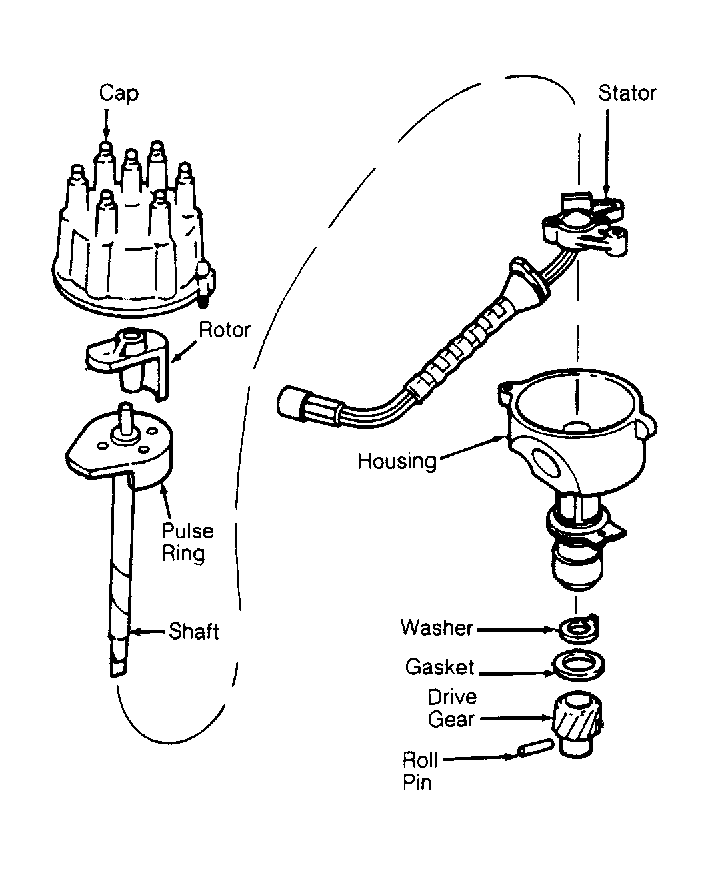

   Fig 1: Exploded View Of Distributor (4.0L)

   Courtesy of CHRYSLER MOTORS.
2. Remove stator retaining screw. See Fig 2 . Mark location of stator position for assembly reference. Remove stator harness by pushing grommet through housing. Remove stator assembly.

Fig 2: Stator Removal & Installation (4.0L)

Courtesy of CHRYSLER MOTORS.
