Fault 1020: No Sync Pulse Seen

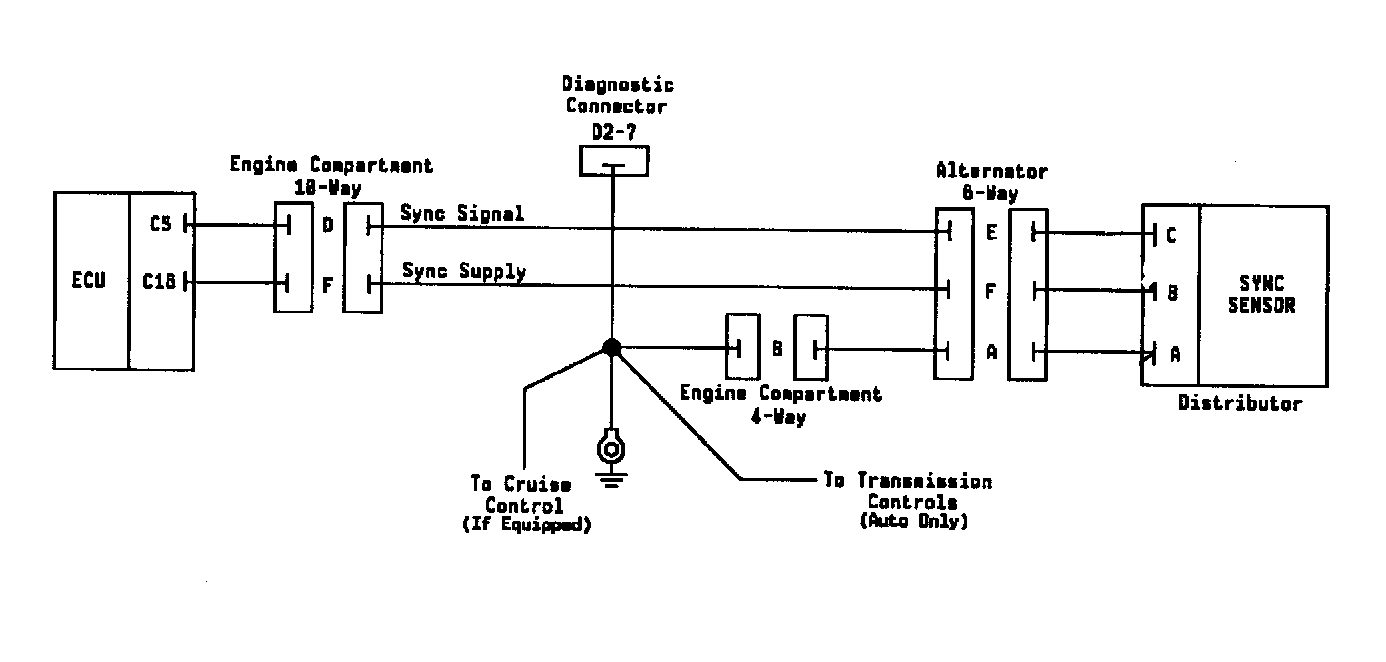

Fig 1: Fault 1020: Circuit Diagram No Sync Pulse Seen

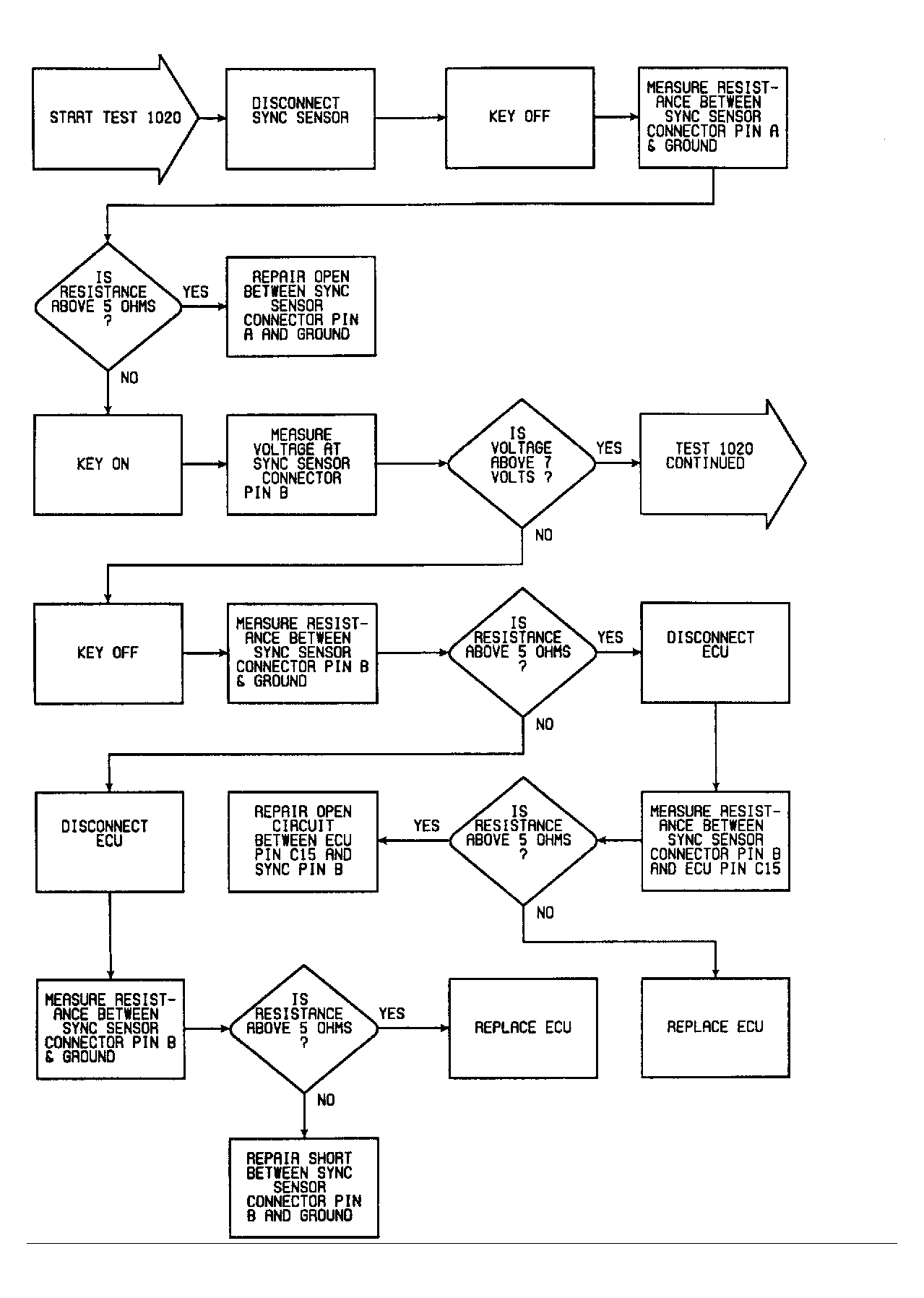

Fig 2: Fault 1020: Flow Chart No Sync Pulse Seen (1 of 3)

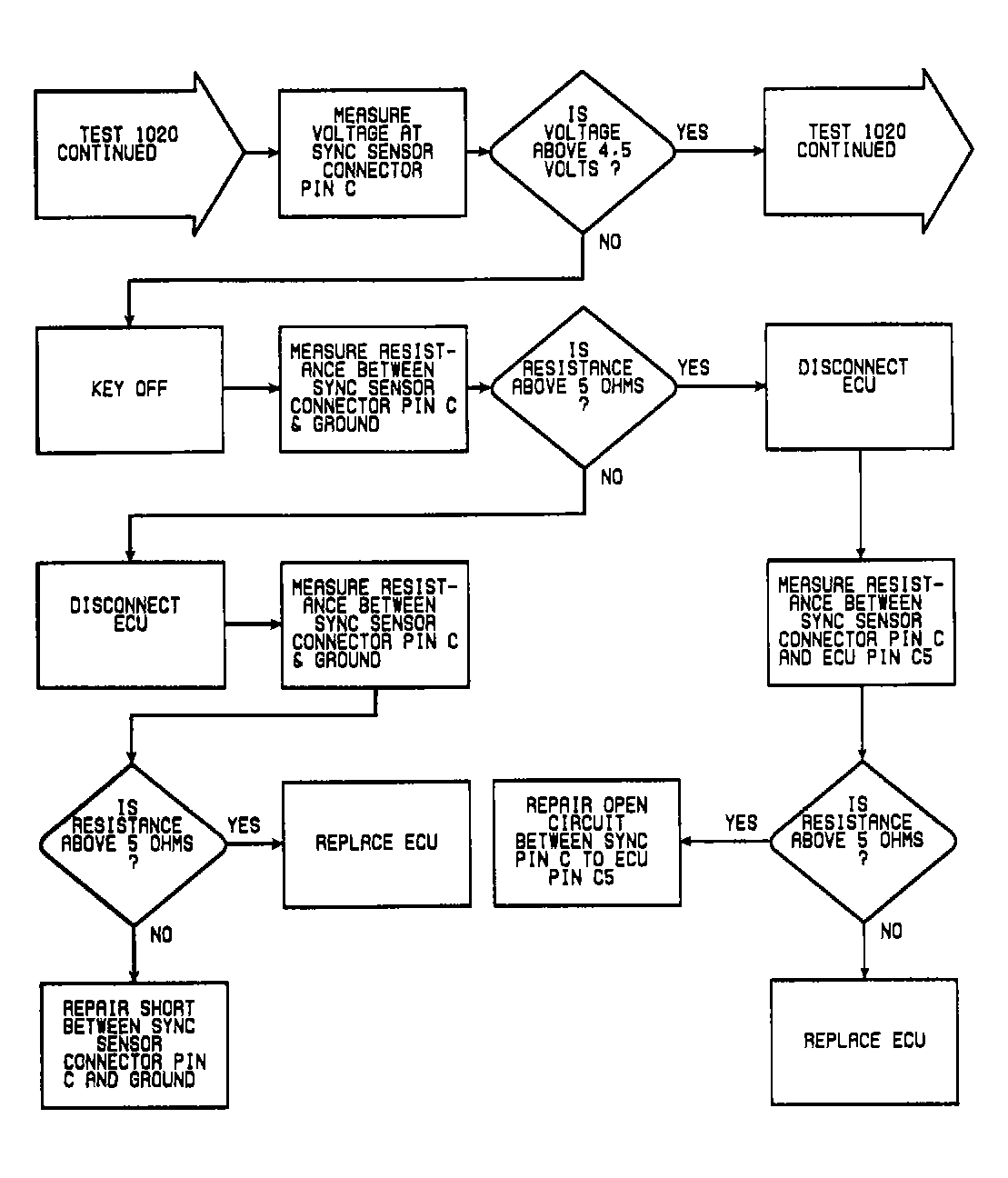

Fig 3: Fault 1020: Flow Chart No Sync Pulse Seen (2 of 3)

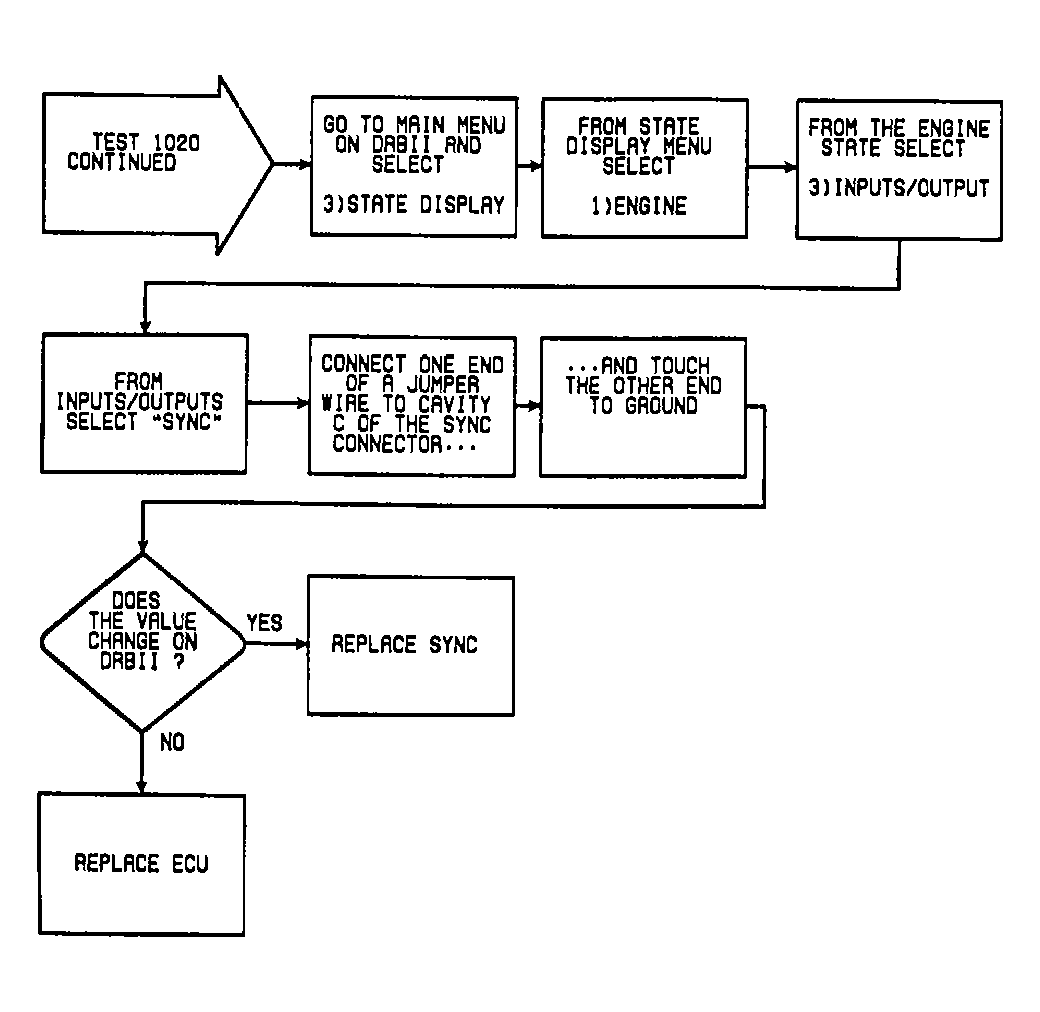

Fig 4: Fault 1020: Flow Chart No Sync Pulse Seen (3 of 3)
