Fault 1058: Knock Value Out Of Limits

Fig 1: Fault 1058: Circuit Diagram Knock Value Out of Limits

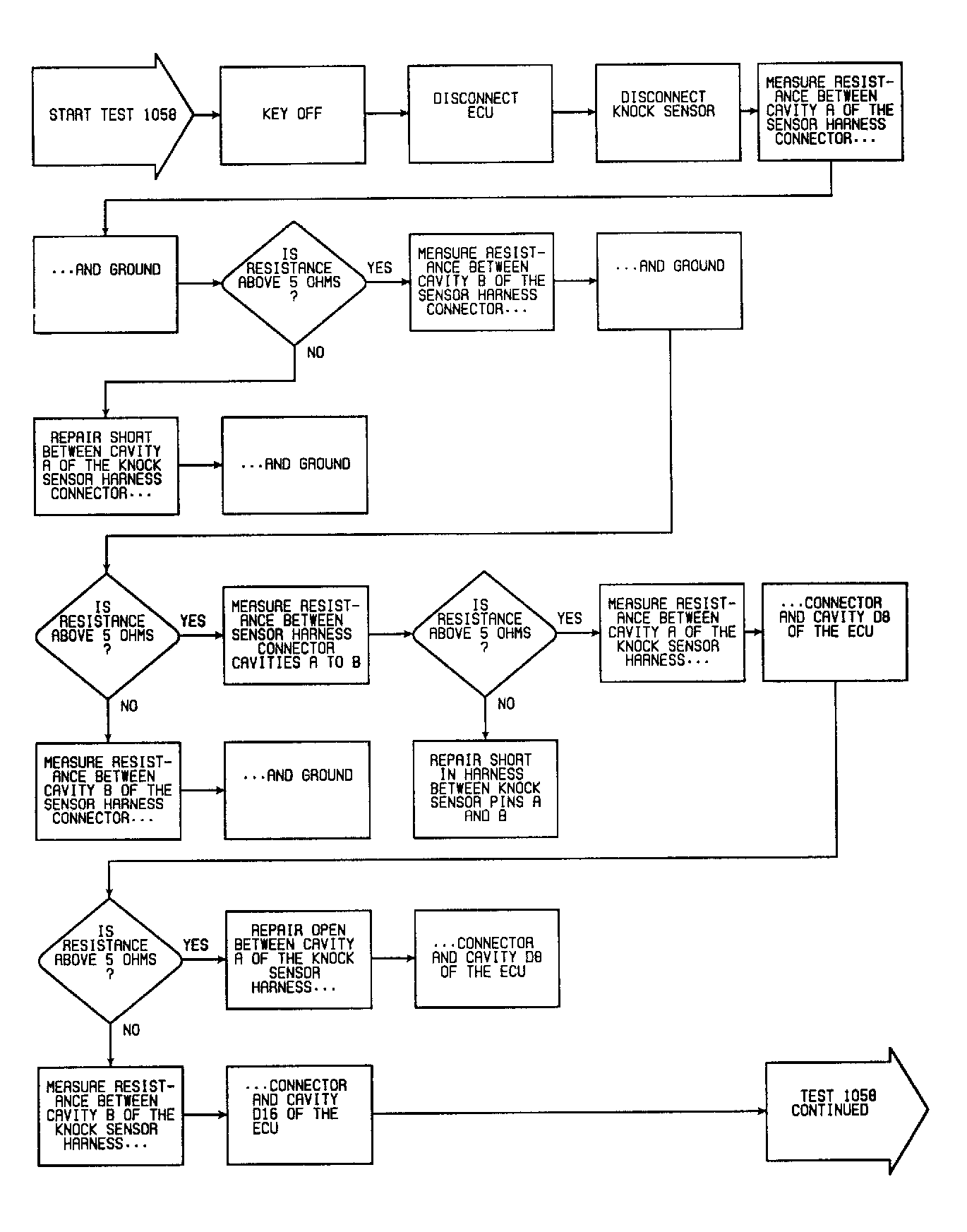

Fig 2: Fault 1058: Flow Chart Knock Value Out of Limits (1 of 2)

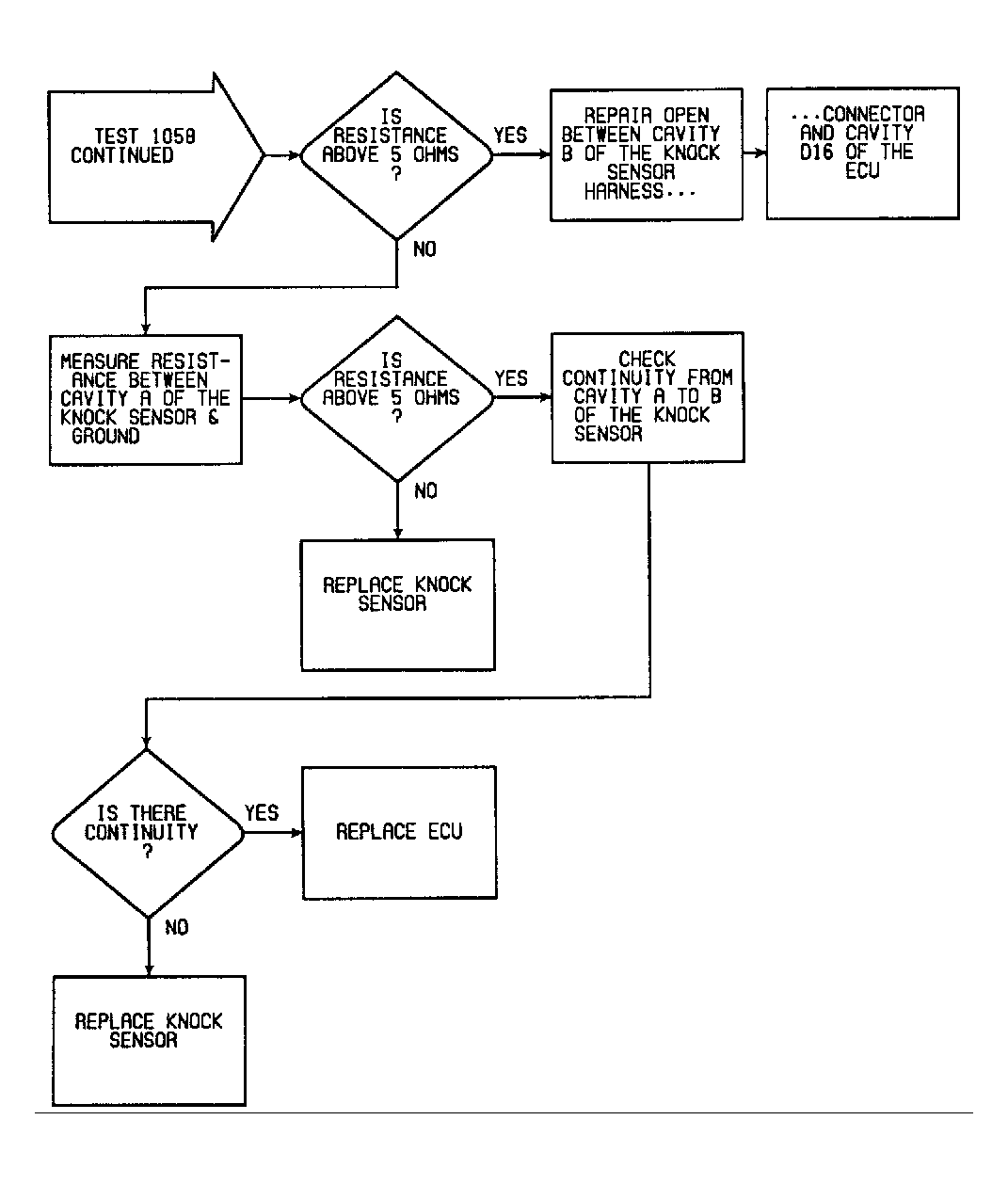

Fig 3: Fault 1058: Flow Chart Knock Value Out of Limits (2 of 2)
