Power Windows: Testing: Notes

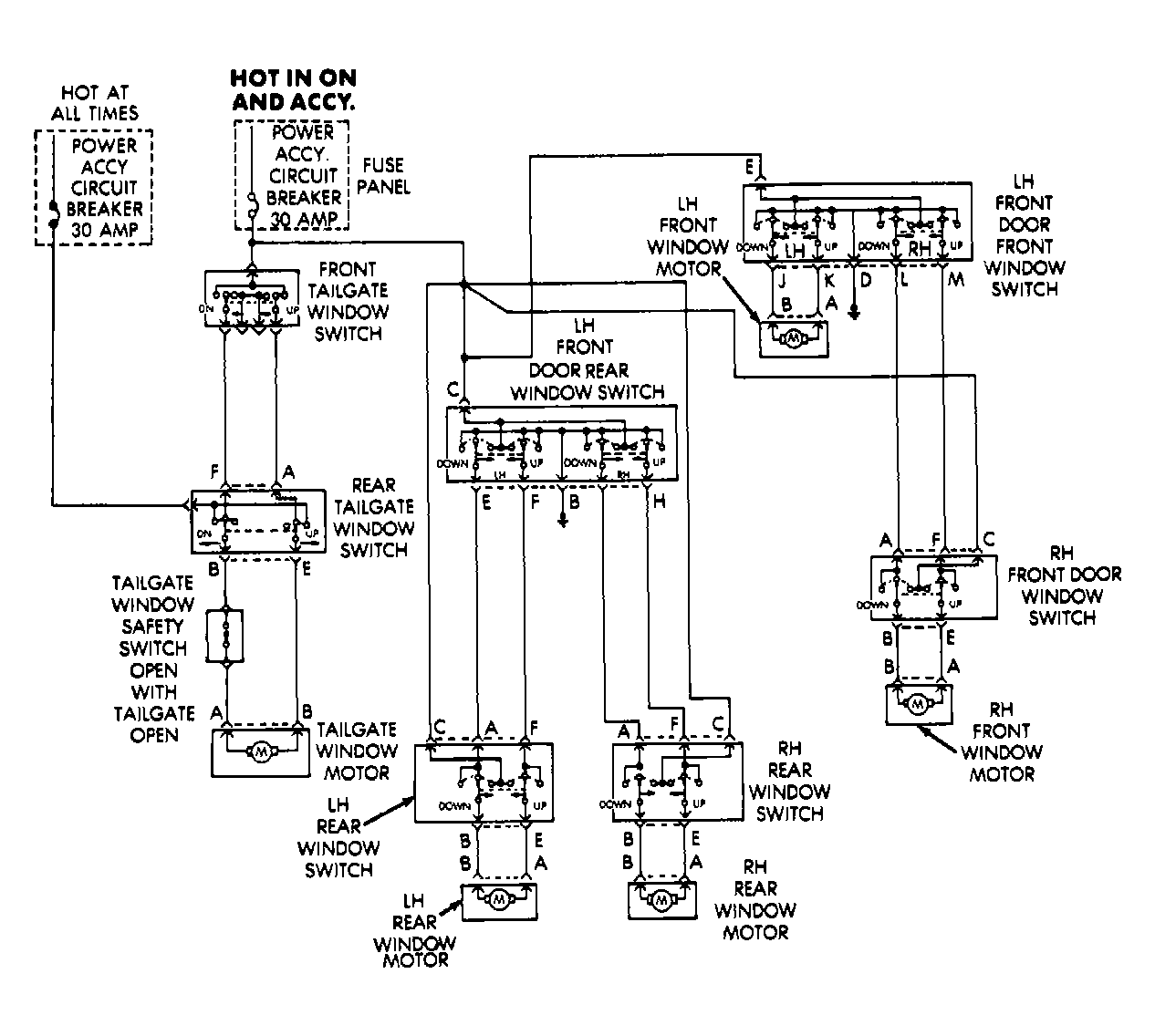

Fig 1: Grand Wagoneer Power Window Wiring Schematic
G90H14917Courtesy of CHRYSLER MOTORS.
