1989 Trouble Code Charts
›
Code 811 - Relay Fault
Code 811 - Relay Fault

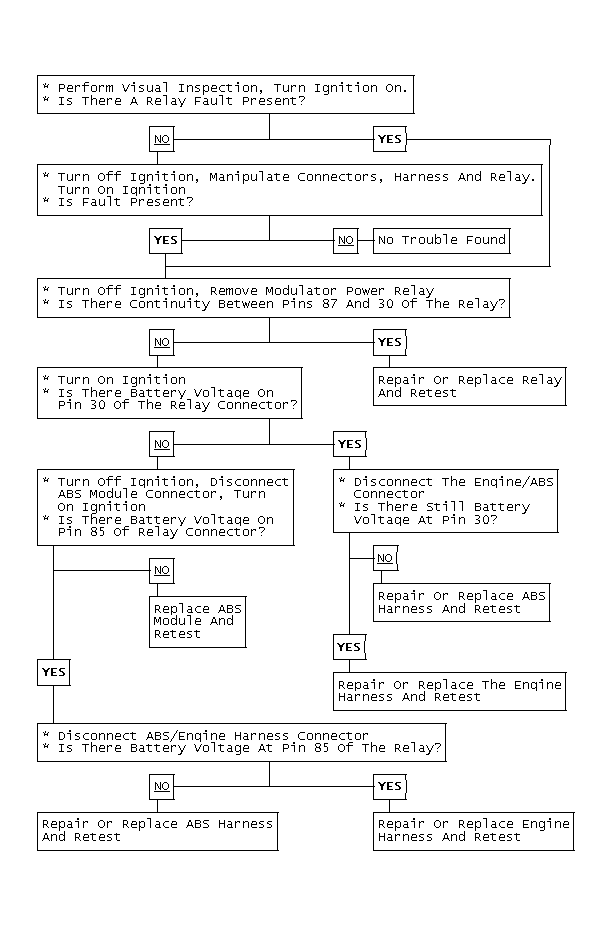

Fig 1: Code 811: Relay Fault

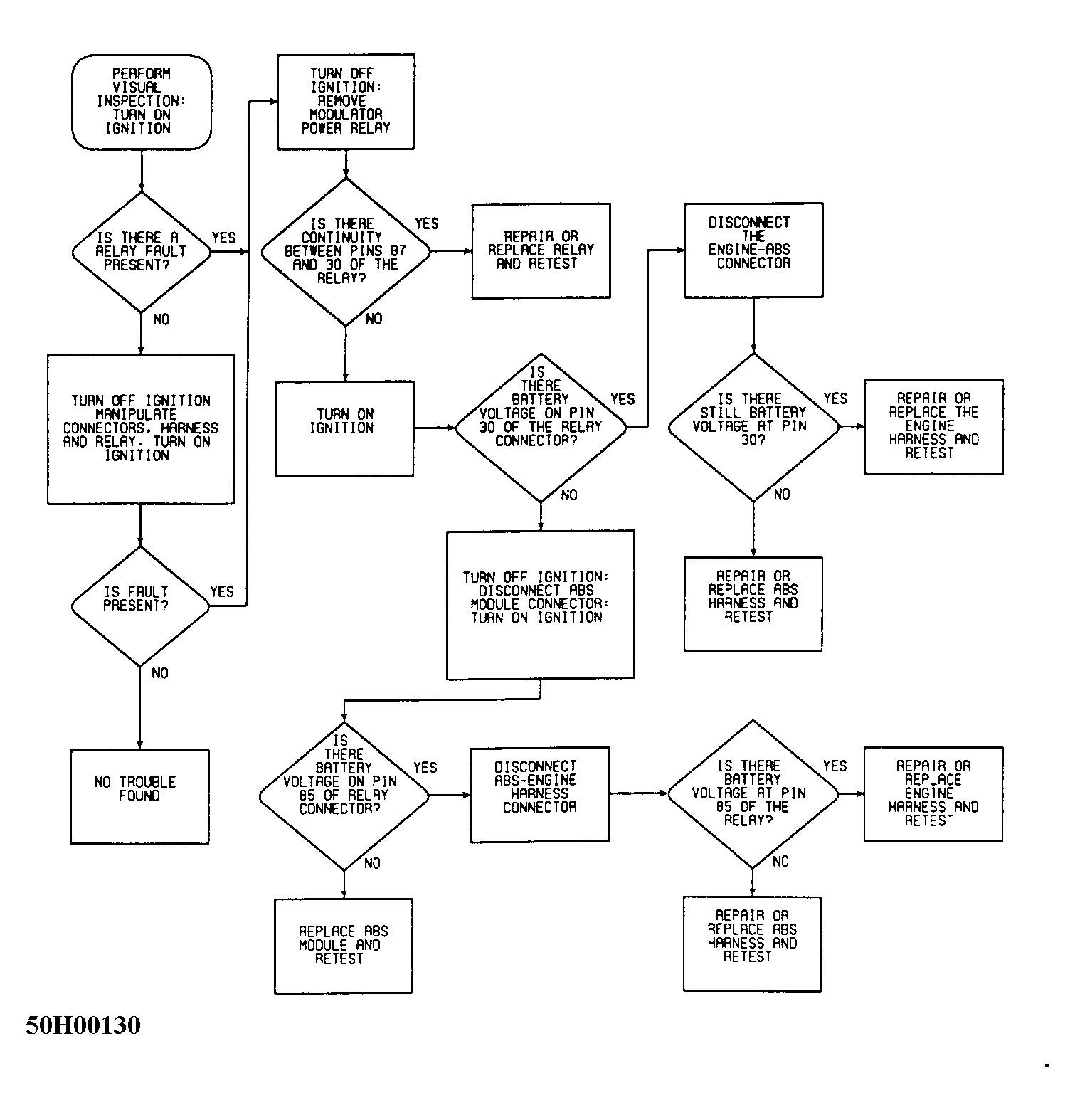

Fig 2: Code 811: Relay Fault
