Fault 1000: Ignition Circuit Low

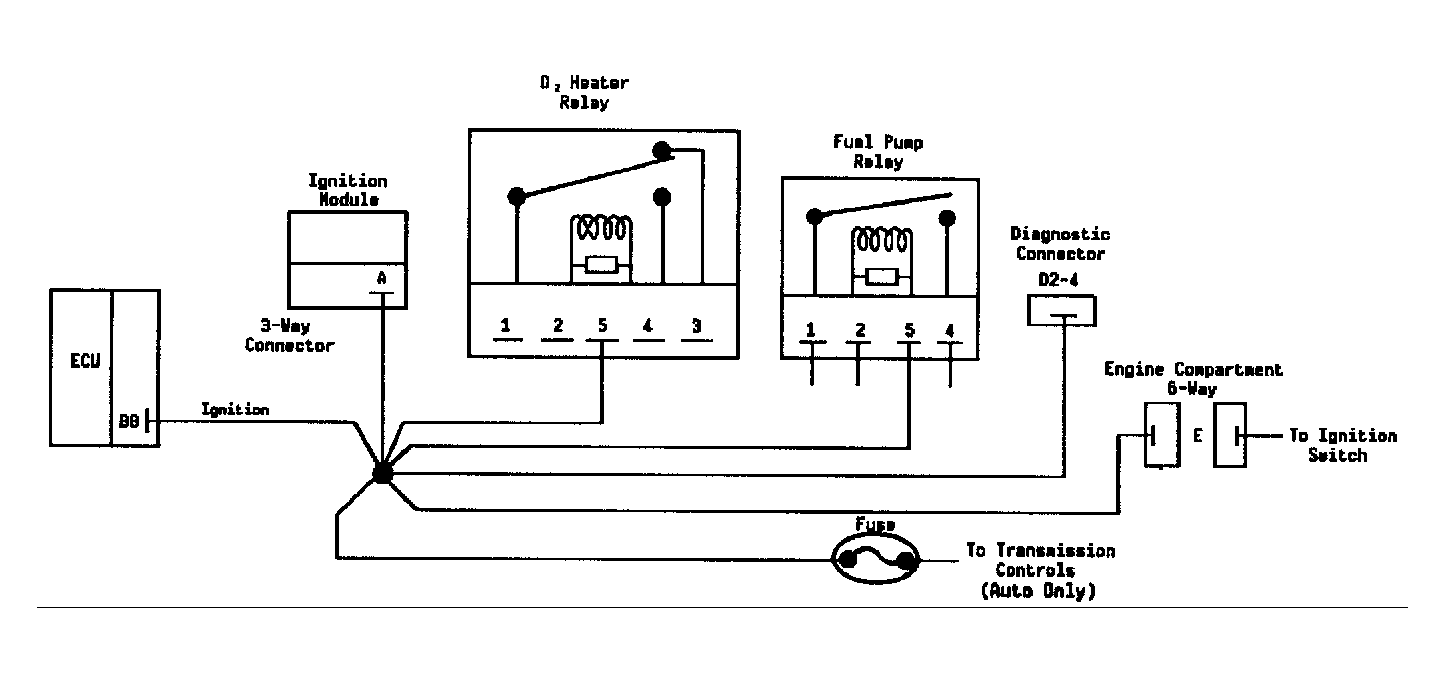

Fig 1: Fault 1000: Circuit Diagram Ignition Circuit Low

G90I17812

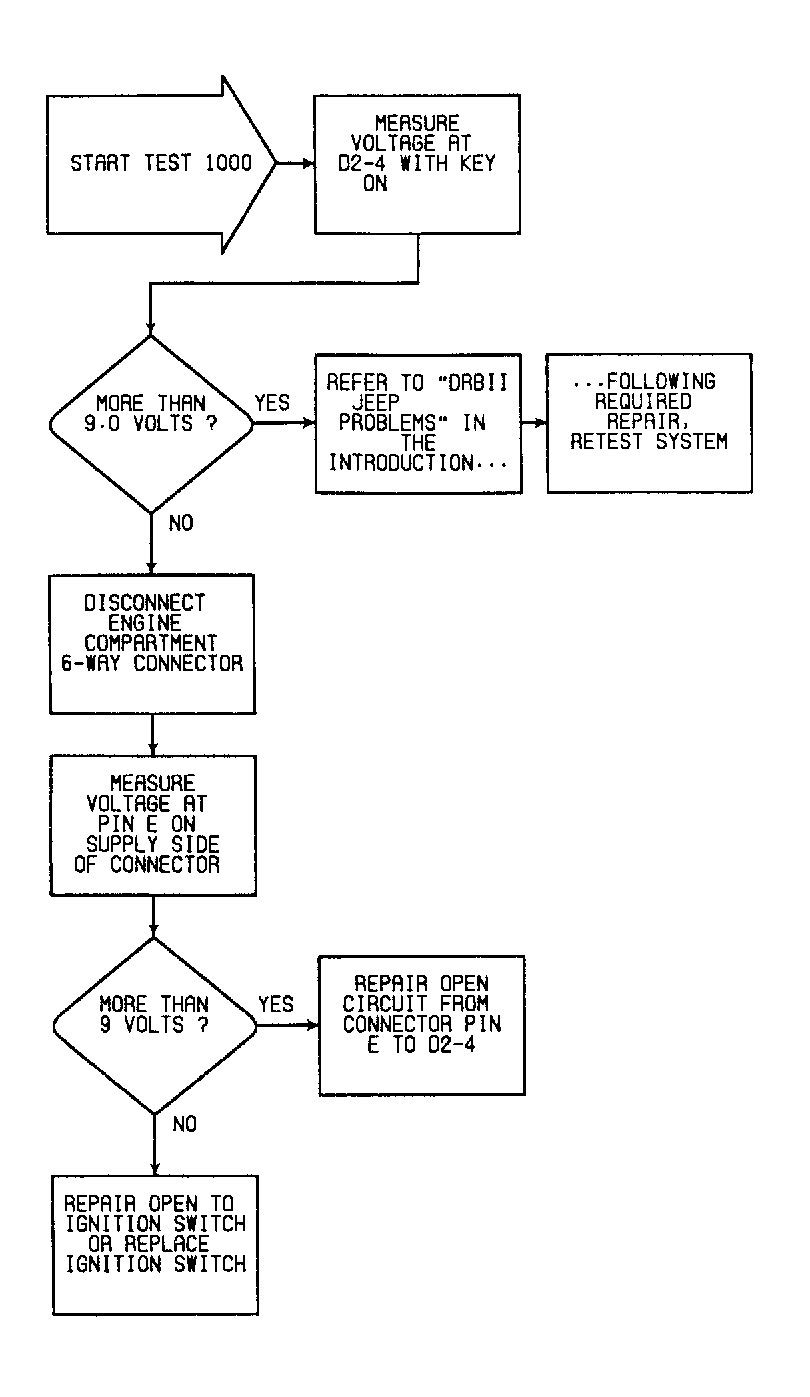

Fig 2: Fault 1000: Flow Chart Ignition Circuit Low

G90J17813
