Fault 1014: Fuel Pump Circuit Low

Fig 1: Fault 1014: Circuit Diagram Fuel Pump Circuit Low

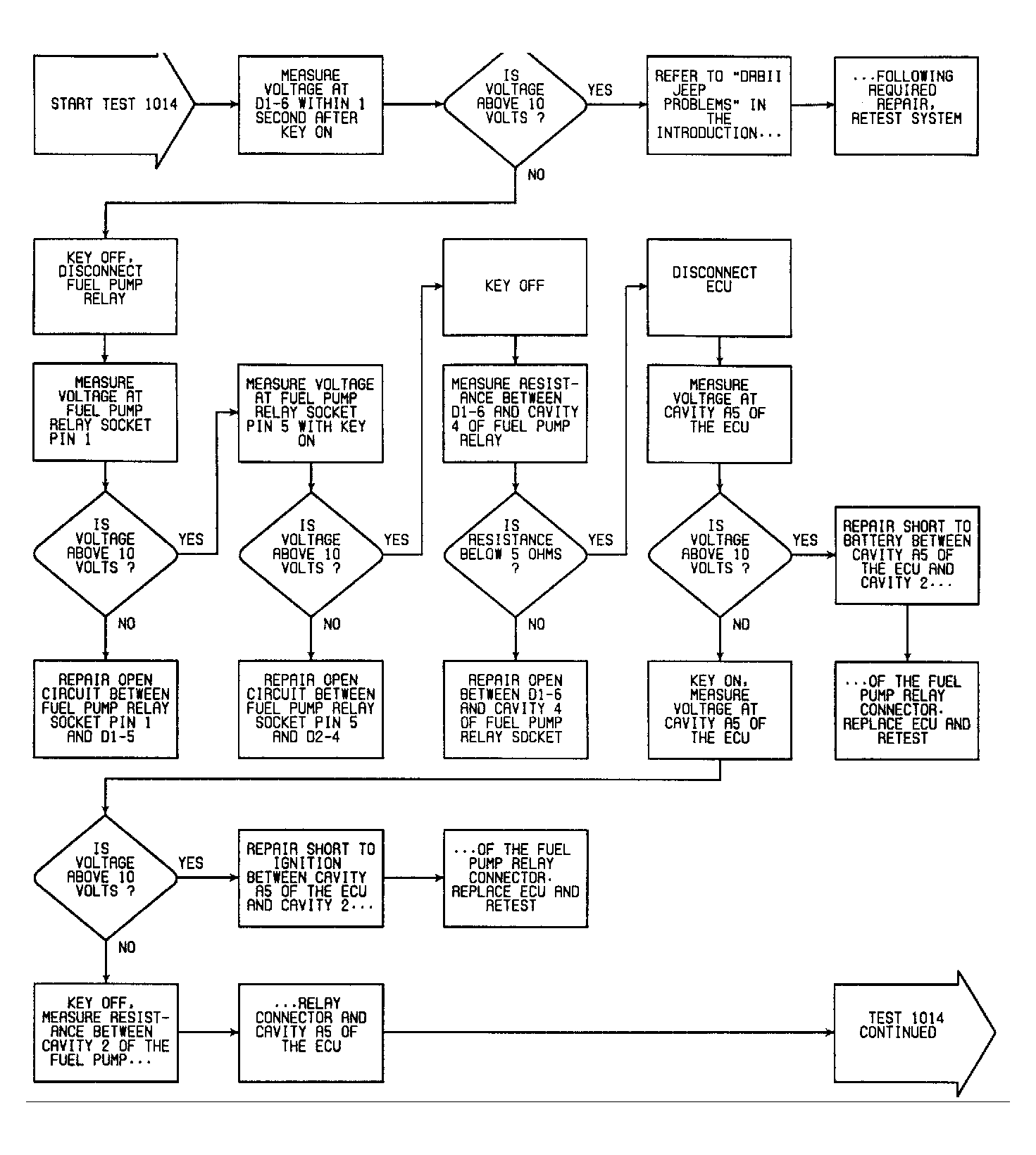

Fig 2: Fault 1014: Flow Chart Fuel Pump Circuit Low (1 Of 2)

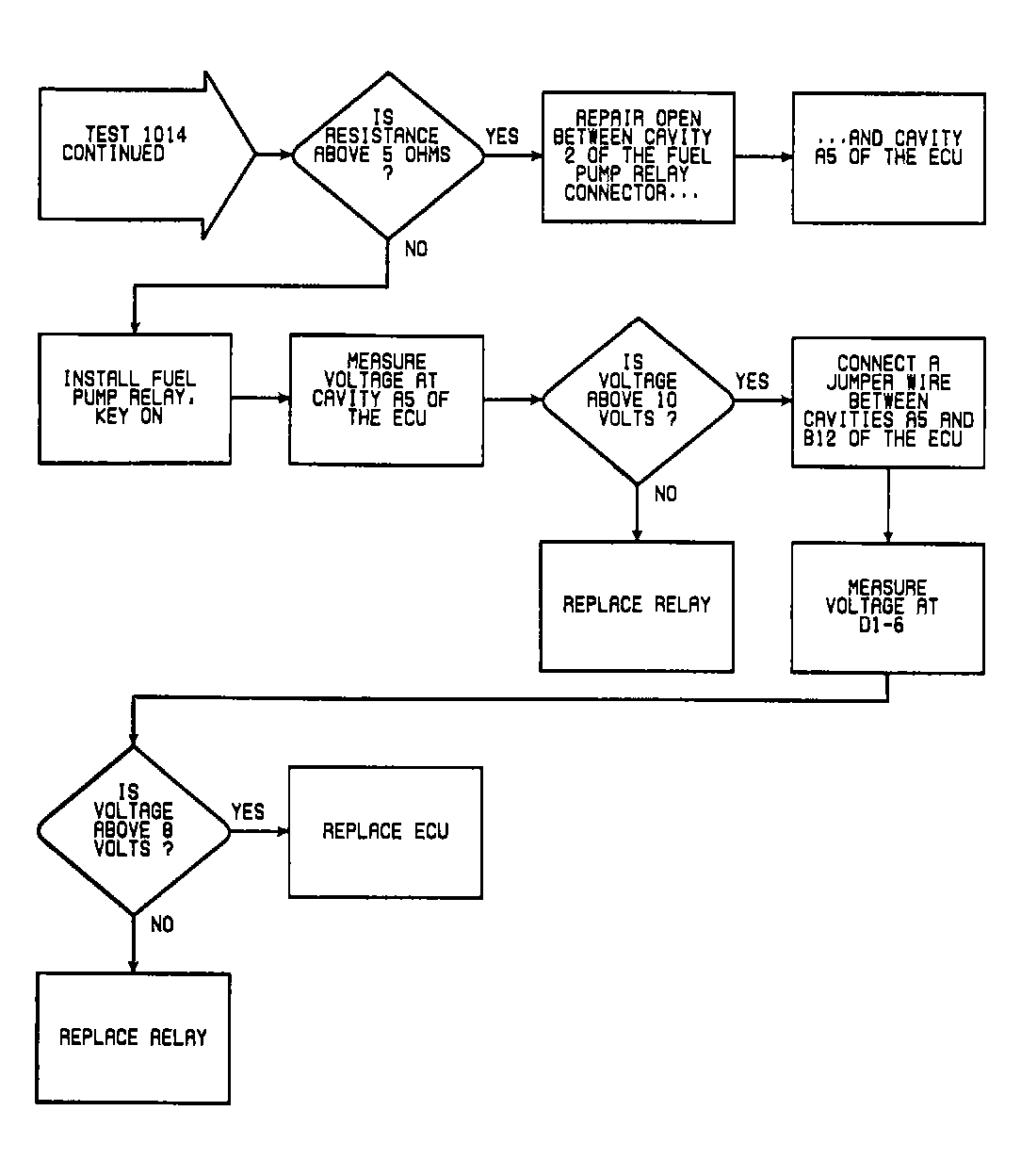

Fig 3: Fault 1014: Flow Chart Fuel Pump Circuit Low (2 Of 2)
