Fault 1015: Fuel Pump Circuit High

Fig 1: Fault 1015: Circuit Diagram Fuel Pump Circuit High

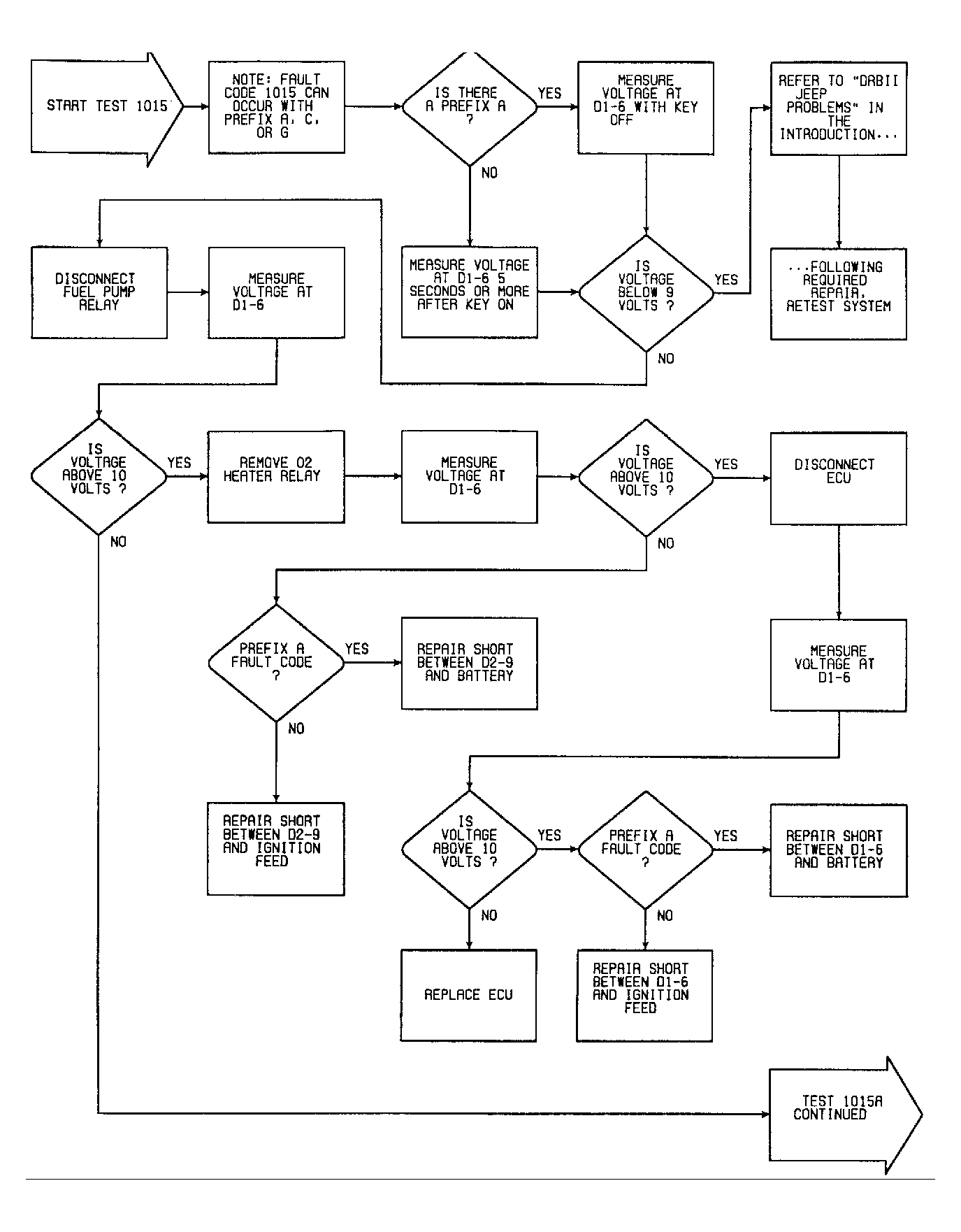

Fig 2: Fault 1015: Flow Chart Fuel Pump Circuit High (1 Of 2)

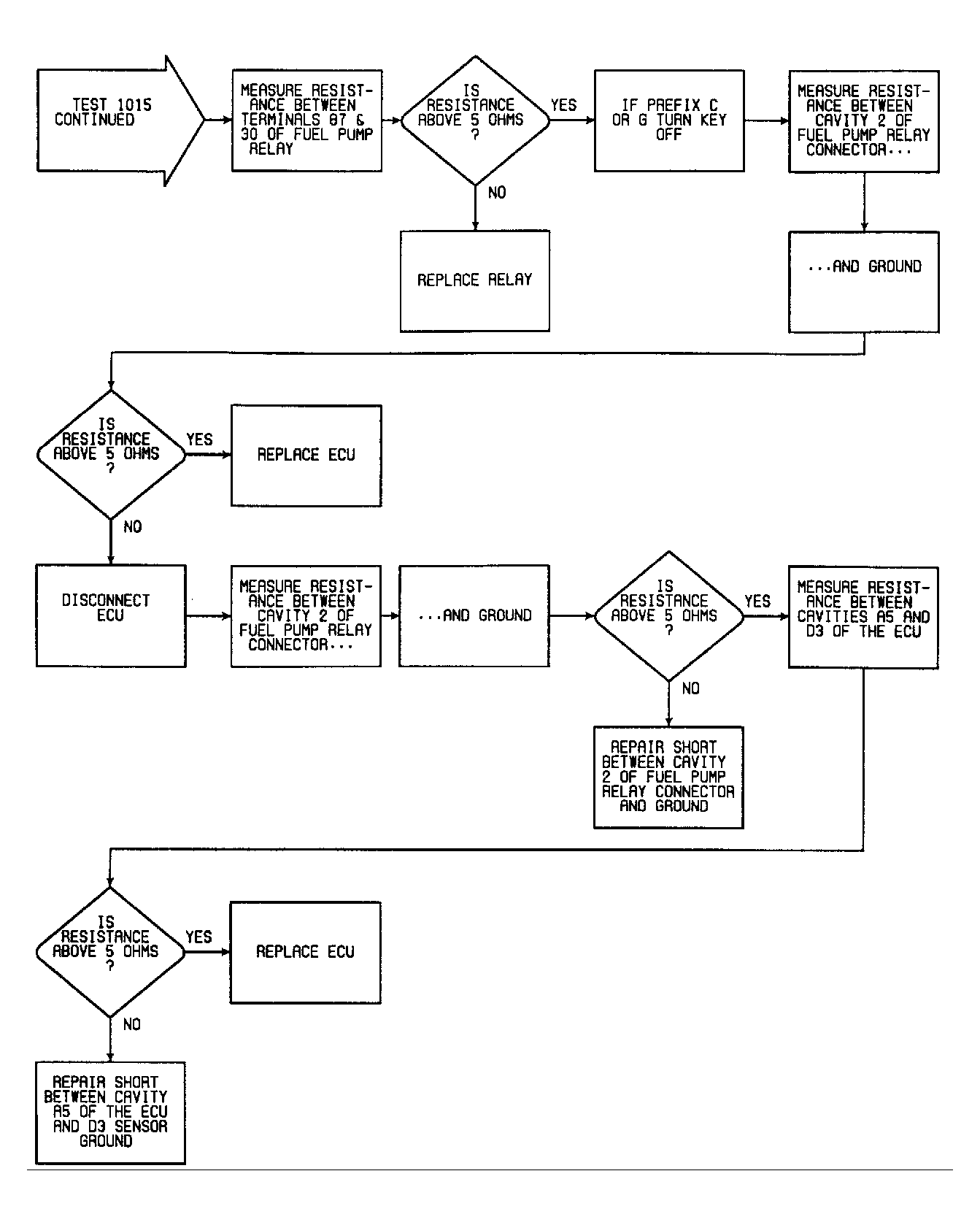

Fig 3: Fault 1015: Flow Chart Fuel Pump Circuit High (2 Of 2)
