Fault 1053: Change In Map Reading Out Of Limits

Fig 1: Fault 1053: Circuit Diagram Change in MAP Reading Out of Limits

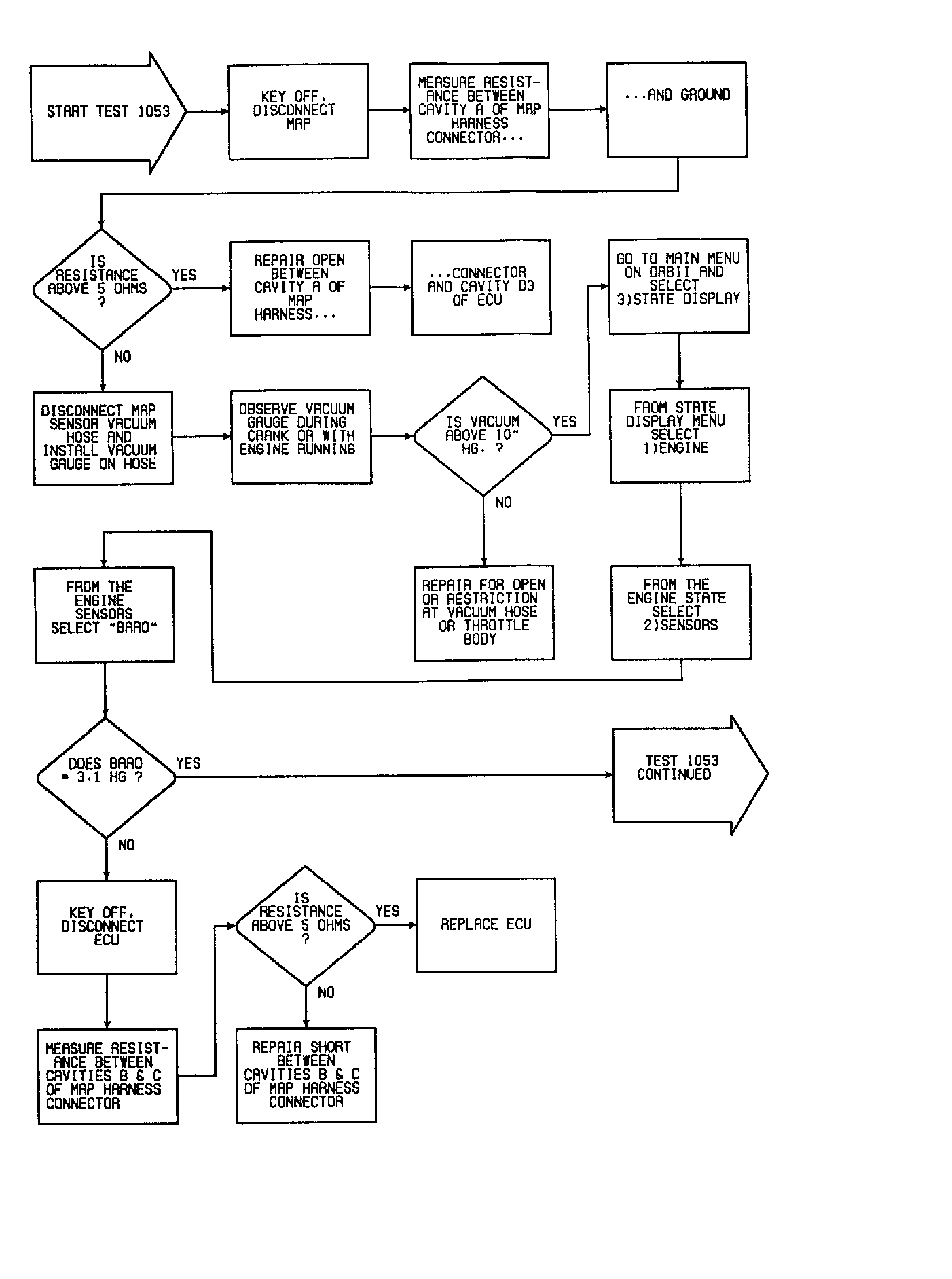

Fig 2: Fault 1053: Flow Chart Change in MAP Reading Out of Limits (1 of 2)

Fig 3: Fault 1053: Flow Chart Change in MAP Reading Out of Limits (2 of 2)
