Fault 1061: A/C Select Circuit Low

Fig 1: Fault 1061: Circuit Diagram A/C Select Circuit Low

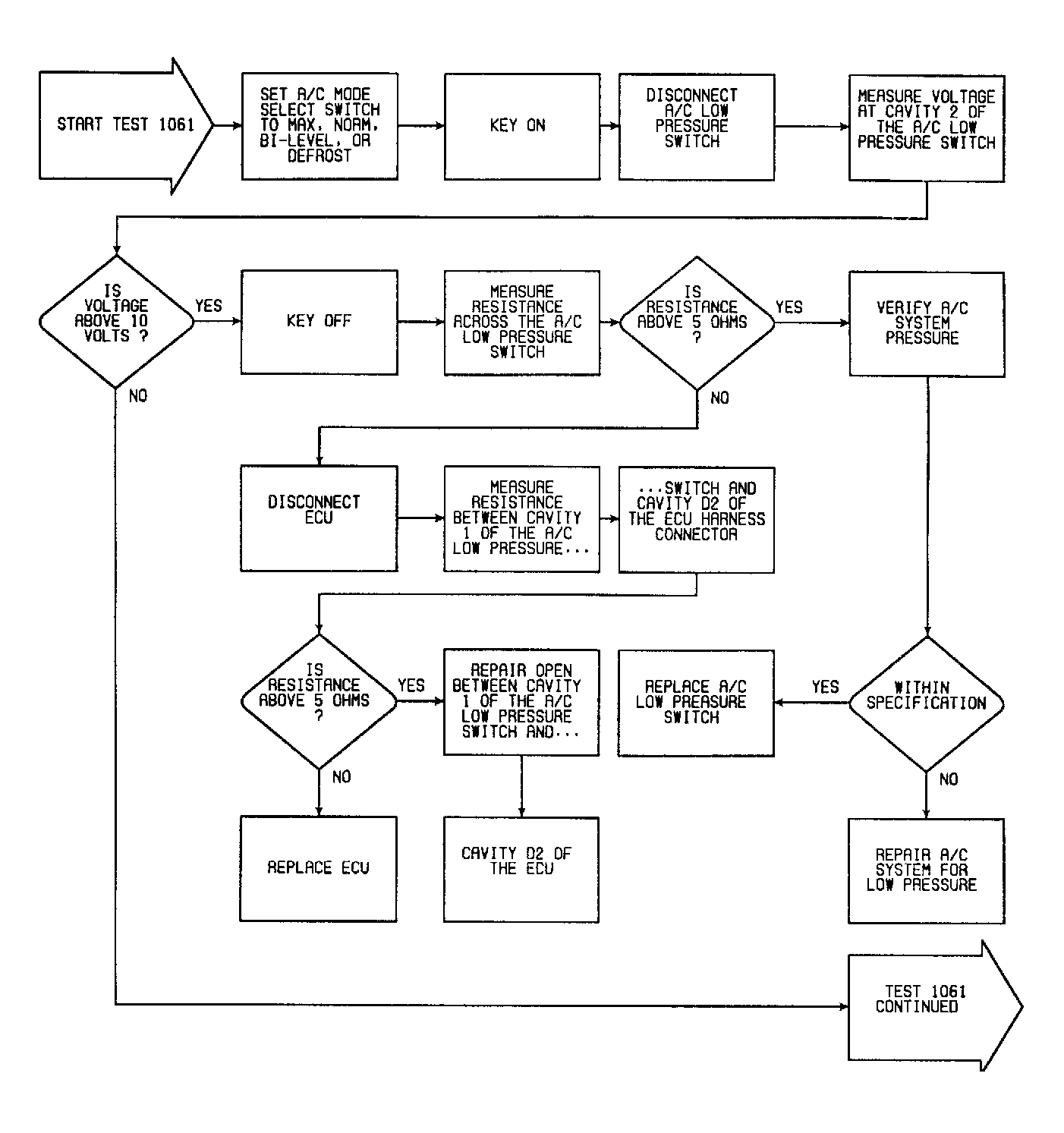

Fig 2: Fault 1061: Flow Chart A/C Select Circuit Low (1 of 2)

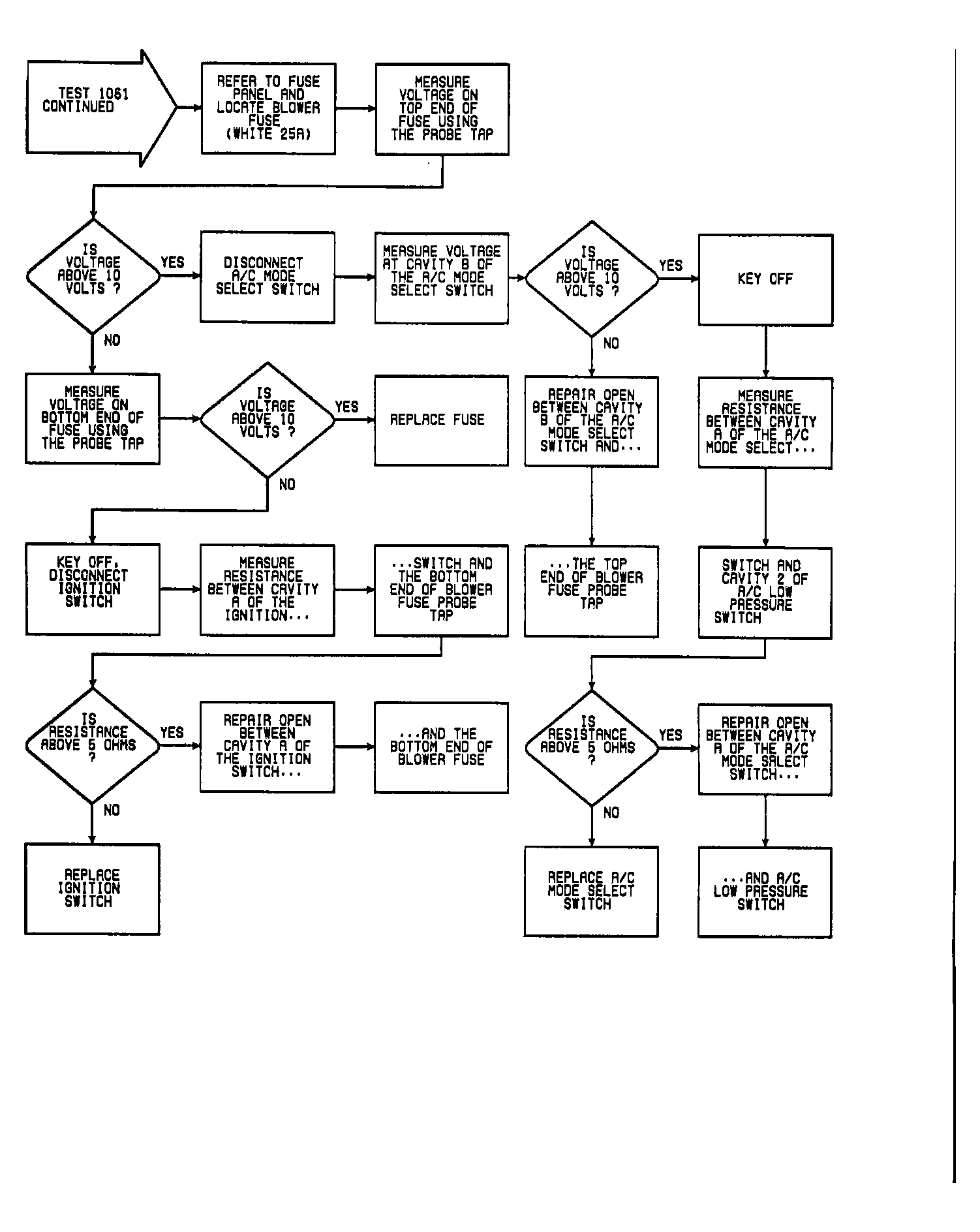

Fig 3: Fault 1061: Flow Chart A/C Select Circuit Low (2 of 2)
