Fault 1062: A/C Select Circuit High

Fig 1: Fault 1062: Circuit Diagram A/C Select Circuit High

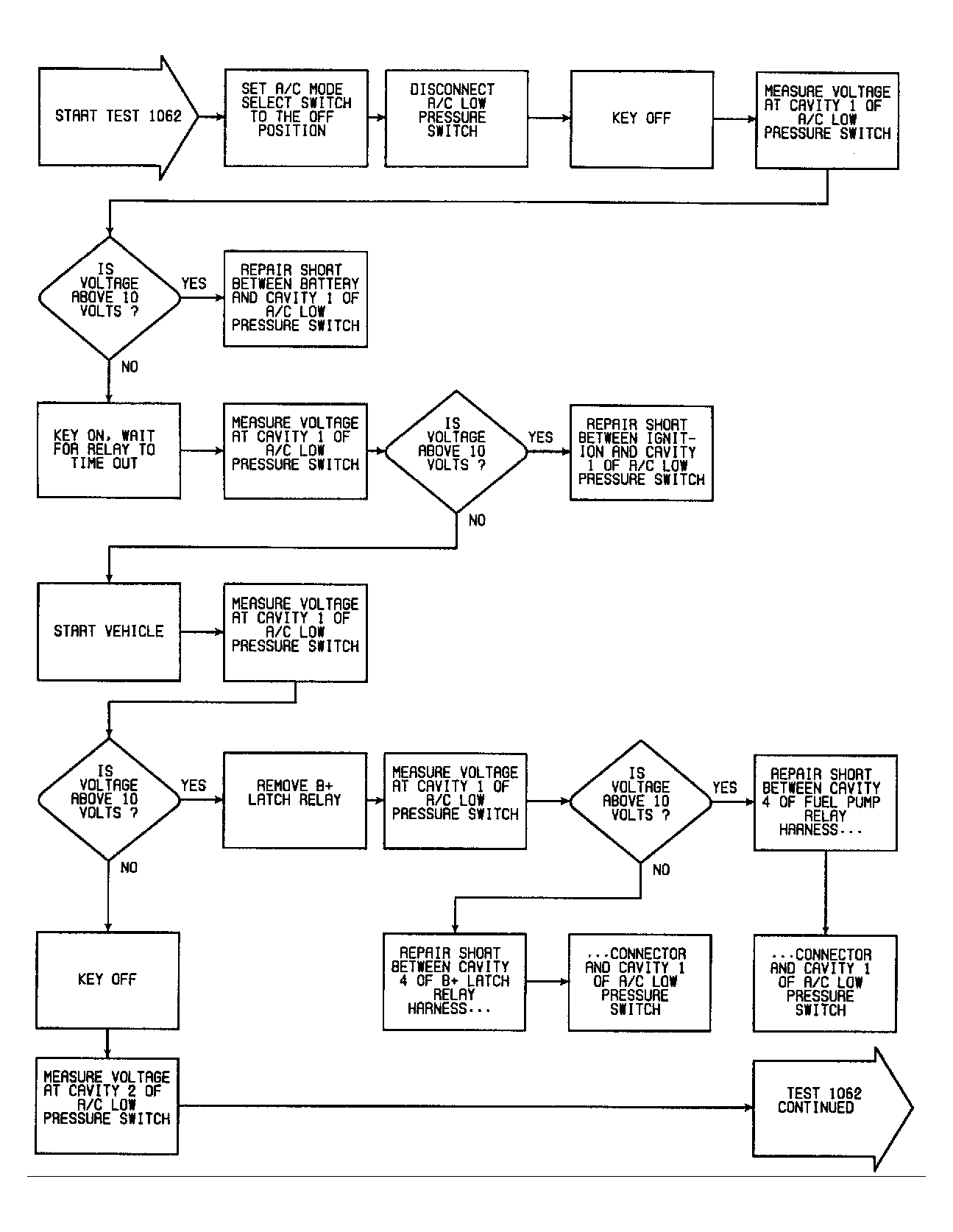

Fig 2: Fault 1062: Flow Chart A/C Select Circuit High (1 of 3)

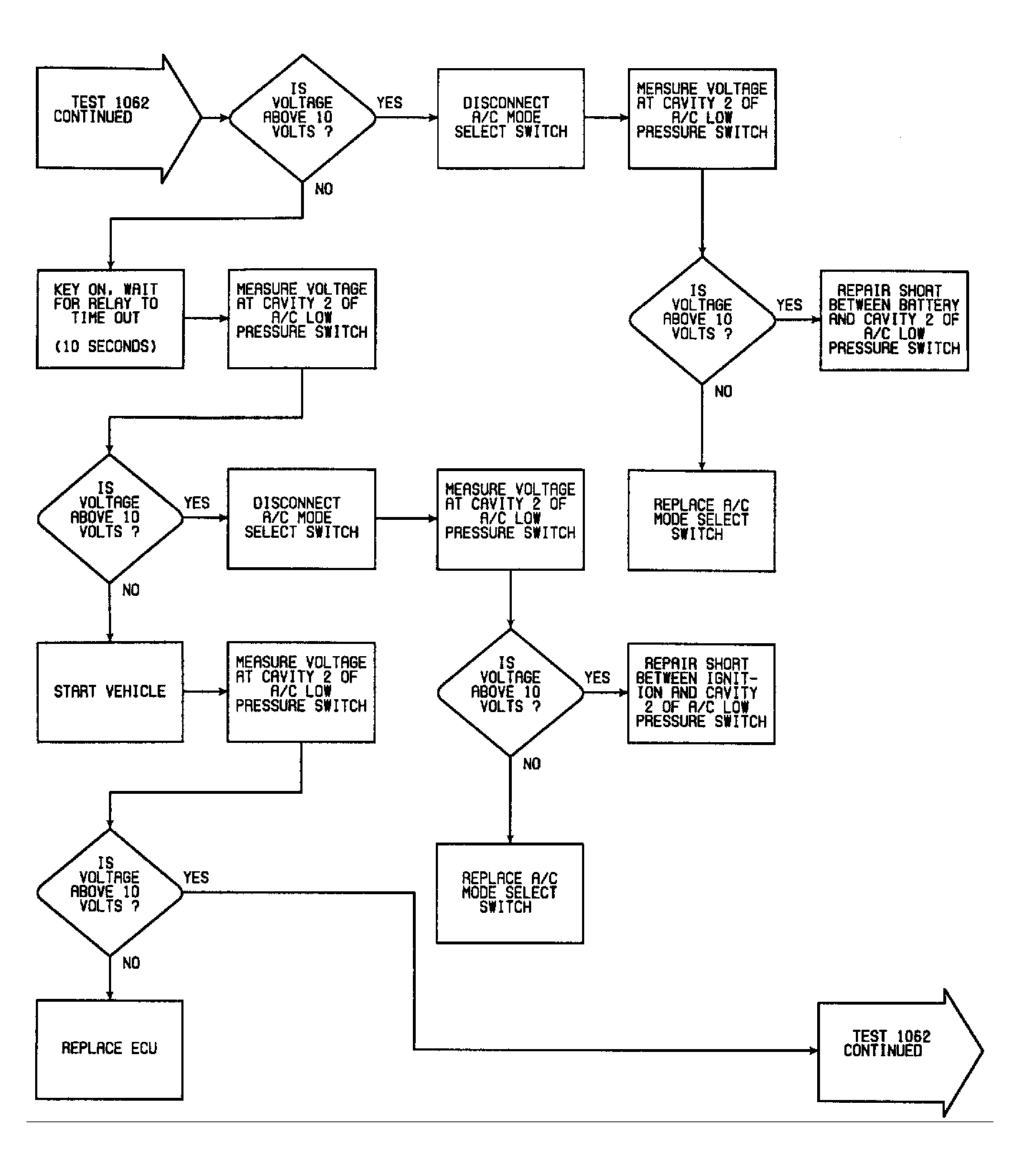

Fig 3: Fault 1062: Flow Chart A/C Select Circuit High (2 of 3)

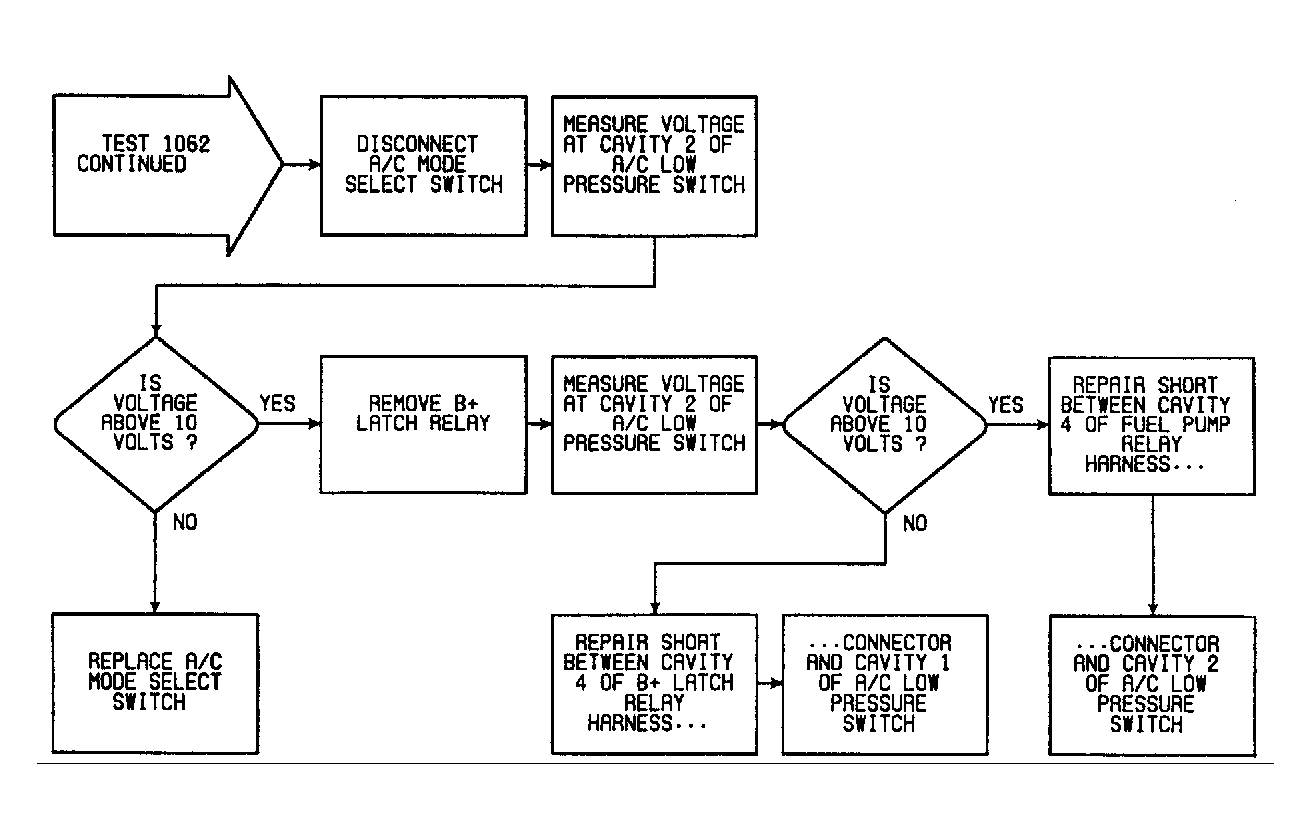

Fig 4: Fault 1062: Flow Chart A/C Select Circuit High (3 of 3)
