Fault 1066: O2 Sensor Reads Lean

NOTE: For additional oxygen sensor information, see TITANIA OXYGEN SENSOR TESTING article.

Fig 1: Fault 1066: Circuit Diagram O2 Sensor Reads Lean

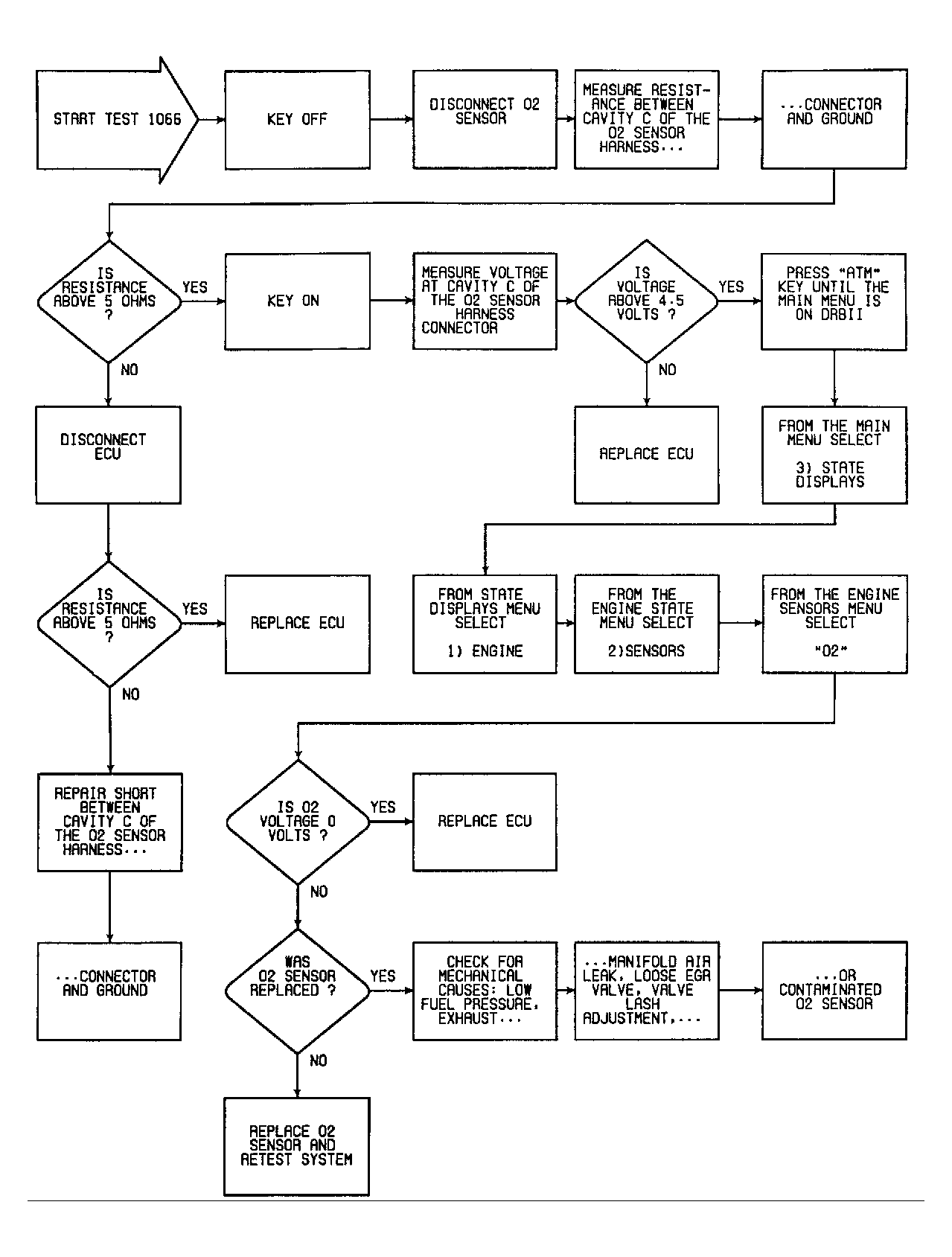

Fig 2: Fault 1066: Flow Chart O2 Sensor Reads Lean
