Fault 1223: Checking For Open Injector Feed Circuit

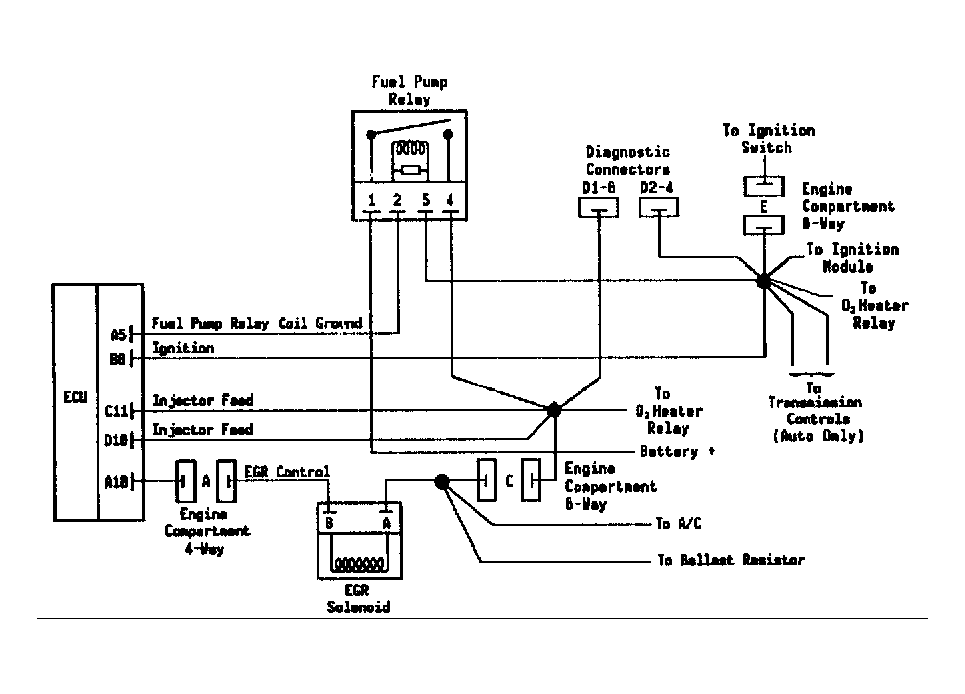

Fig 1: Fault 1223: Circuit Diagram Checking For Open Injector Feed Circuit

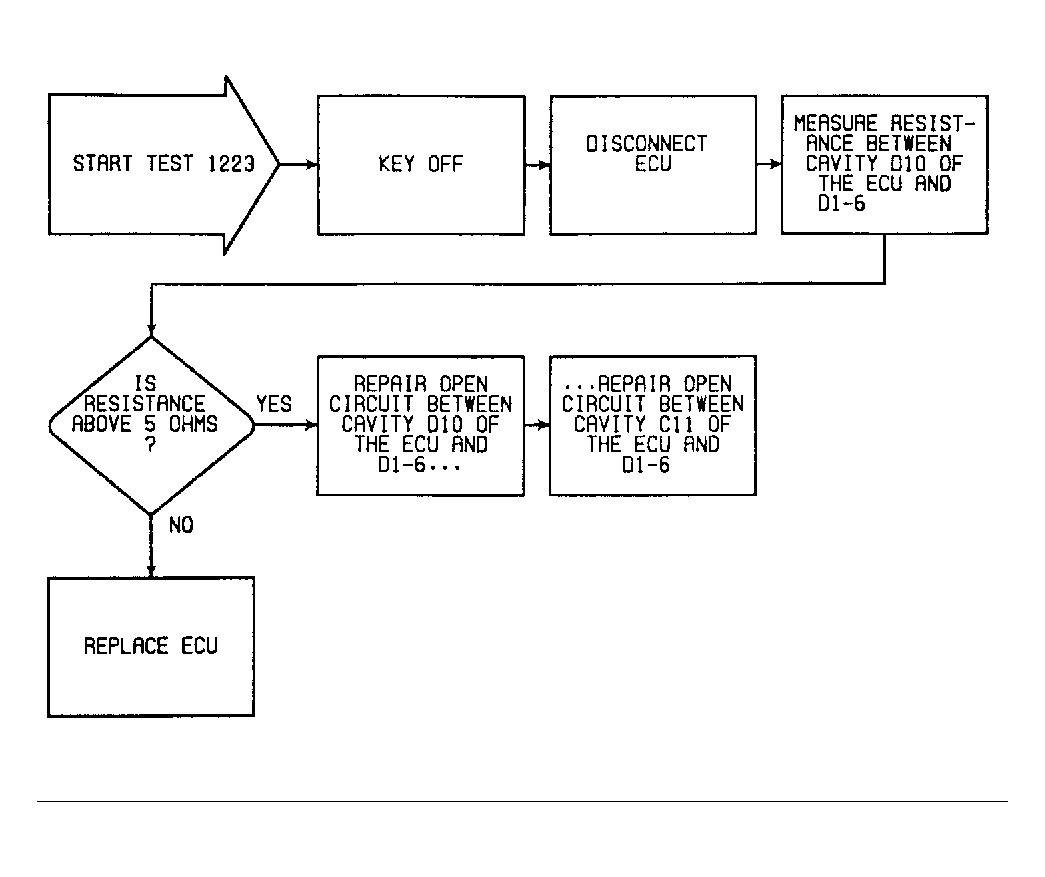

Fig 2: Fault 1223: Flow Chart Checking For Open Injector Feed Circuit
