Idle Speed

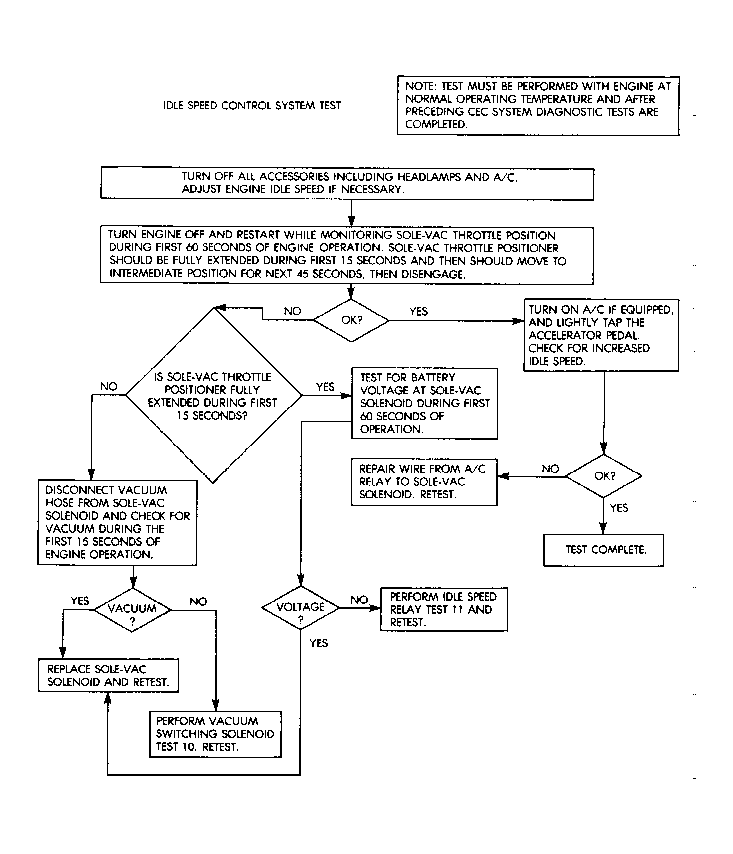

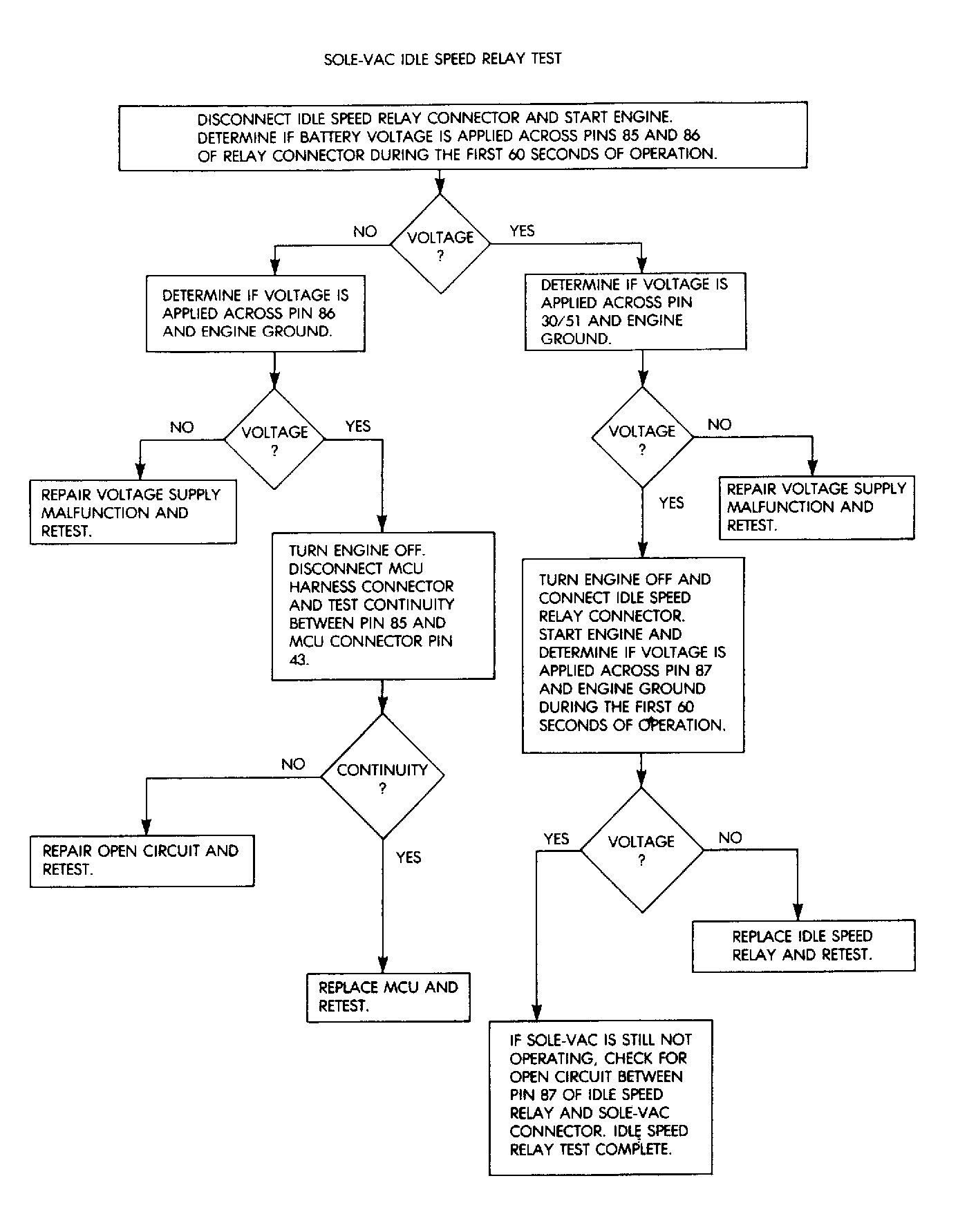

On 4.2L engine, idle speed is controlled by MCU through the stepper motor, sole-vac throttle positioner, and idle relay. See Figure
-Figure
.
Idle speed on 5.9L is controlled by mechanical adjustments. See ADJUSTMENTS
article.
NOTE:
For basic ignition checks, see BASIC TESTING
article.
