Dr-27B: Checking Fuel Pressure

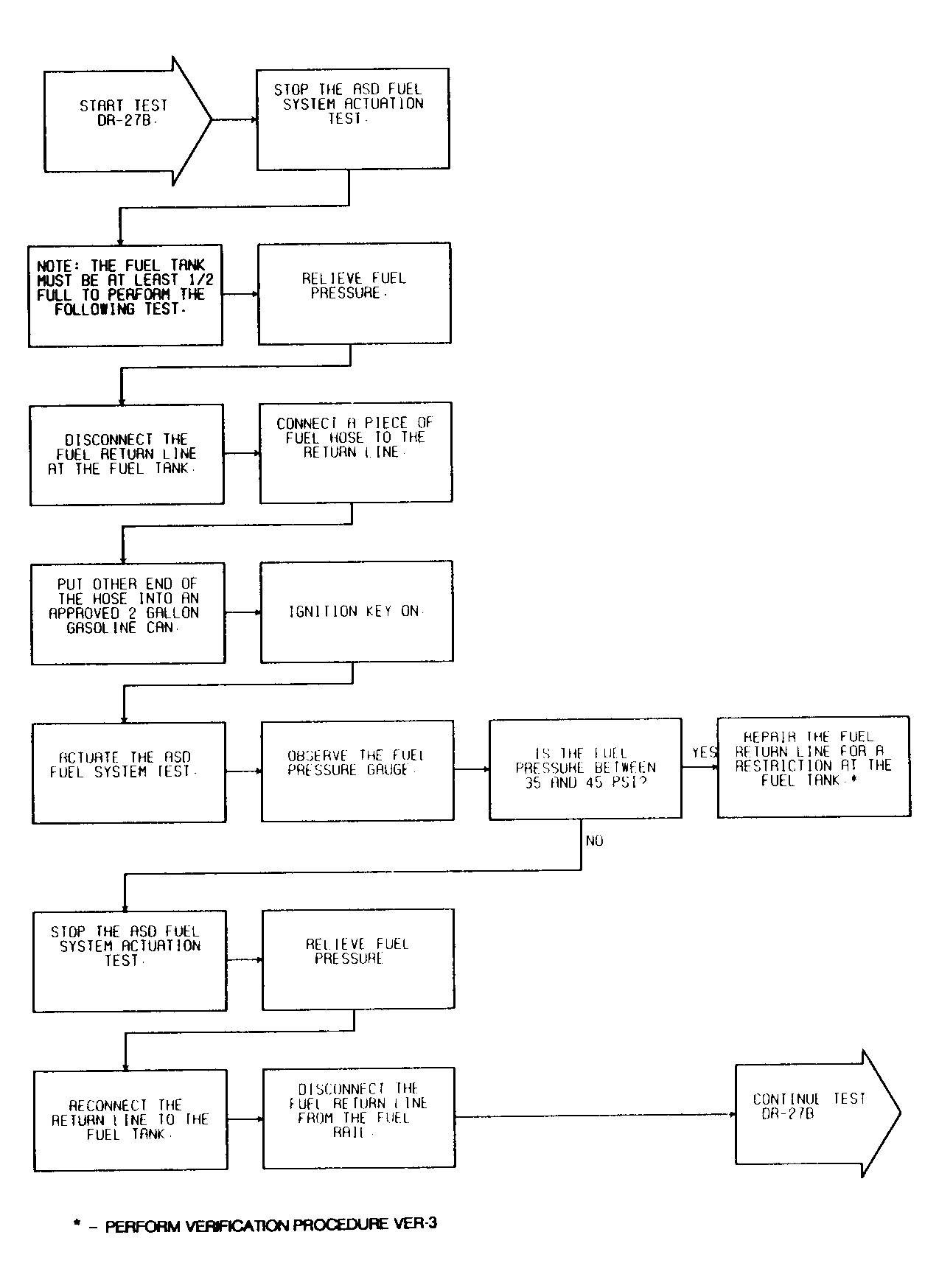

Fig 1: Test DR-27B (1 of 2) Checking Fuel Pressure

G91B13913

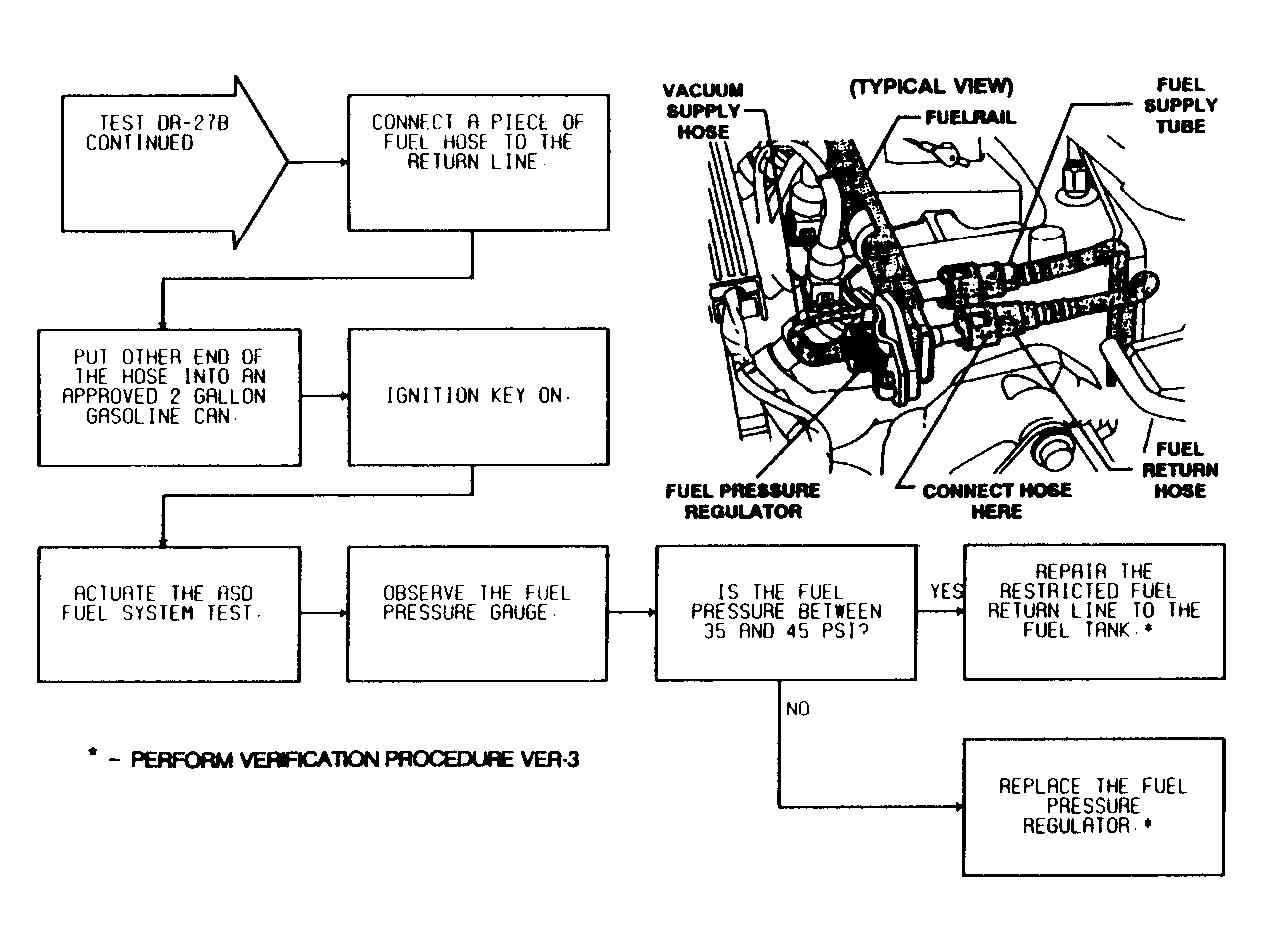

Fig 2: Test DR-27B (2 of 2) Checking Fuel Pressure

G91C13914
