NS-7A: Checking Fuel Pump Circuit

Fig 1: Test NS-7A Schematic, Checking Fuel Pump Circuit

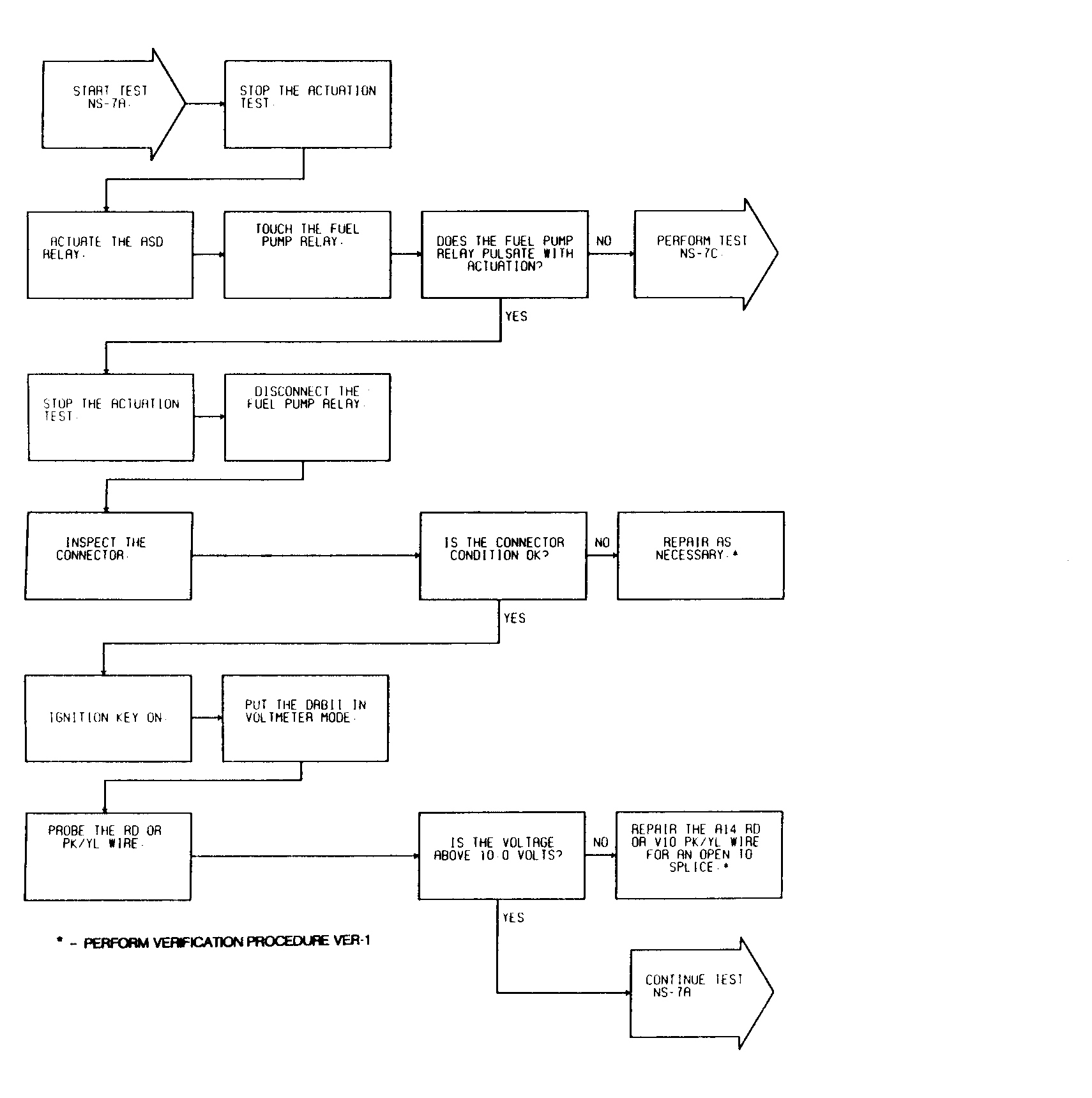

Fig 2: Test NS-7A Checking Fuel Pump Circuit (1 of 3)

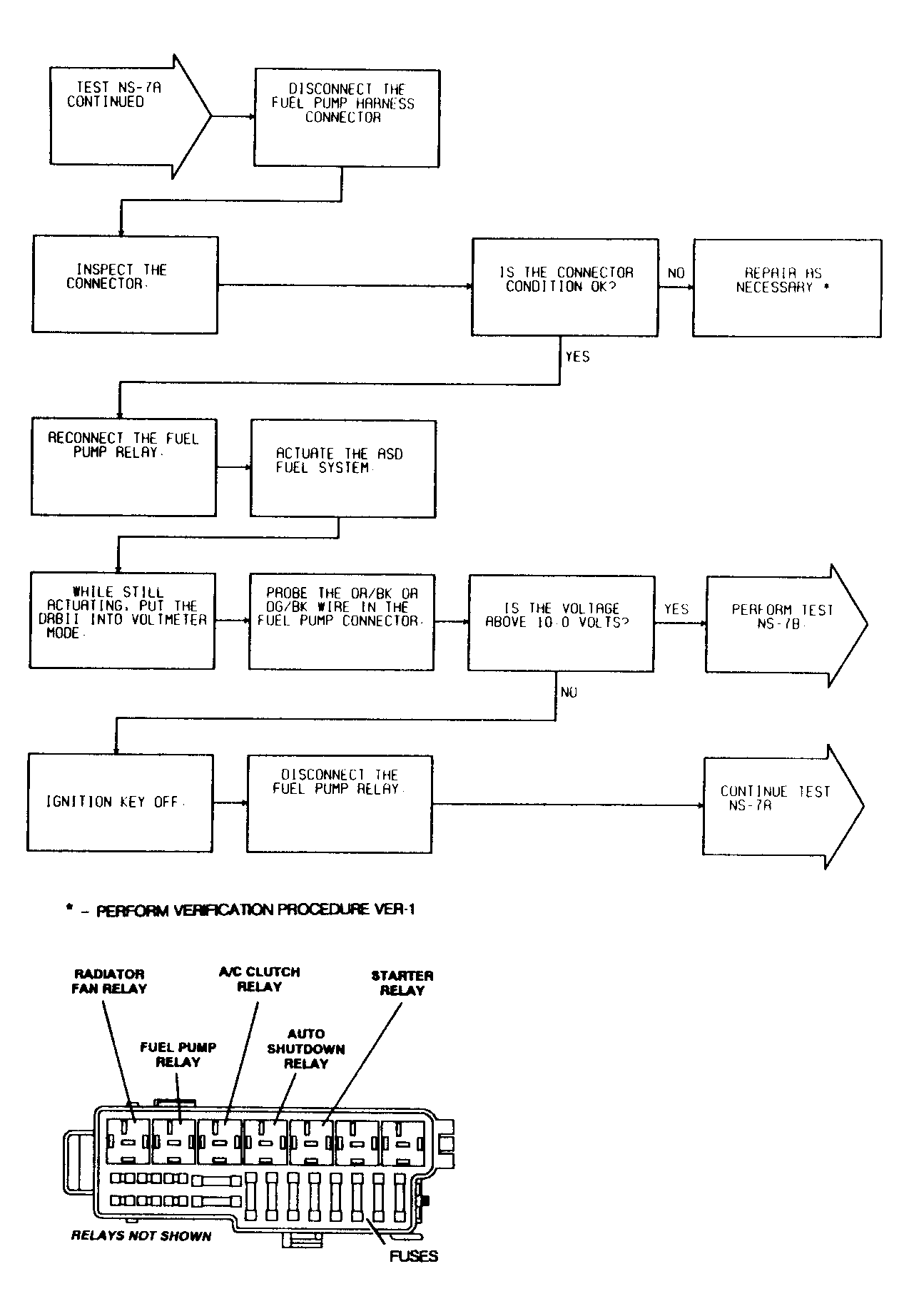

Fig 3: Test NS-7A Checking Fuel Pump Circuit (2 of 3)

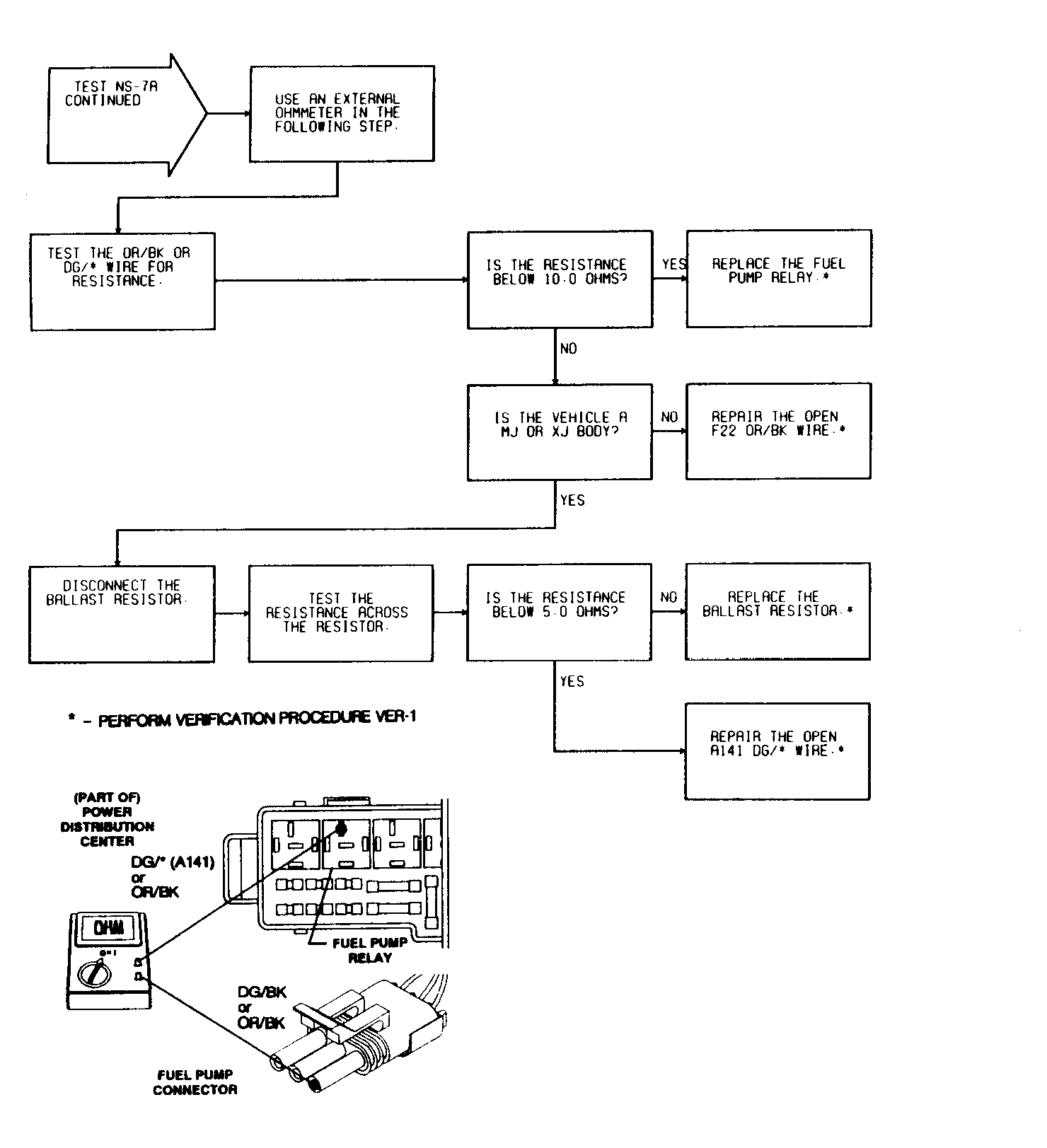

Fig 4: Test NS-7A Checking Fuel Pump Circuit (3 of 3)
