Dr-28A: Checking Coolant & TPS Calibrations

Fig 1: Test DR-28A (2 of 2) Checking Coolant & TPS Calibrations

G91D13915

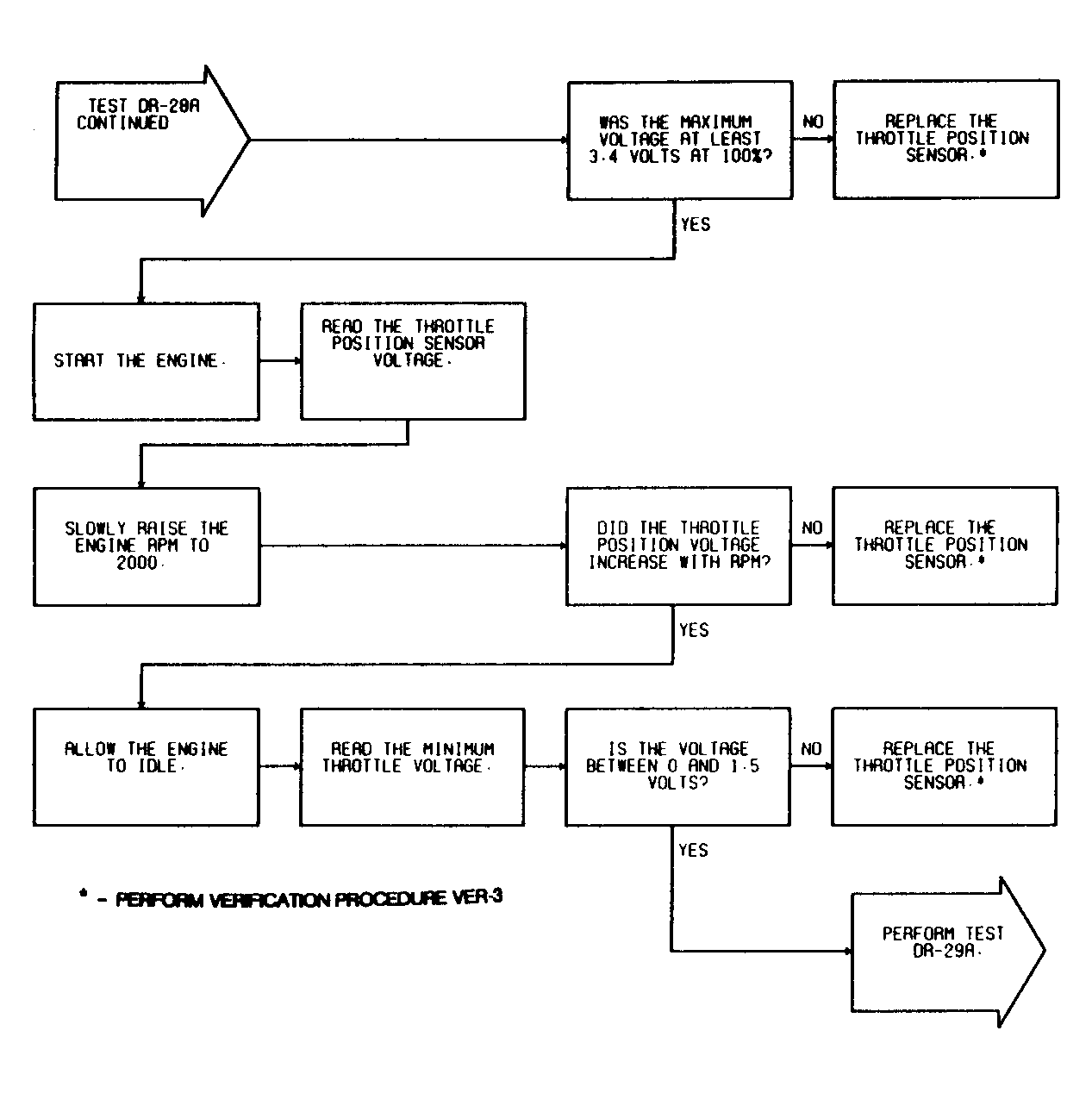

Fig 2: Test DR-28A (2 of 2) Checking Coolant & TPS Calibrations

G91E13916
