Code 813 - Stoplight Circuit Fault
Code 813 - Stoplight Circuit Fault

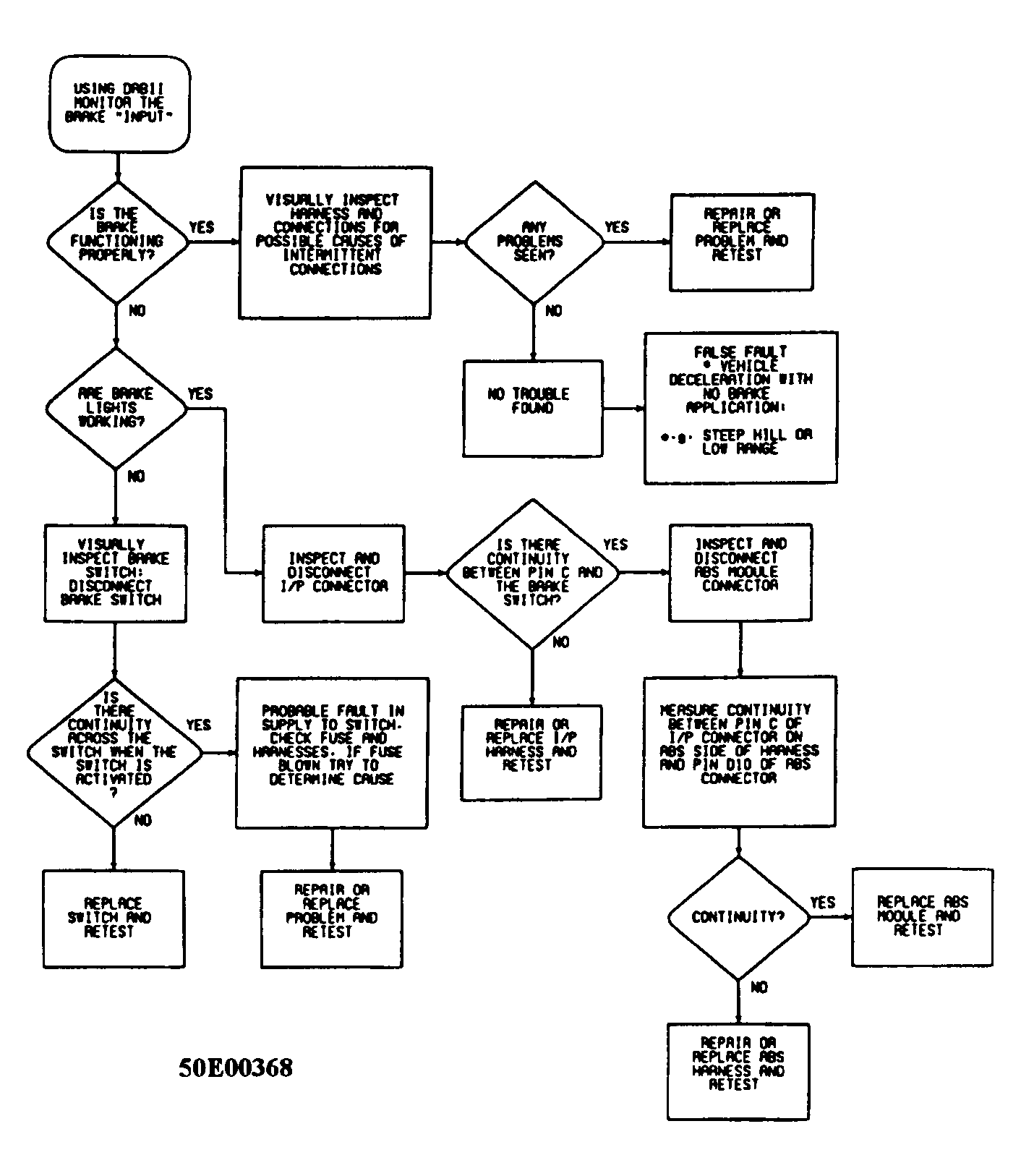

Fig 1: Code 813: Stoplight Circuit Fault

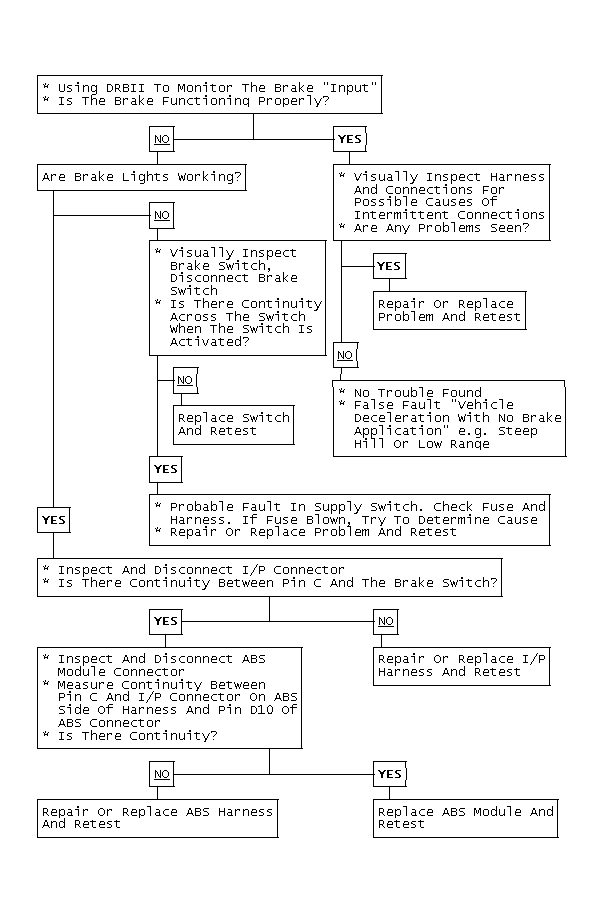

Fig 2: Code 813: Stoplight Circuit Fault
