Code 811 - Relay Fault
Code 811 - Relay Fault
Fig 1: Modulator Power Relay Connector

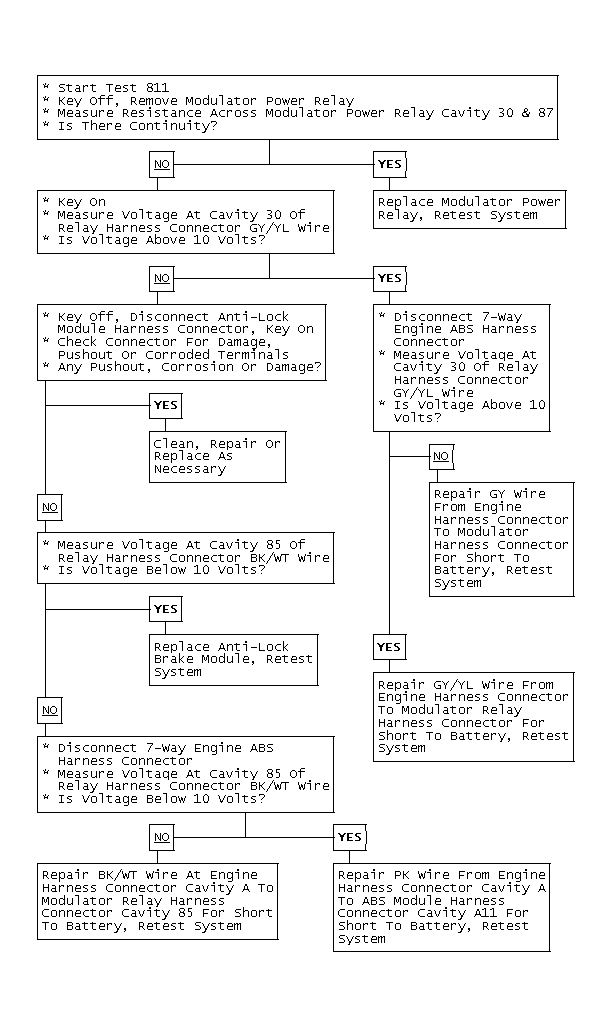

Fig 2: Fault 811: Relay Fault

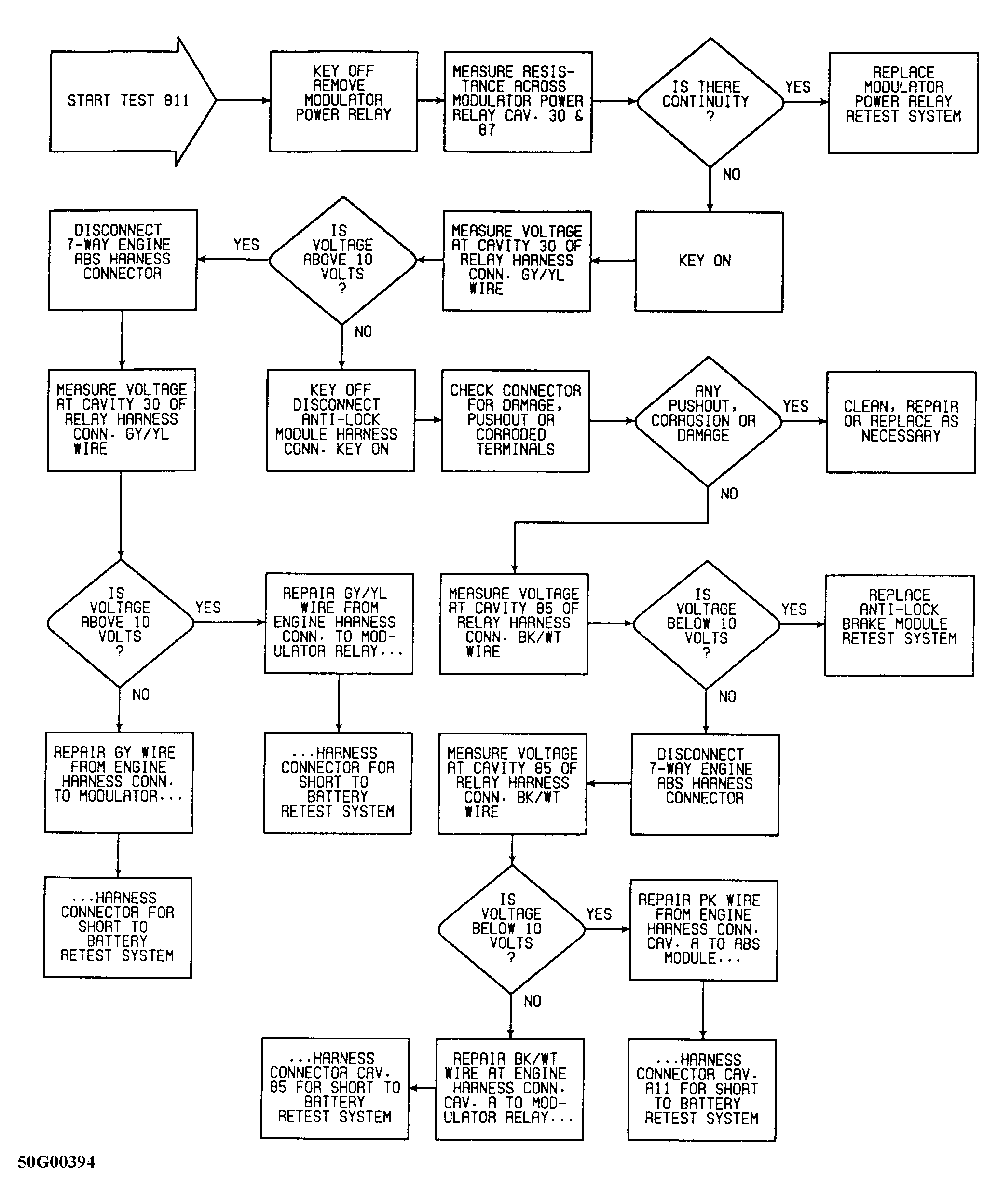

Fig 3: Fault 811: Relay Fault
