Code 812 - Pump/Motor Fault

Fig 1: Pump Connector (Pump Side)

G93I45573

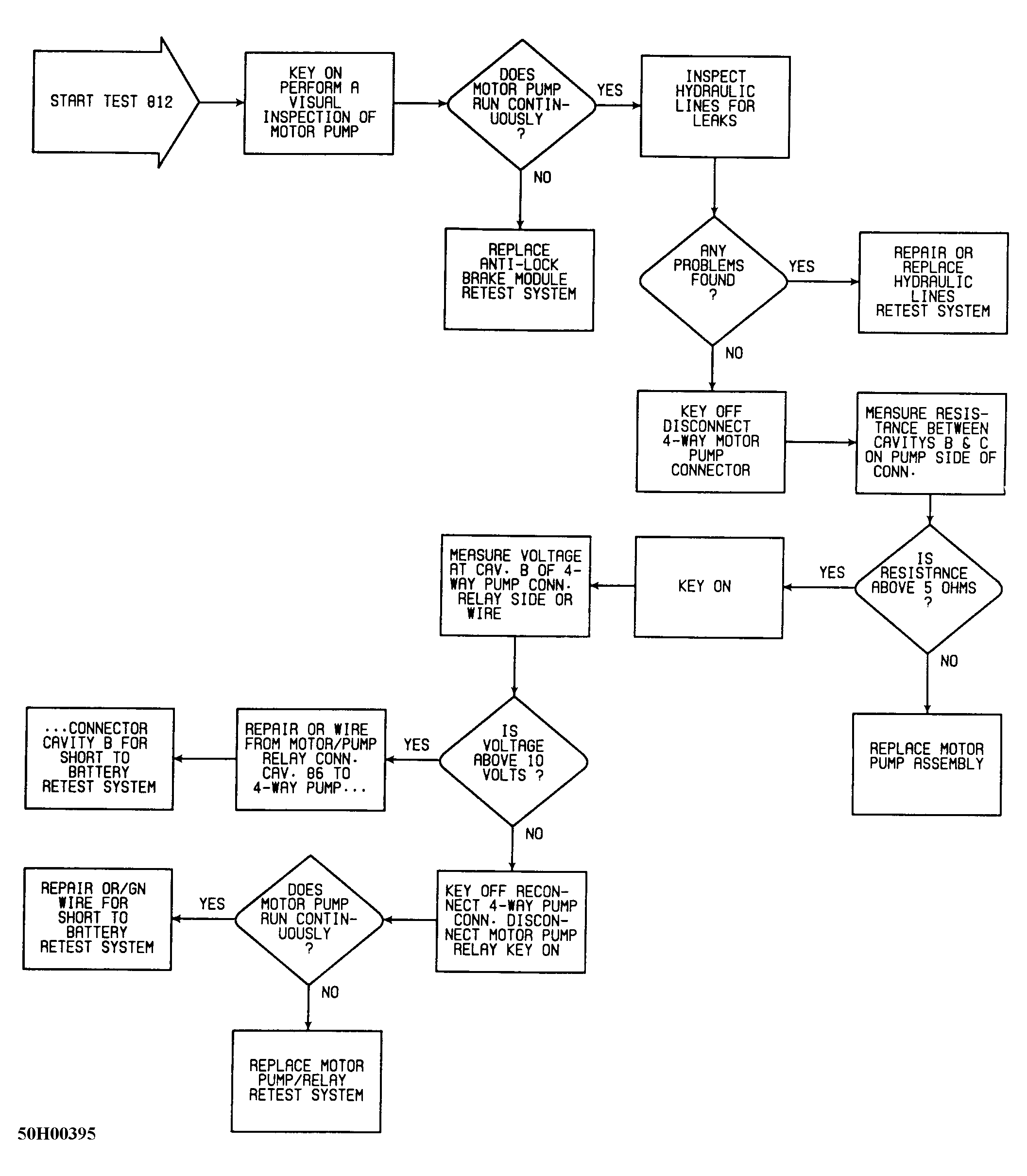

Fig 2: Fault 812: Pump/Motor Fault

G50H00395

Fig 3: Fault 812: Pump/Motor Fault

GB0010722
