Code 818 - Left Front Wheel Speed Sensor Fault

Fig 1: ABS Module Connector

Fig 2: Speed Sensor Connector (Harness Side)

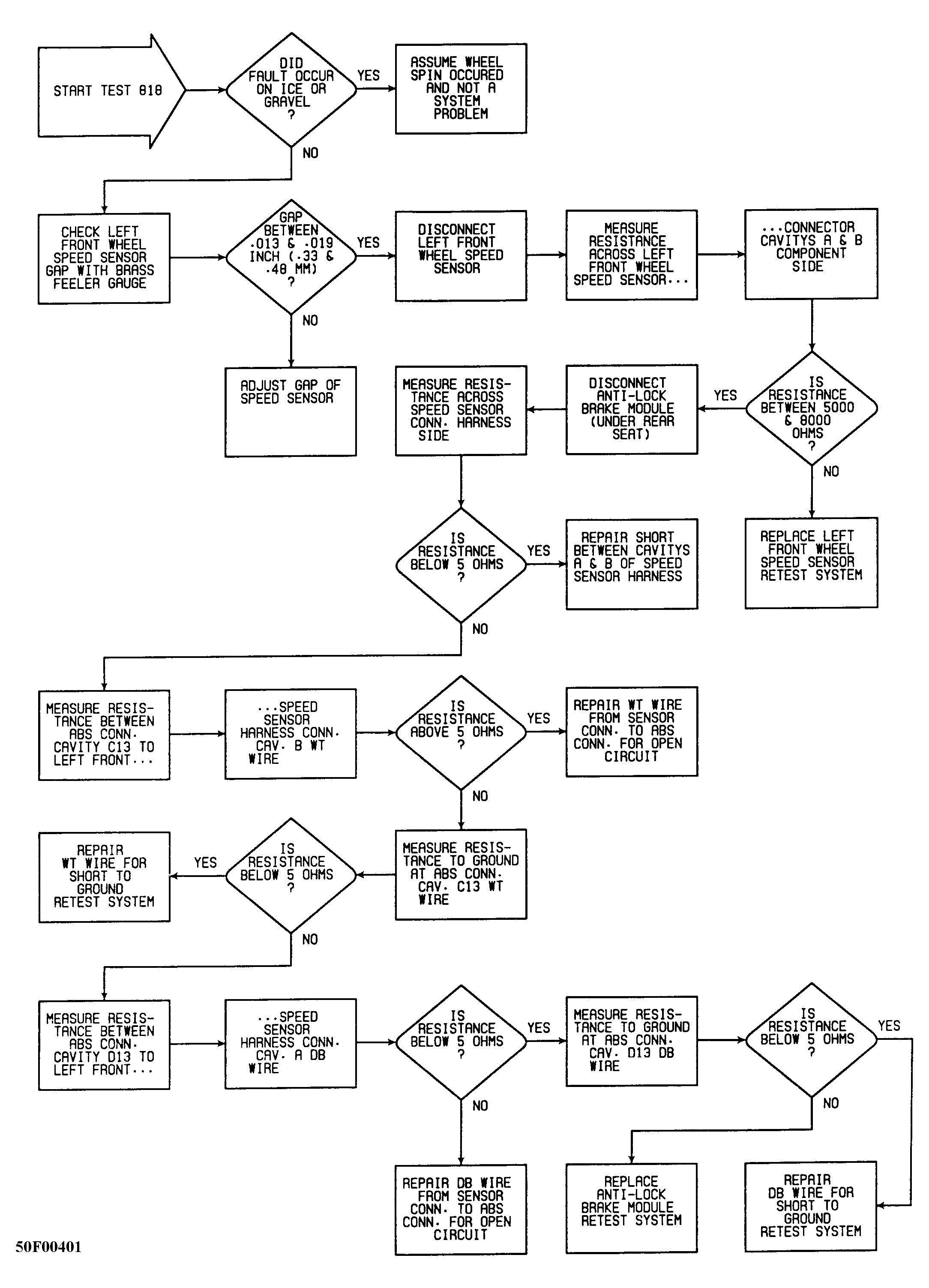

Fig 3: Fault 818: Left Front Wheel Speed Sensor Fault

Fig 4: Fault 818: Left Front Wheel Speed Sensor Fault
