Code 819 - Open In Yellow Light Circuit

Fig 1: ABS Module Connector
G93A45559
Fig 2: Diagnostic Connector D2
G93G45571
Fig 3: Yellow Light Relay Connector
G93G45563

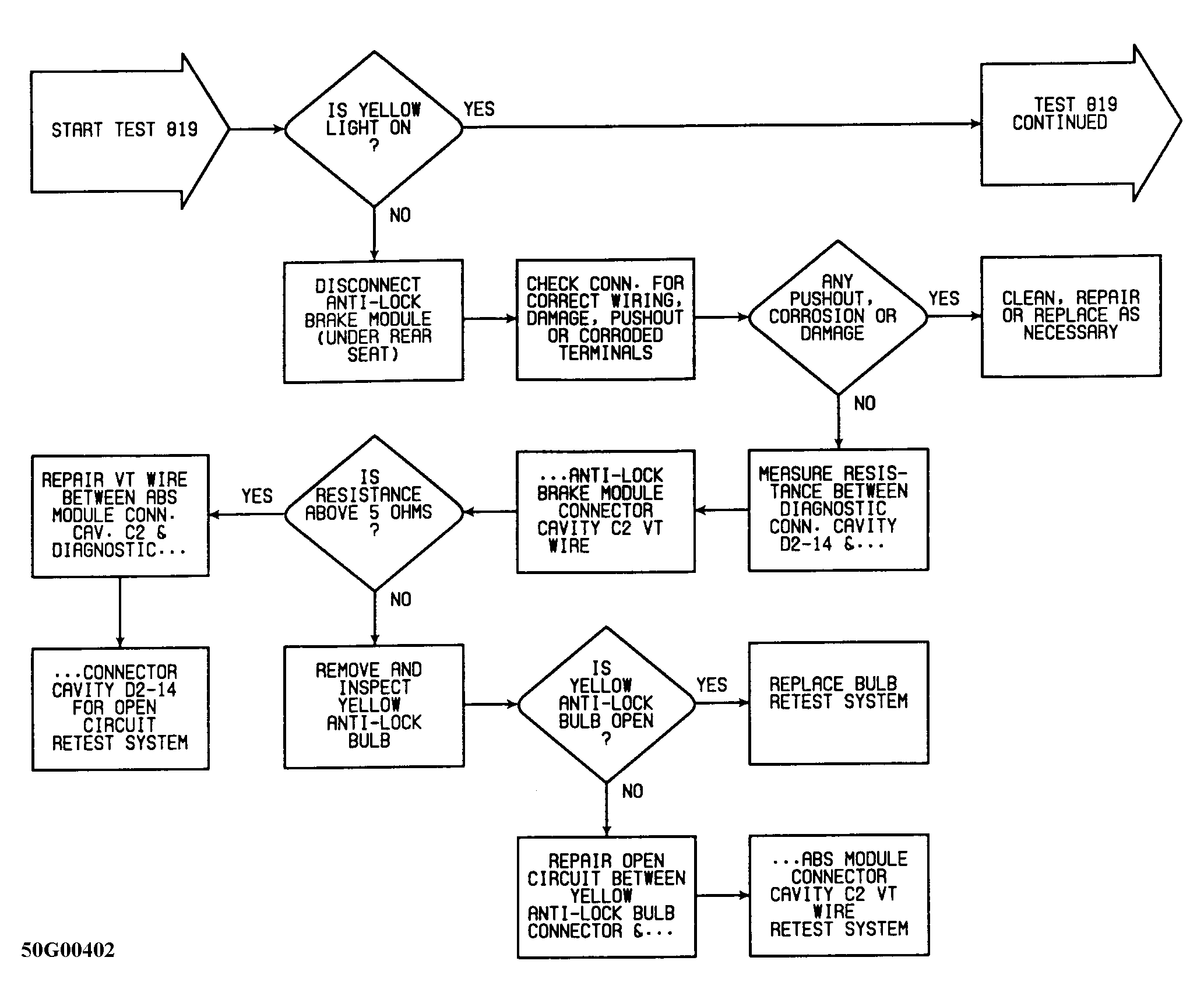

Fig 4: Fault 819: Open In Yellow Light Circuit (1 of 2)
G50G00402
Fig 5: Fault 819: Open In Yellow Light Circuit (1 of 2)
GB0010729

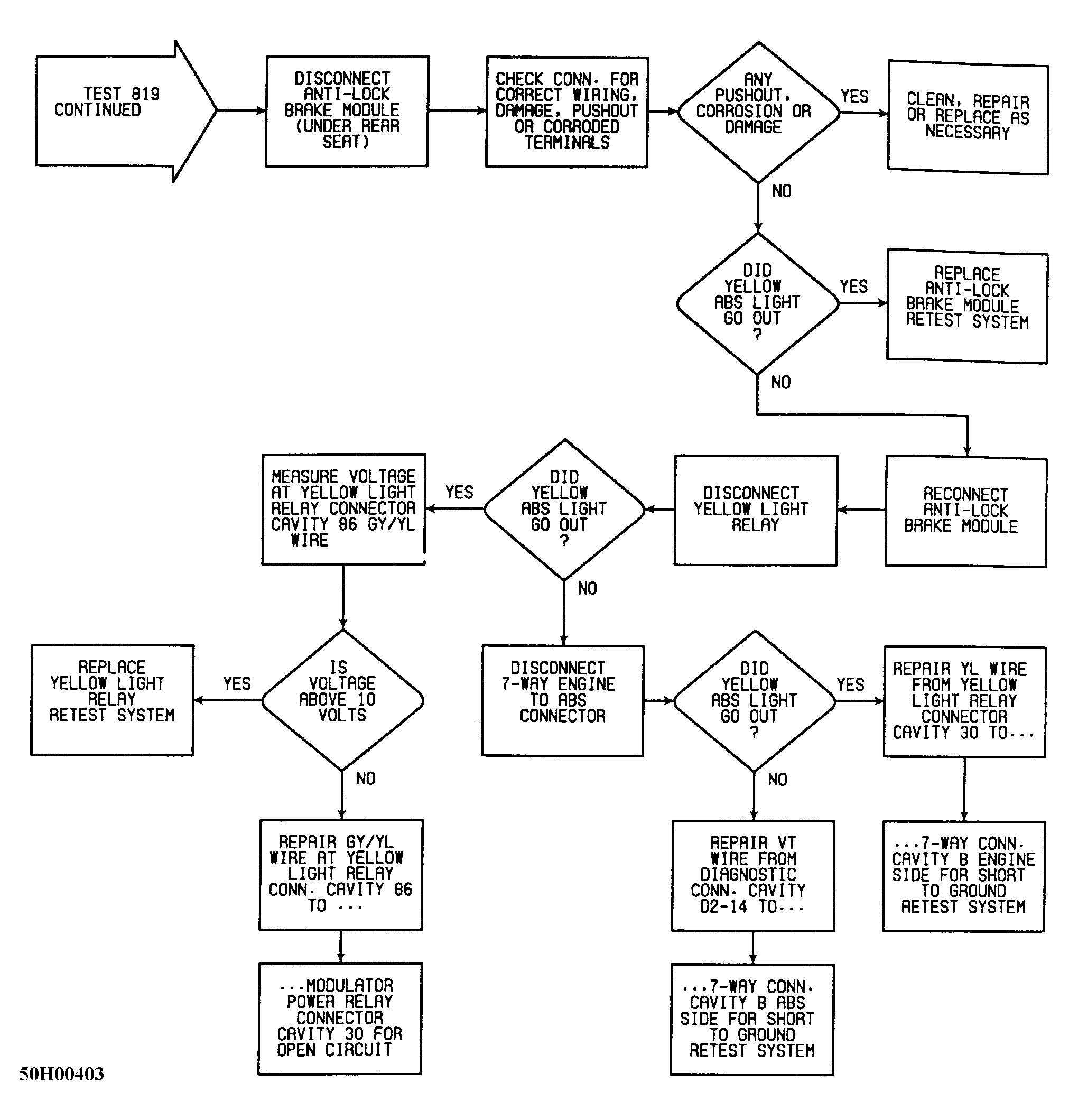

Fig 6: Fault 819: Open In Yellow Light Circuit (2 of 2)
G50H00403

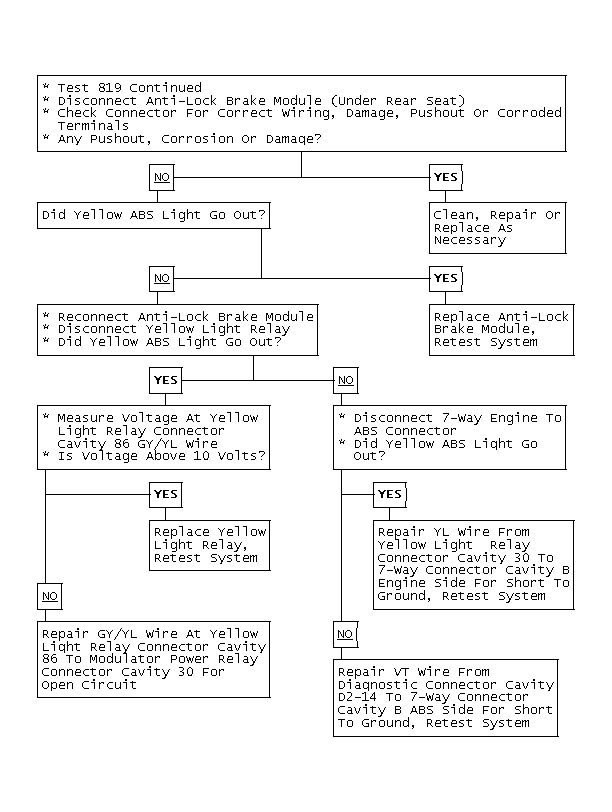

Fig 7: Fault 819: Open In Yellow Light Circuit (2 of 2)
GB0010730
