CHEROKEE & COMANCHE: Notes

NOTE: To locate instrument cluster connectors and terminals, see Fig 1 and Fig 2 .

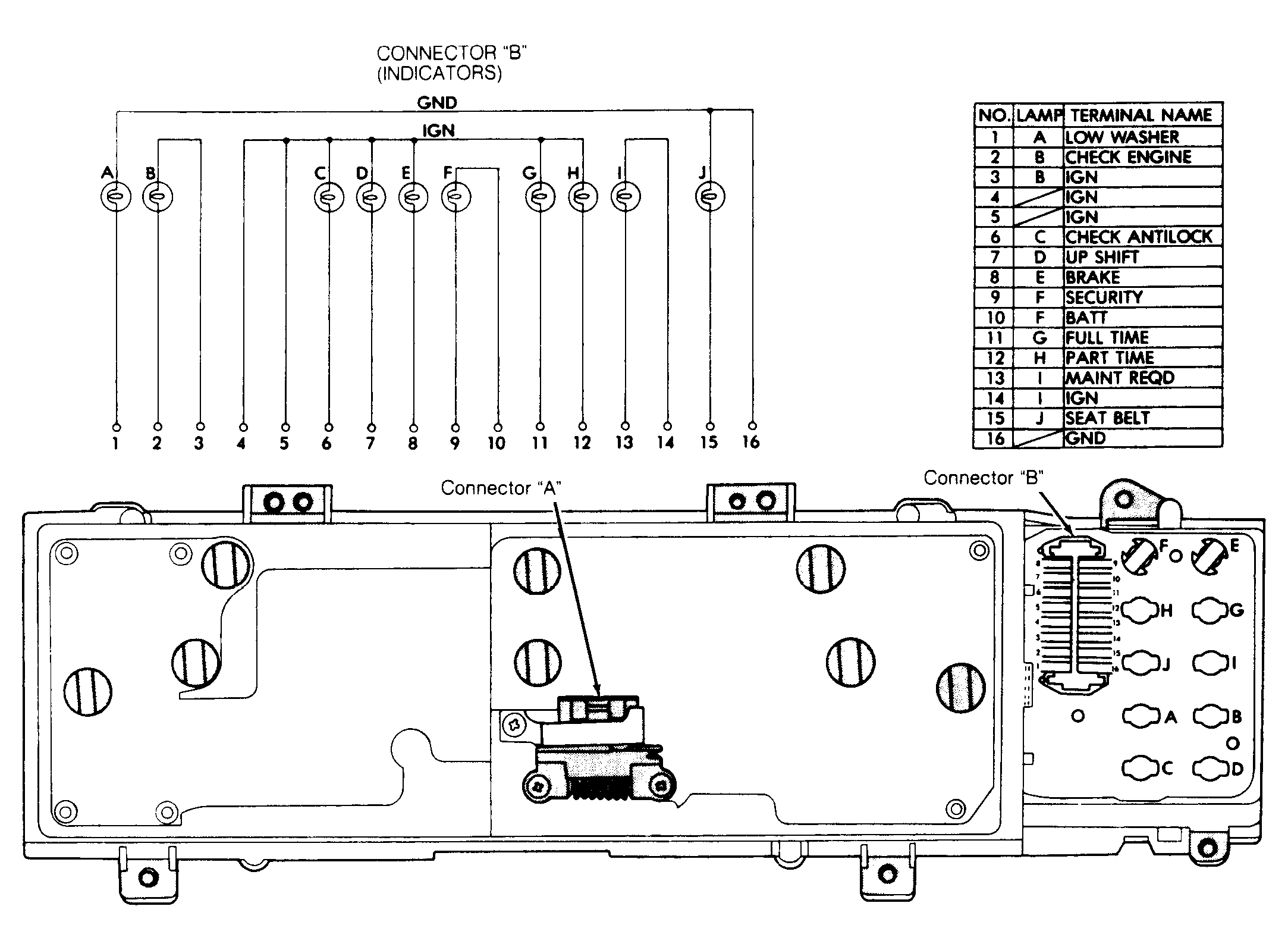

Fig 1: Identifying & Locating Instrument Cluster Connectors (Cherokee & Comanche)

Courtesy of CHRYSLER MOTORS.

Fig 2: Identifying & Locating Instrument Cluster Connector Terminals (Cherokee & Comanche)

Courtesy of CHRYSLER MOTORS.
