Dr-31B: Checking Idle Speed Motor Operation
Dr-31B: Checking Idle Speed Motor Operation

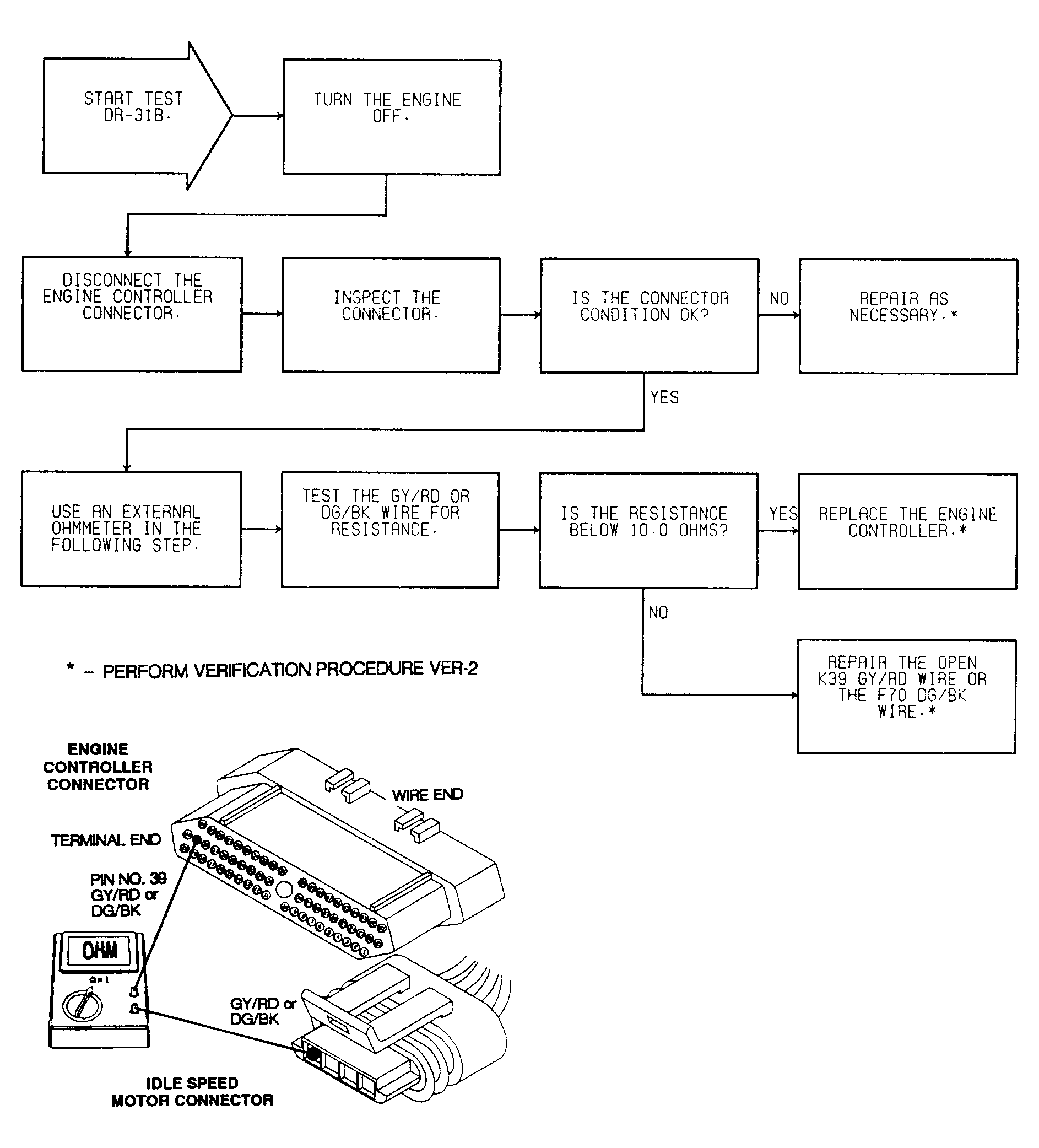

Fig 1: Test DR-31B Checking Idle Speed Motor Operation
