Dr-31C: Checking Idle Speed Motor Operation
Dr-31C: Checking Idle Speed Motor Operation

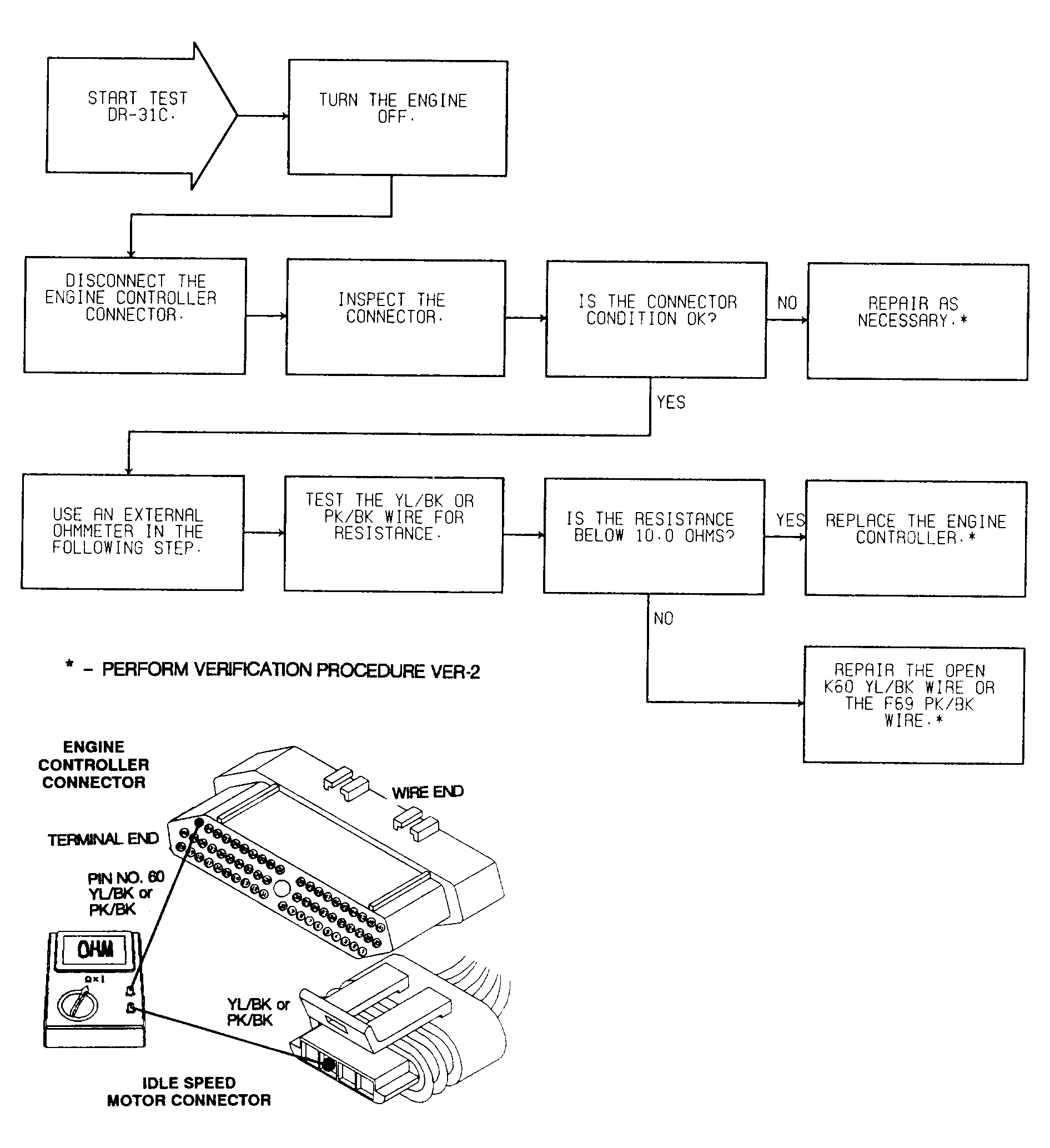

Fig 1: Test DR-31C Checking Idle Speed Motor Operation
