Dr-31D: Checking Idle Speed Motor Operation
Dr-31D: Checking Idle Speed Motor Operation

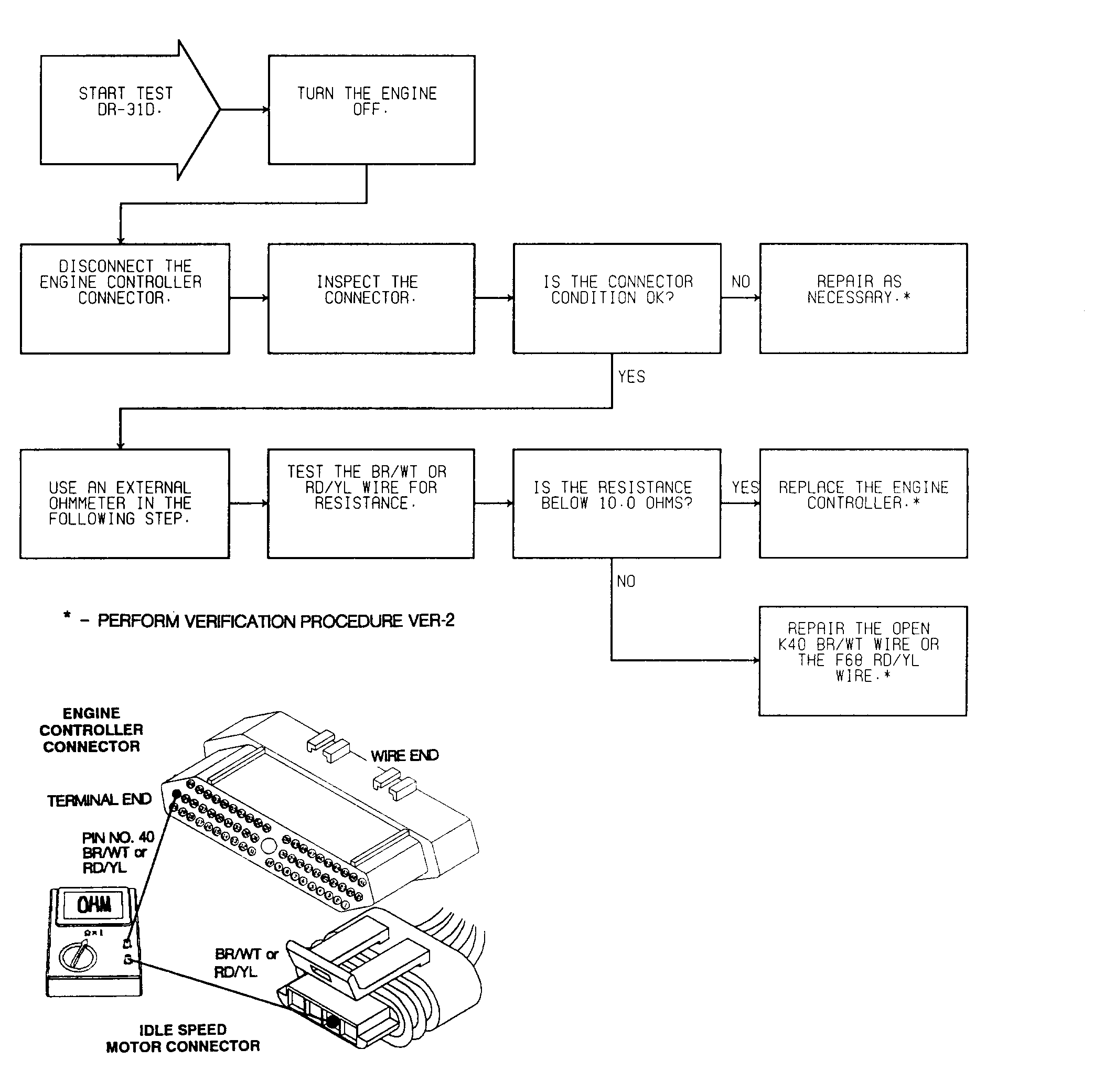

Fig 1: Test DR-31D Checking Idle Speed Motor Operation
