Dr-31E: Checking Idle Speed Motor Operation
Dr-31E: Checking Idle Speed Motor Operation

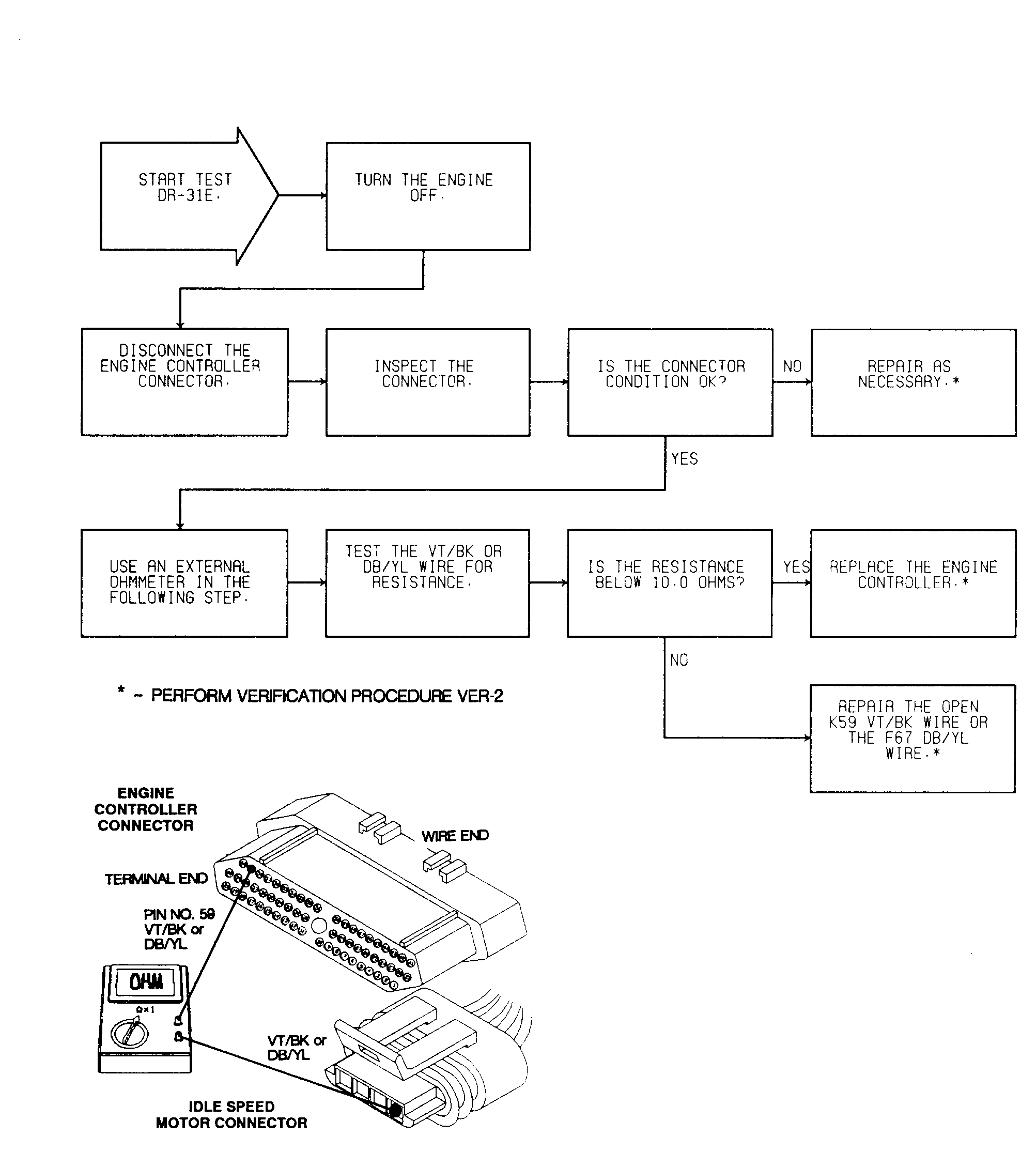

Fig 1: Test DR-31E Checking Idle Speed Motor Operation
