NS-7C: Checking Fuel Pump Power Circuit
NS-7C: Checking Fuel Pump Power Circuit

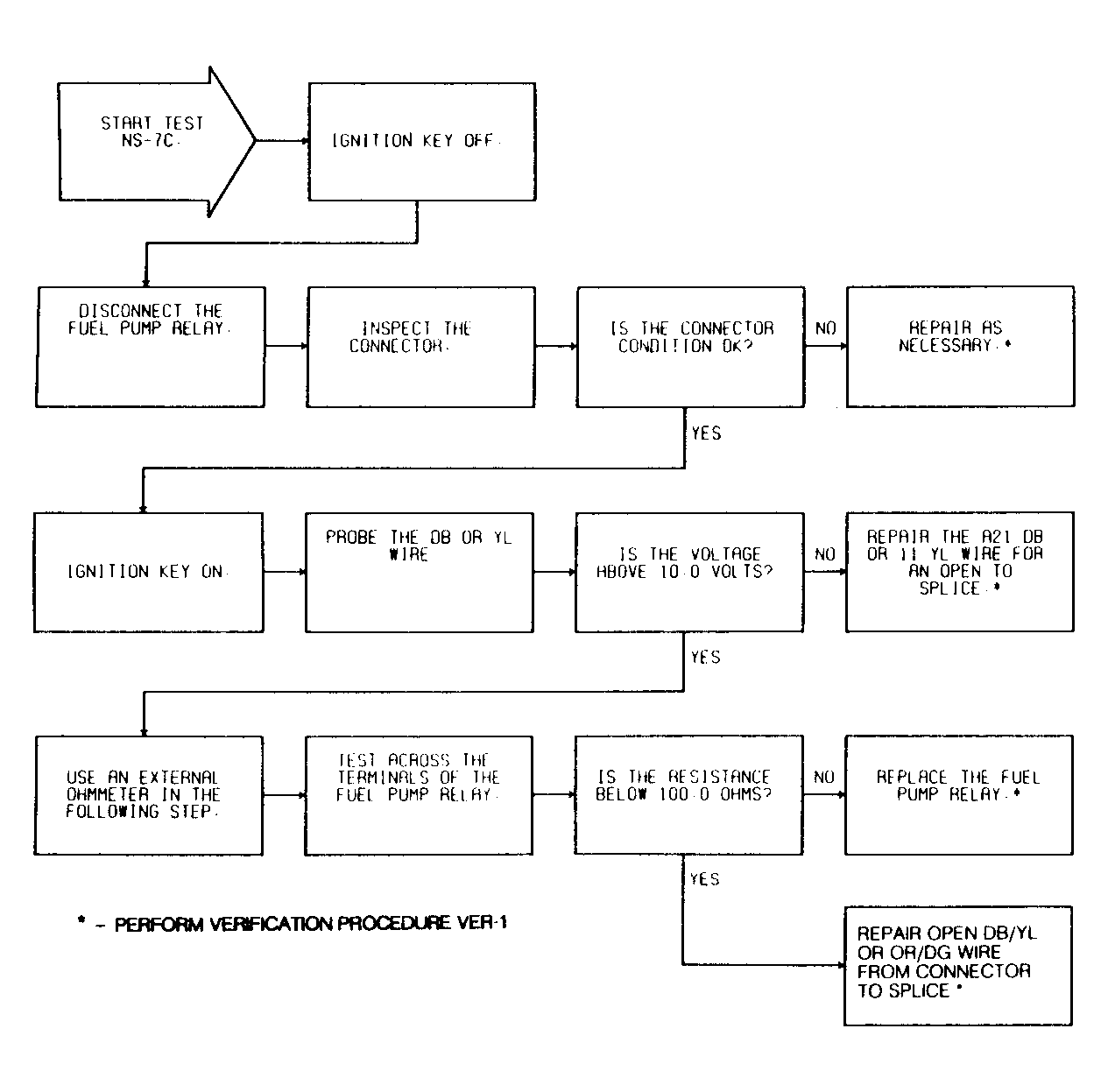

Fig 1: Test NS-7C Checking Fuel Pump Power Circuit
Fig 2: Test NS-7C Checking Fuel Pump Power Circuit
