Connector Identification

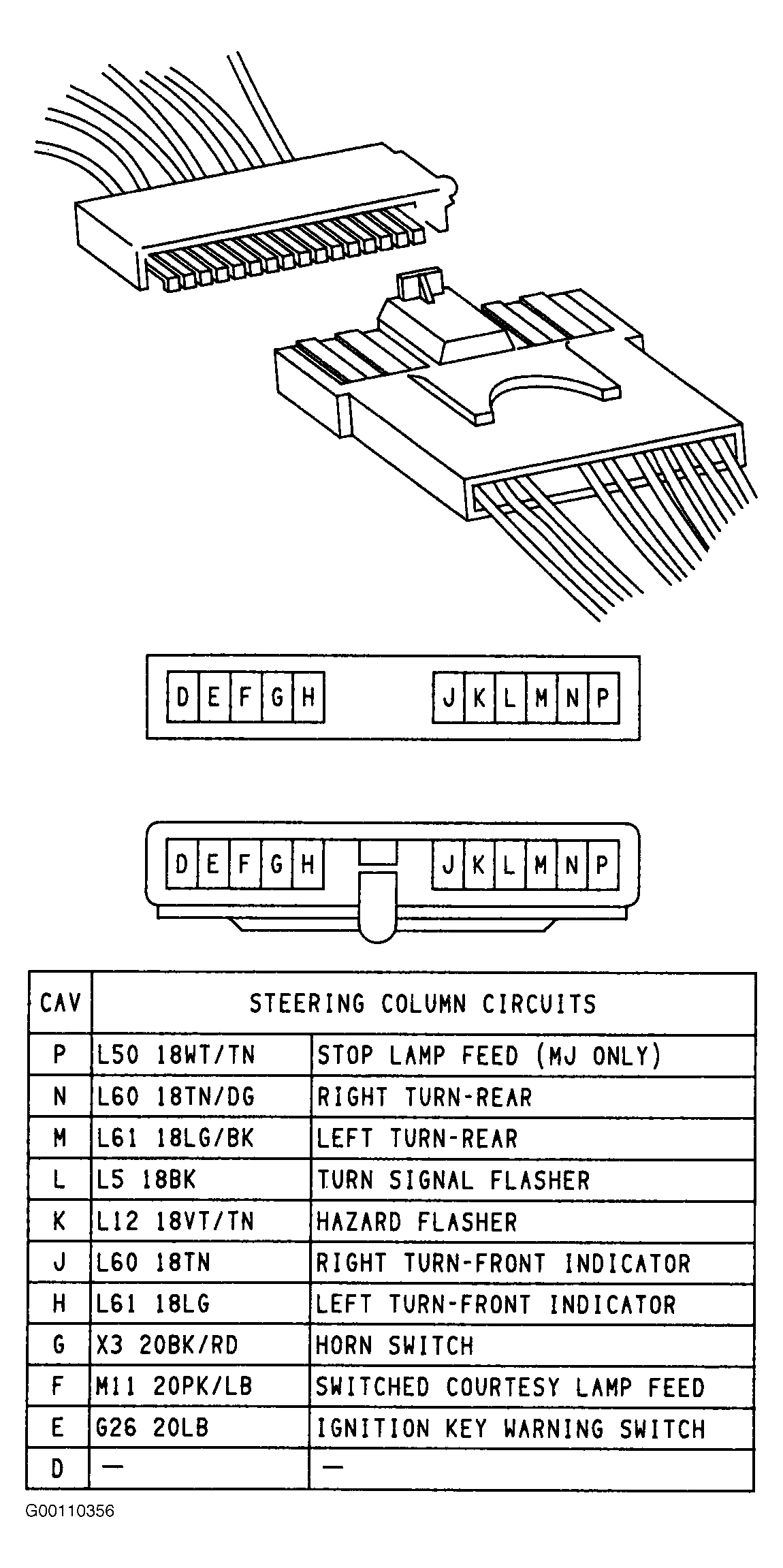

Fig 1: Identifying Steering Column Connector Terminals
G00110356Courtesy of CHRYSLER CORP.
