Power Window Switch Tests

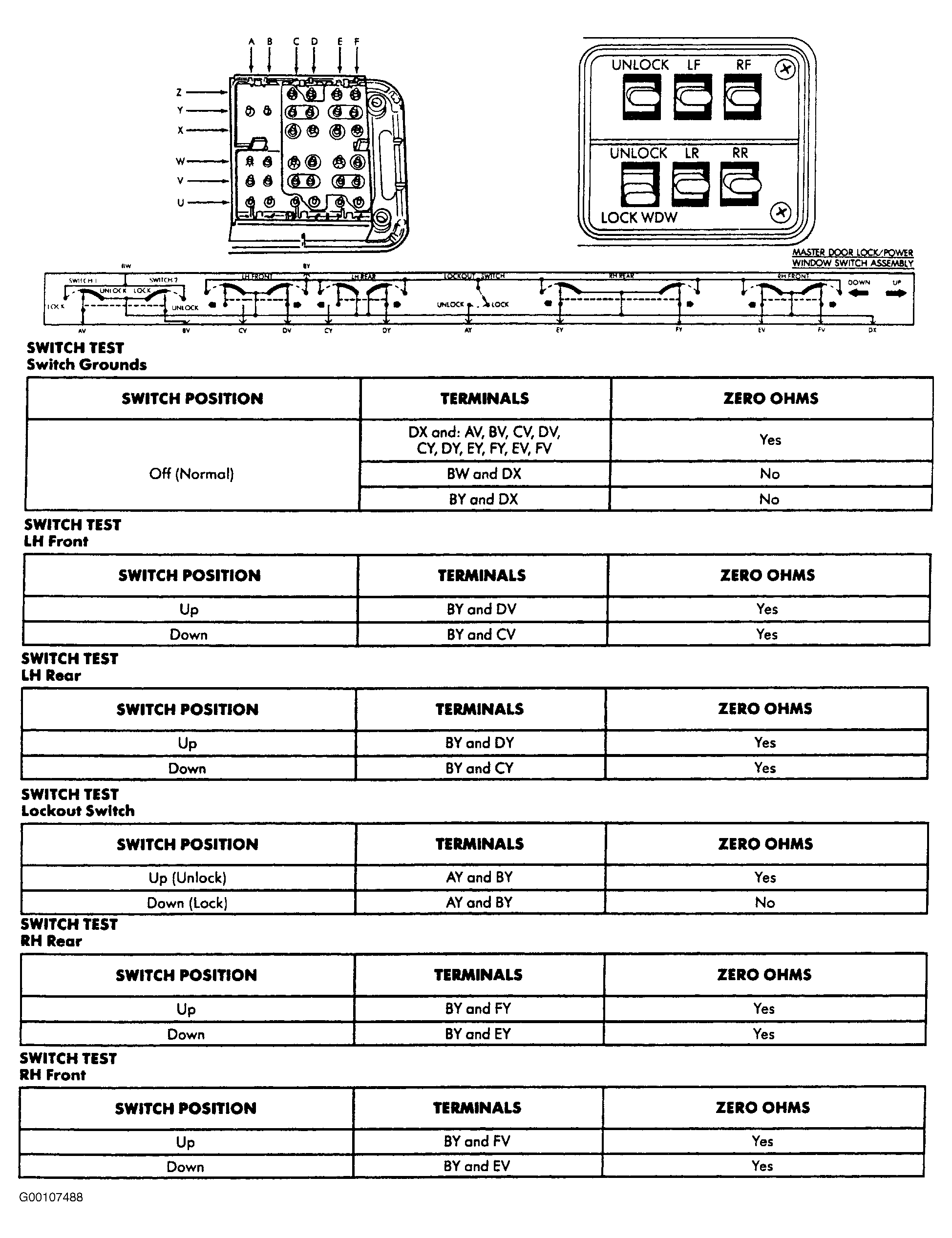

Fig 1: Driver's Power Window Switch Tests - 4-Door

Courtesy of CHRYSLER CORP.

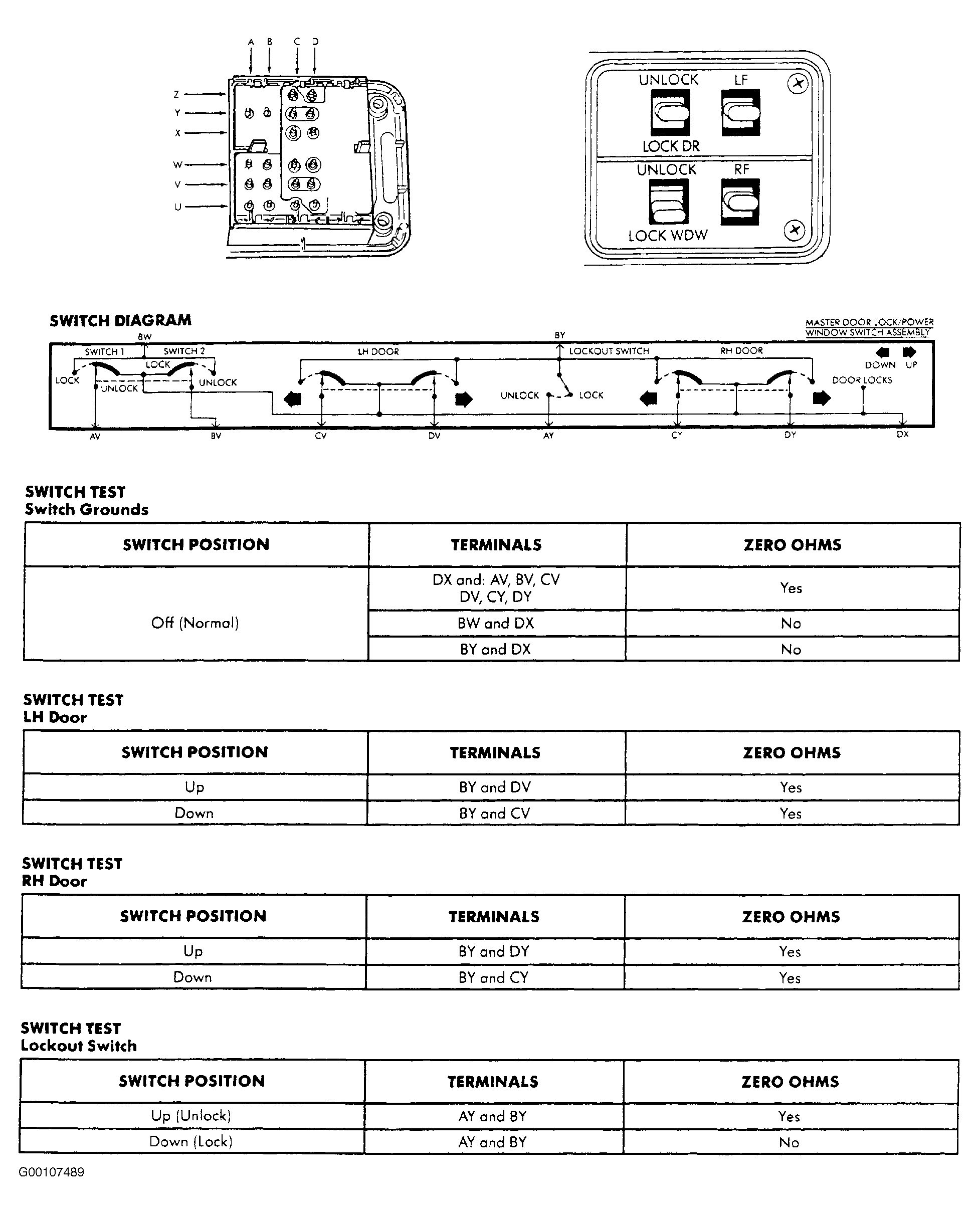

Fig 2: Driver's Power Window Switch Test - 2-Door

Courtesy of CHRYSLER CORP.

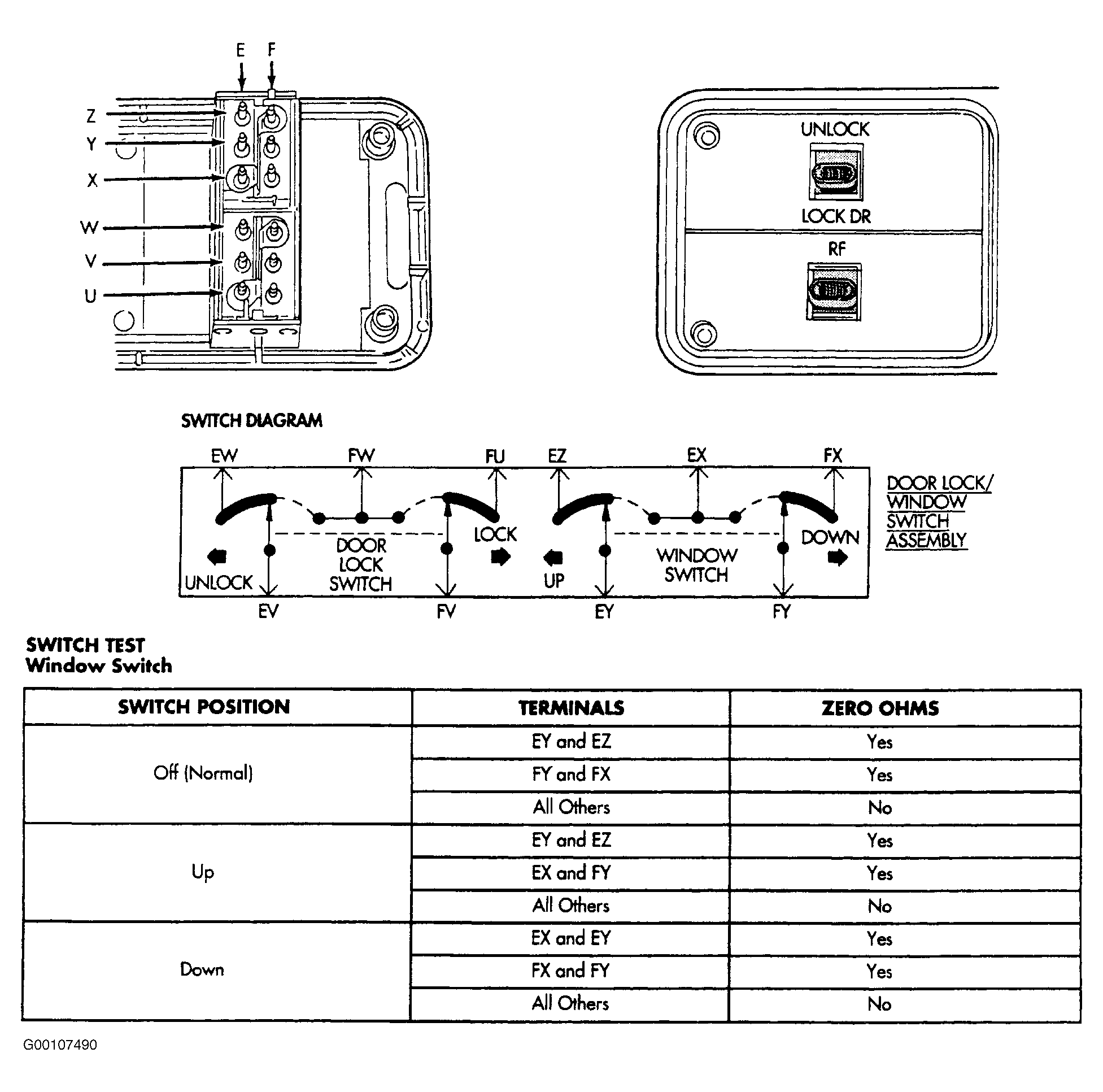

Fig 3: Passenger's Power Window Switch Test

Courtesy of CHRYSLER CORP.
