Housing Assembly: Disassembly

Remove sector shaft seal retaining ring. Remove steel washer. Remove lower oil seal, steel washer and upper oil seal from housing. See Fig 1 . Press sector shaft bearing out of housing from lower end.

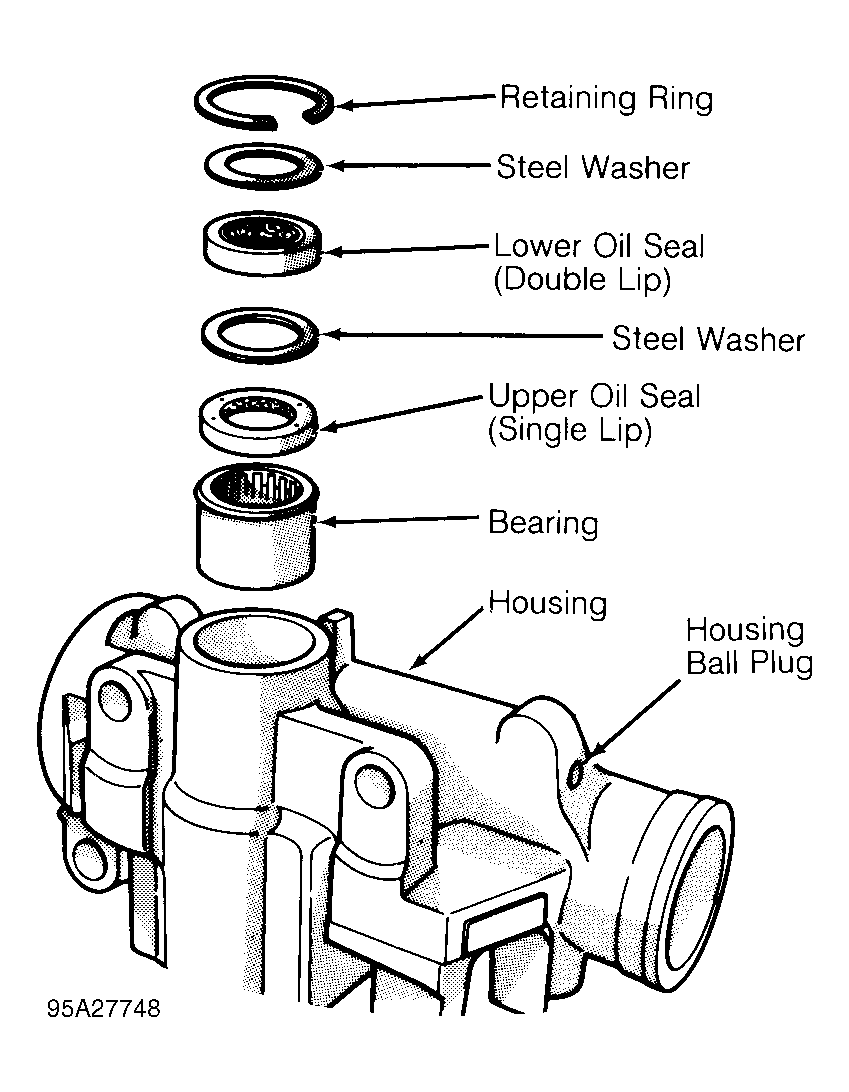

Fig 1: Exploded View Of Gear Housing Seals & Bearing

Courtesy of CHRYSLER CORP.
