Rear Wiper Switch Test
WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

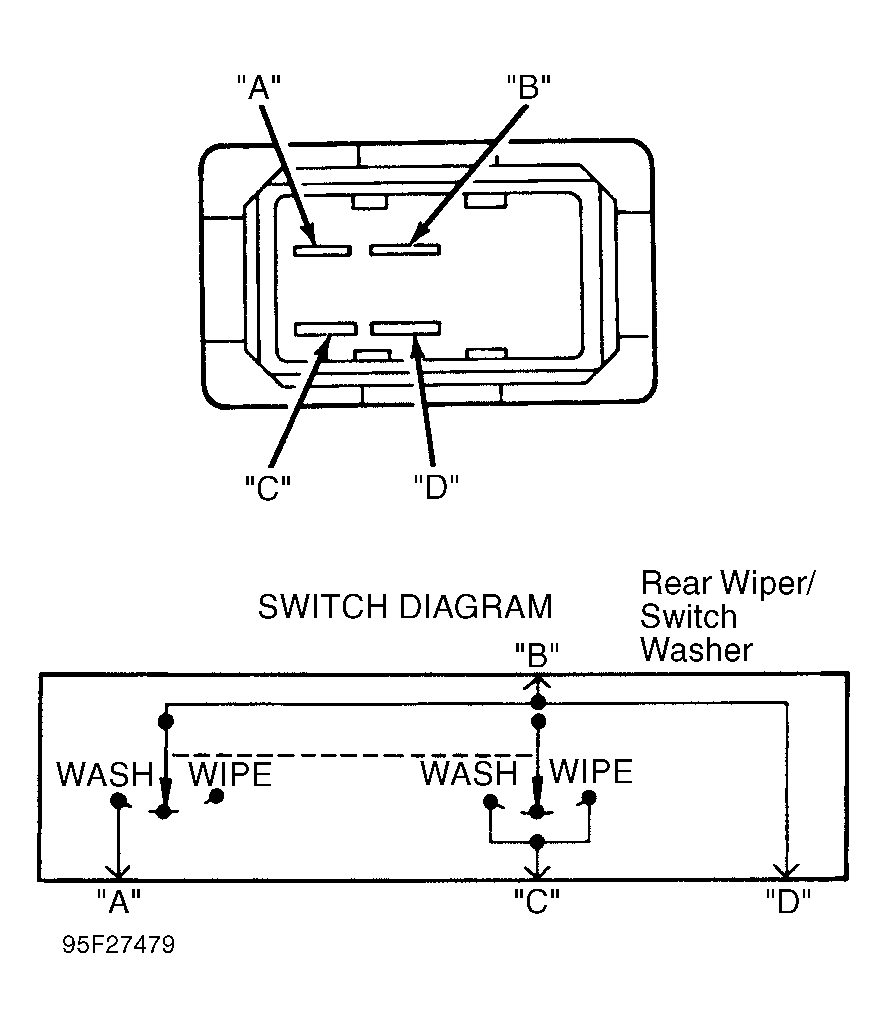

Using an ohmmeter, test continuity as shown in LIFTGATE WIPER/WASHER SWITCH CONTINUITY . See Fig 1 . If switch fails any test, replace switch
LIFTGATE WIPER WASHER SWITCH CONTINUITY
| Switch Position | Continuity Between Pins |
|---|---|
| Off | None |
| Wipe | "B" & "C" |
| Wash | "A" & "B", "B" & "C" |
