Service Point Locations

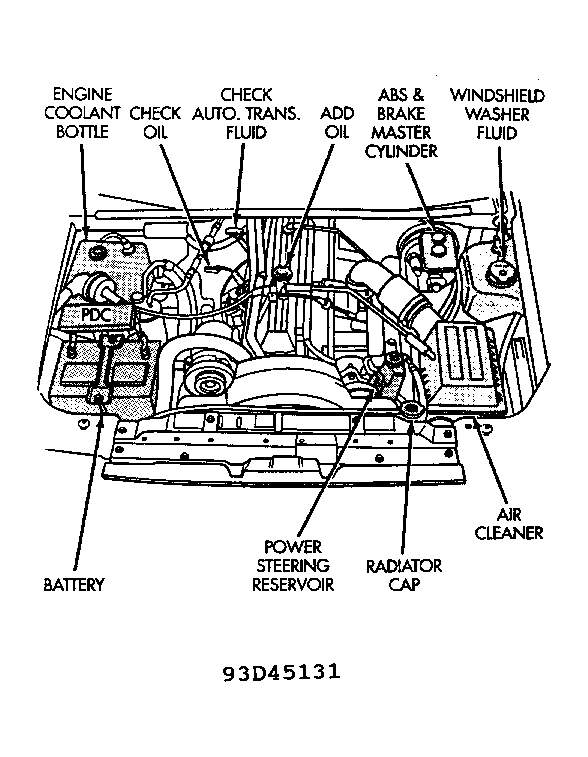

Fig 1: Service Point Locations (4.0L Engine)
G93D45131Courtesy of CHRYSLER CORP.

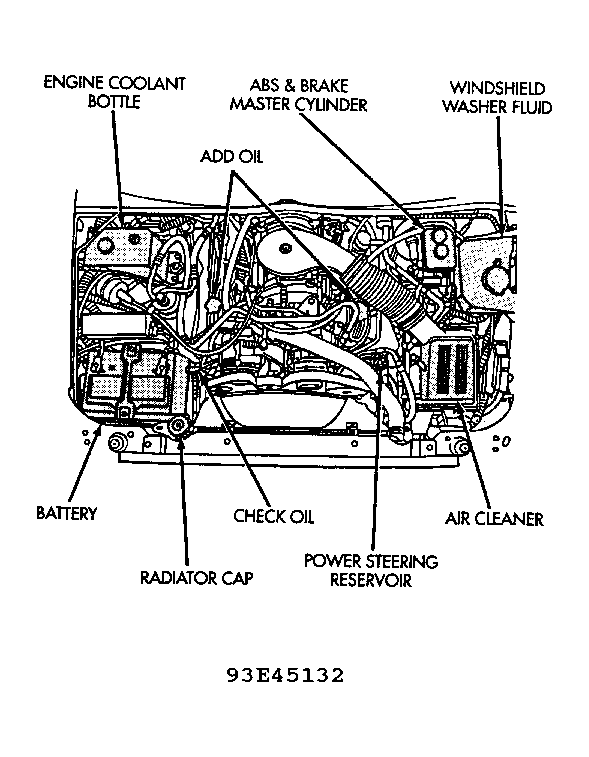

Fig 2: Service Point Locations (5.2L Engine)
G93E45132Courtesy of CHRYSLER CORP.
