Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Control Module | Under left seat. |
| Controller Anti-Lock Brake | On hydraulic control unit. See Figure. |
| Daytime Running Lamp Module | In right rear of engine compartment, near firewall. |
| Fuel Pump Module | On fuel tank. |
| Headlamp Delay Module | Behind left side of dash. |
| Hydraulic Control Unit | Near brake master cylinder. |

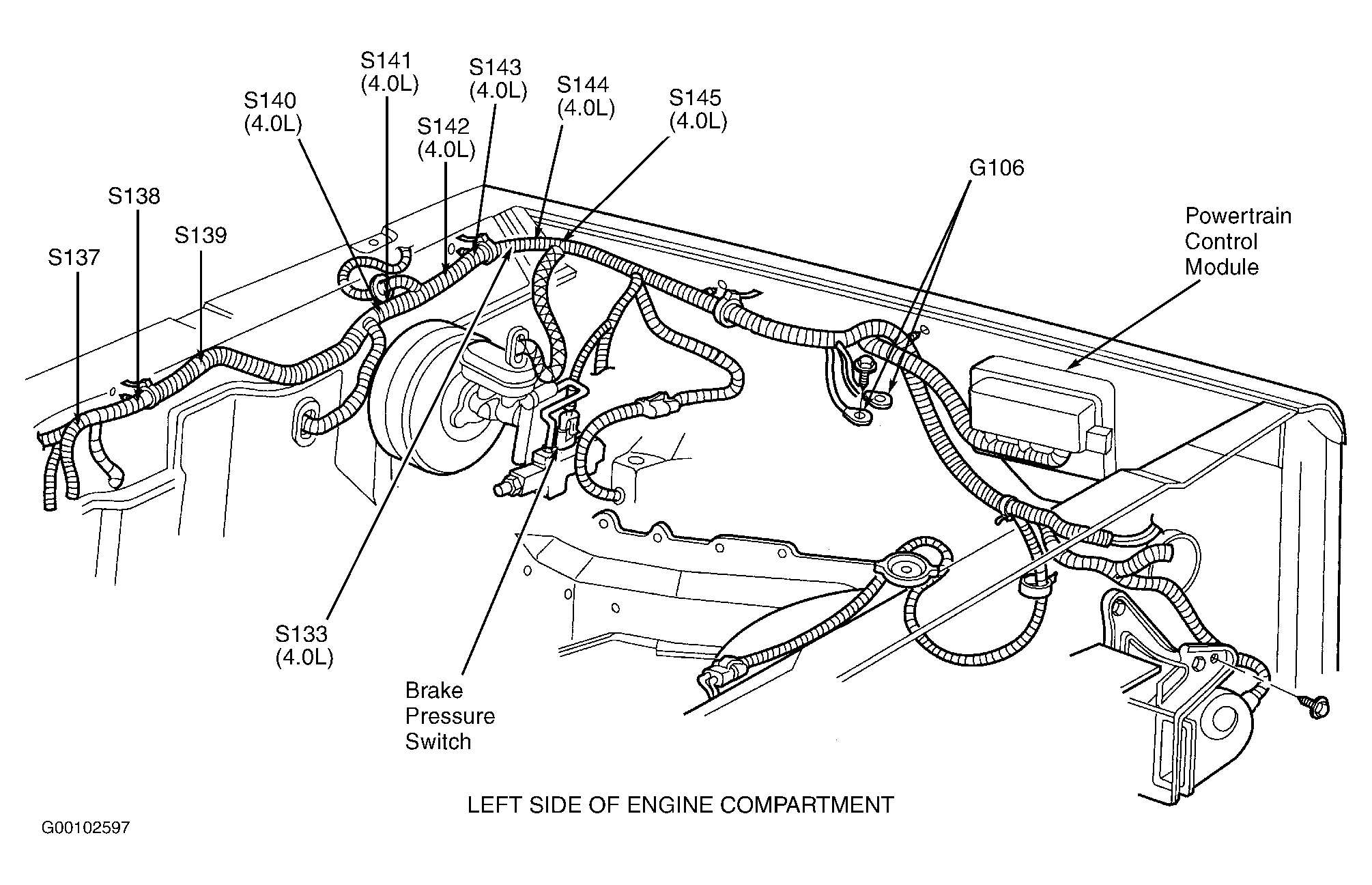

| Powertrain Control Module | Left fender side shield. See Figure. |
| Transmission Control Module | Under center dash panel. |
