Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Side Of Engine Compartment

Fig 2: Right Side Of Engine Compartment

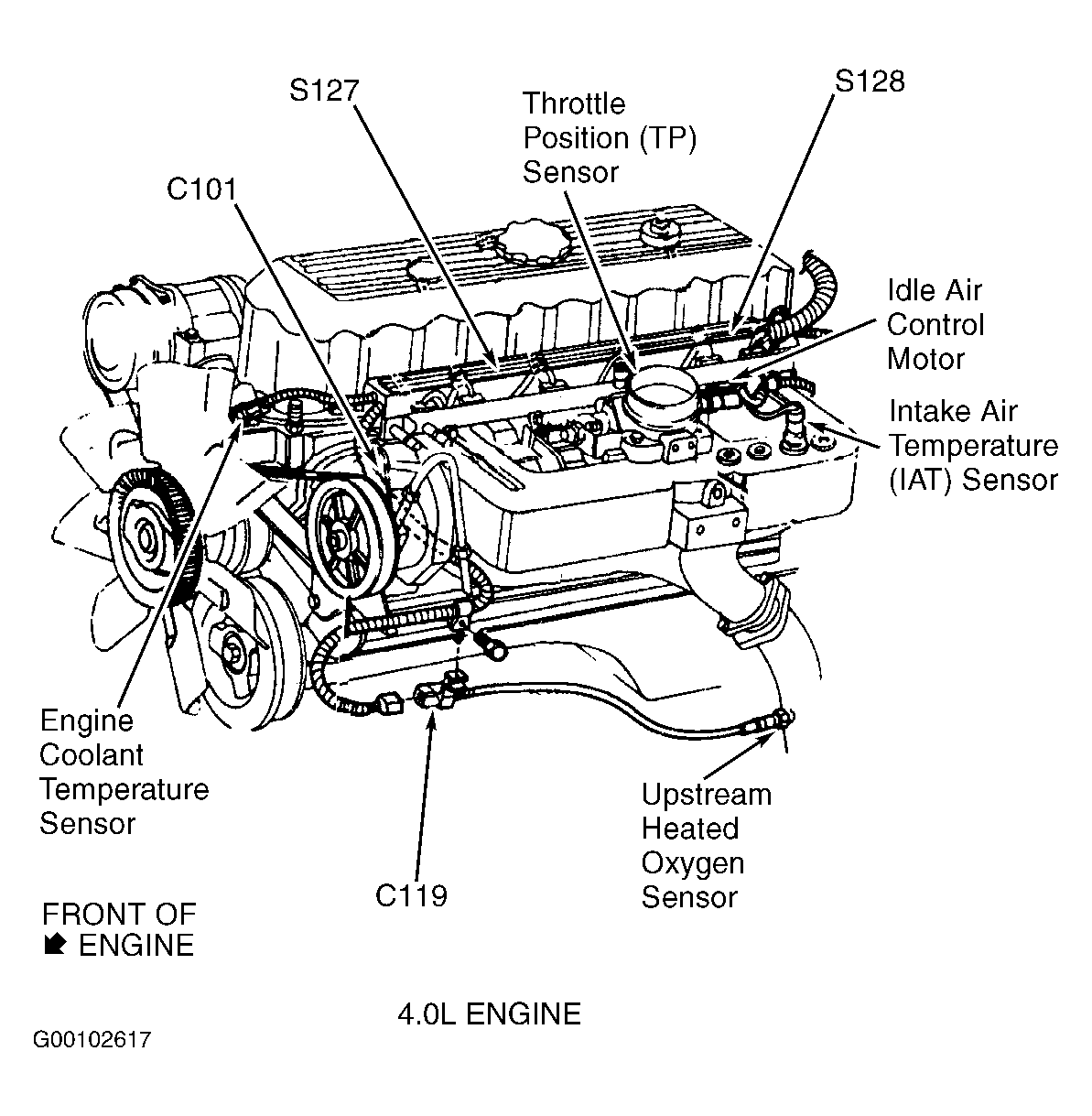

Fig 3: Left Side Of Engine (4.0L)

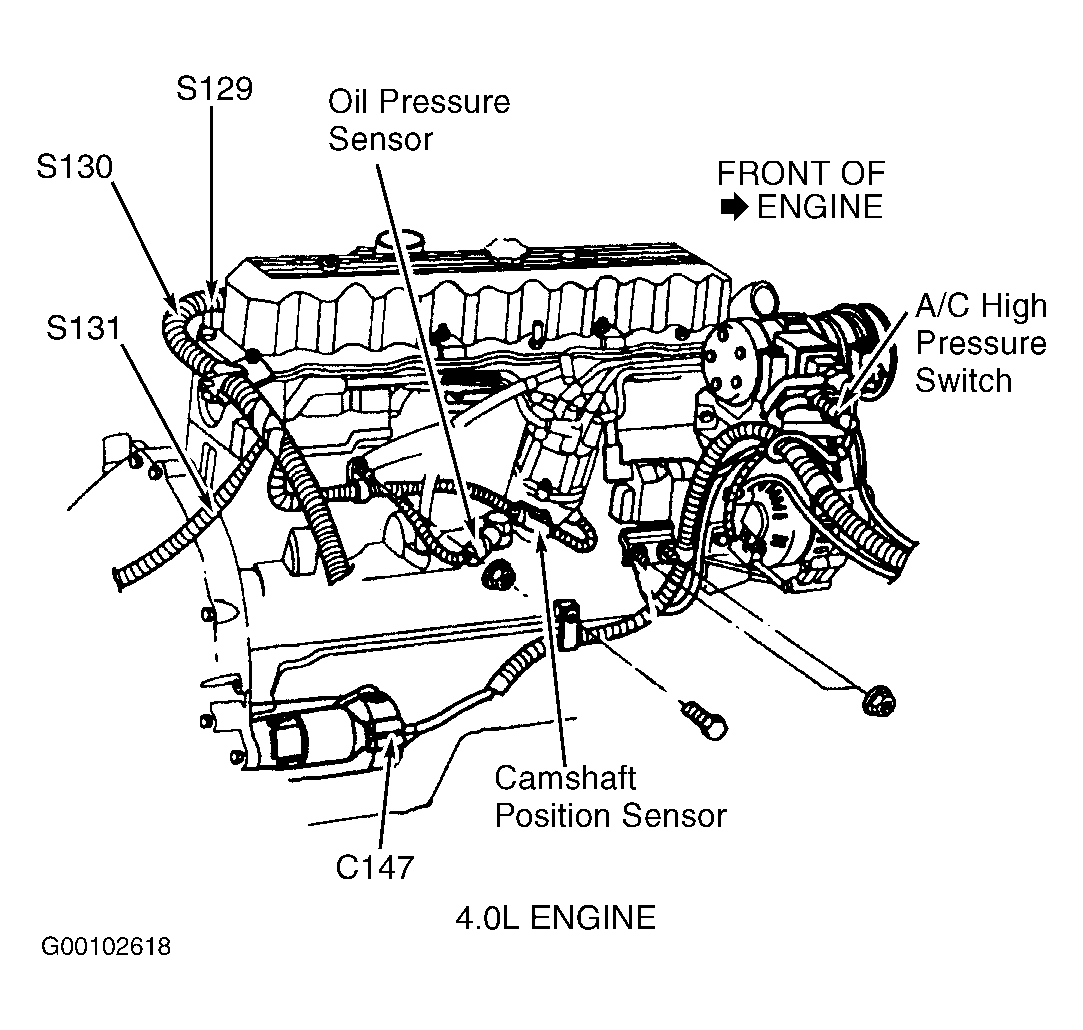

Fig 4: Right Side Of Engine (4.0L)

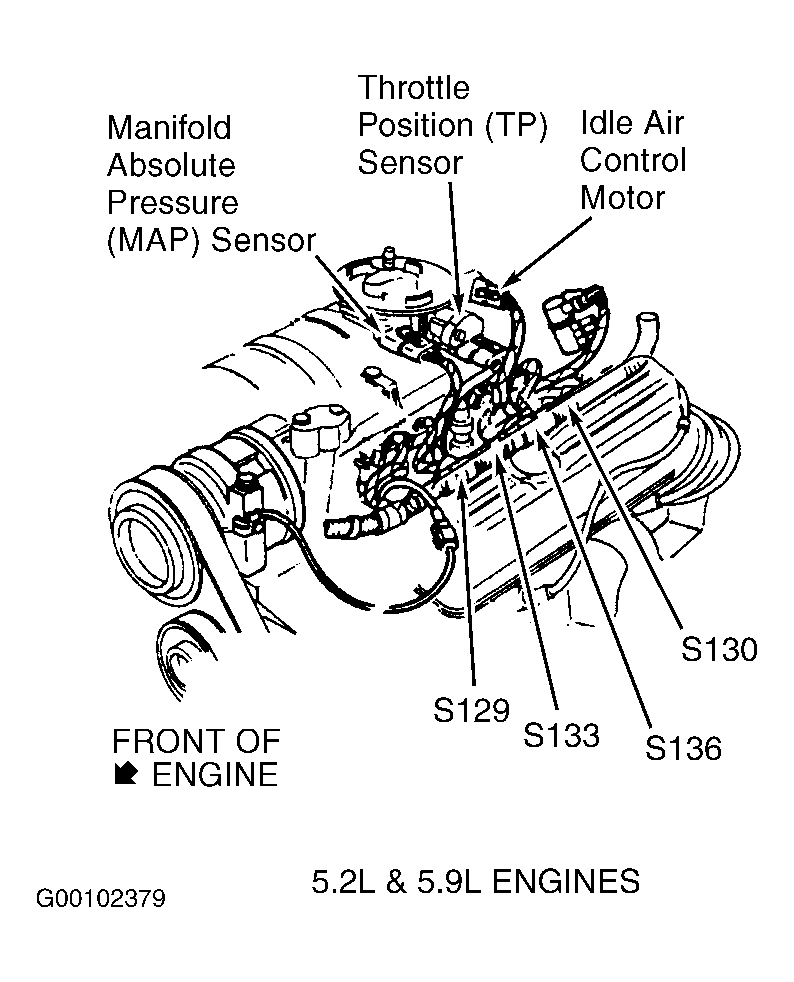

Fig 5: Left Side Of Engine (5.2L & 5.9L)

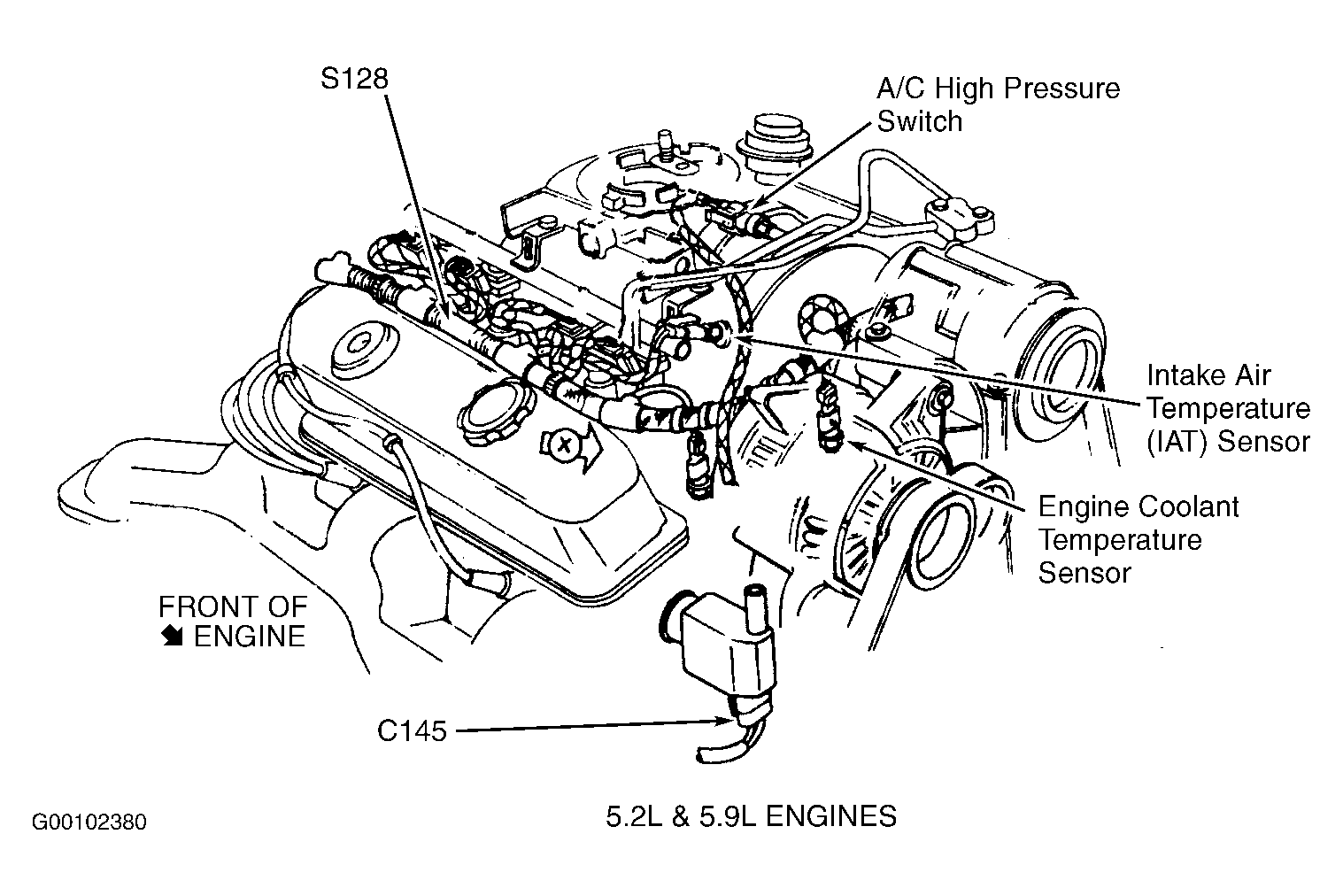

Fig 6: Right Side Of Engine (5.2L & 5.9L)
