Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

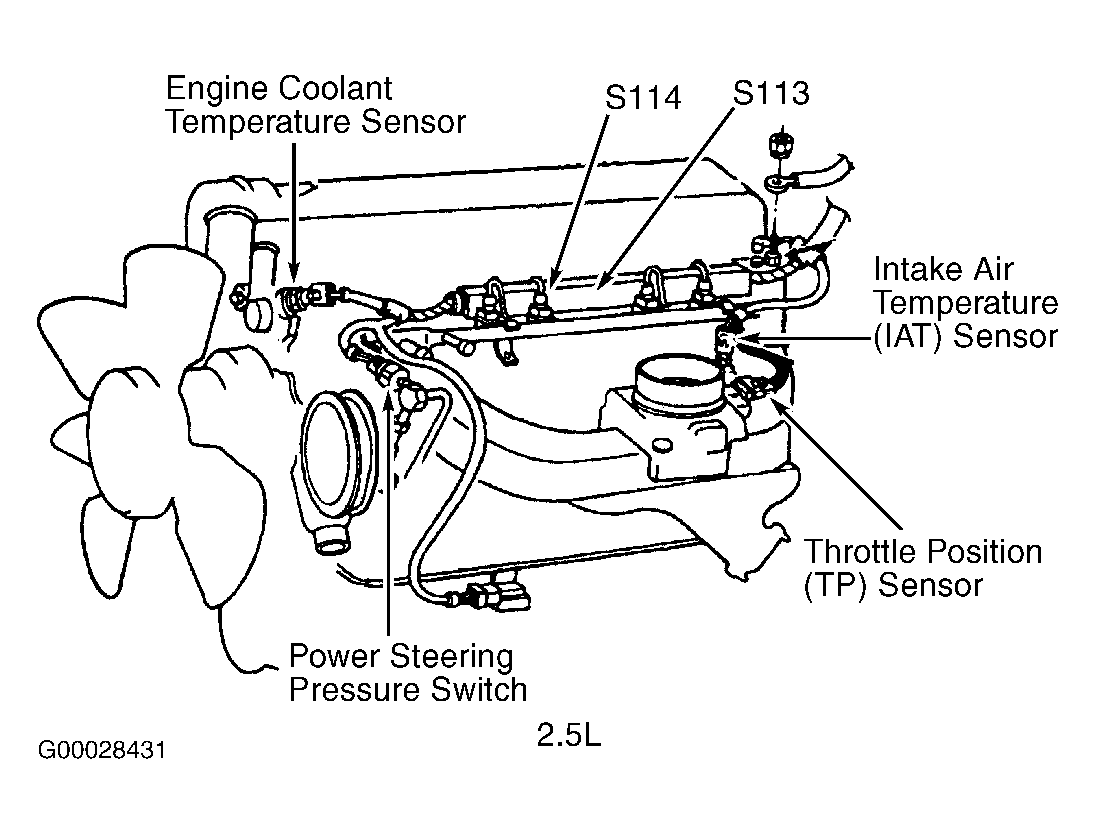

Fig 1: Left Side Of Engine (2.5L)

Fig 2: Locating Junction Block

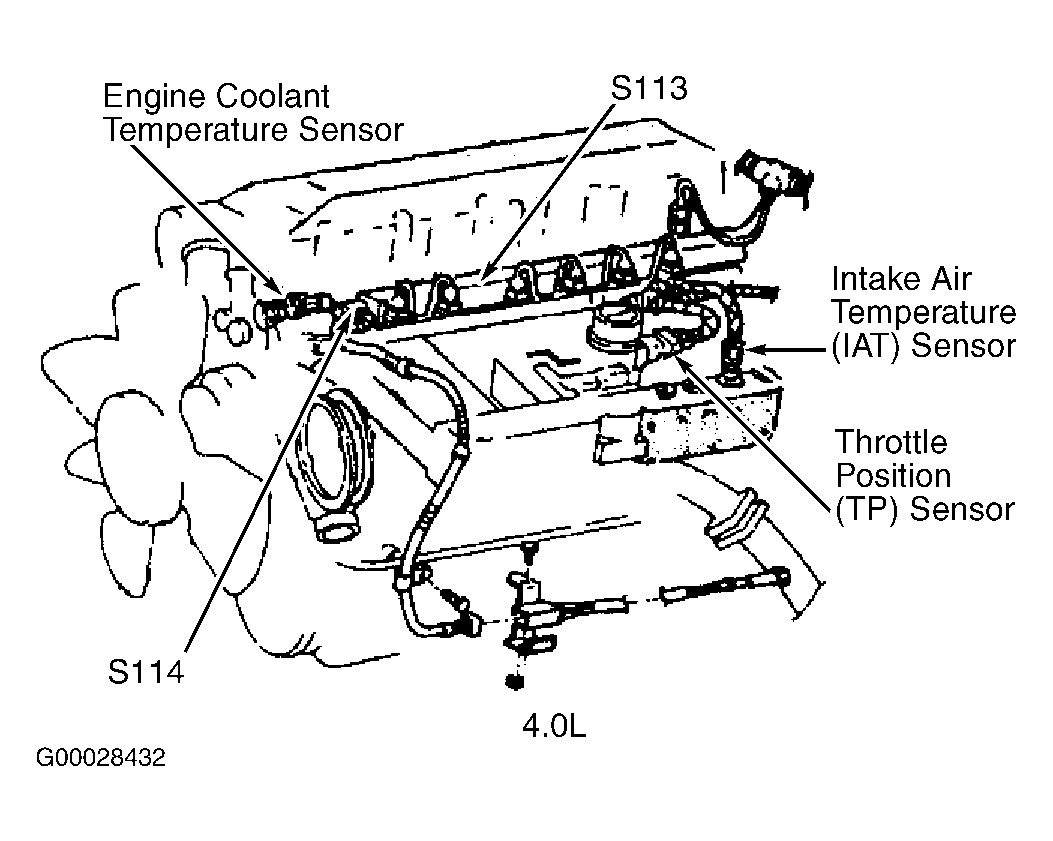

Fig 3: Left Side Of Engine (4.0L)

Fig 4: Distributor Assembly

Fig 5: Top Of Radiator

Fig 6: Controller Anti-Lock Brake

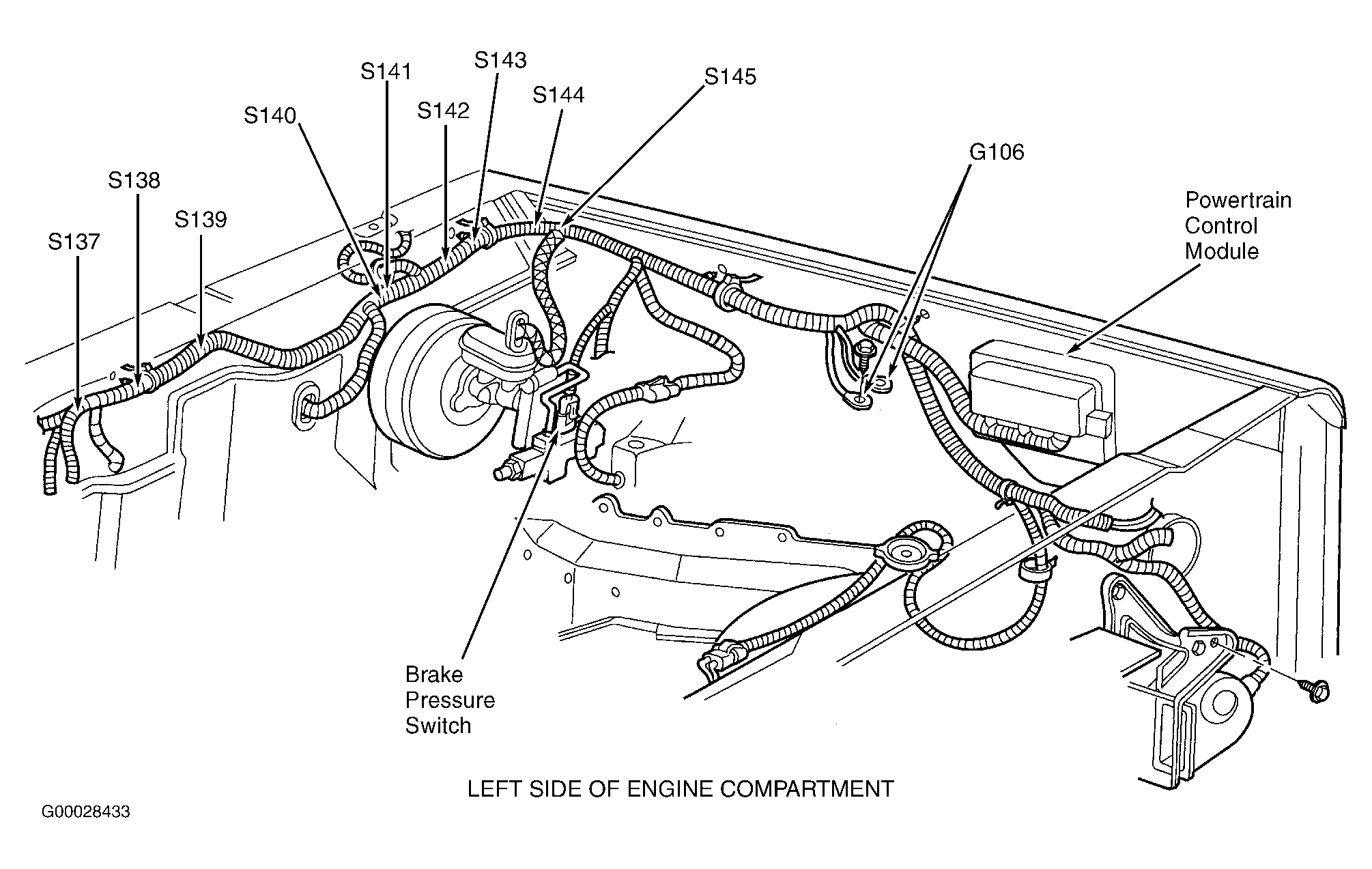

Fig 7: Left Side Of Engine Compartment

Fig 8: Right Side Of Engine Compartment

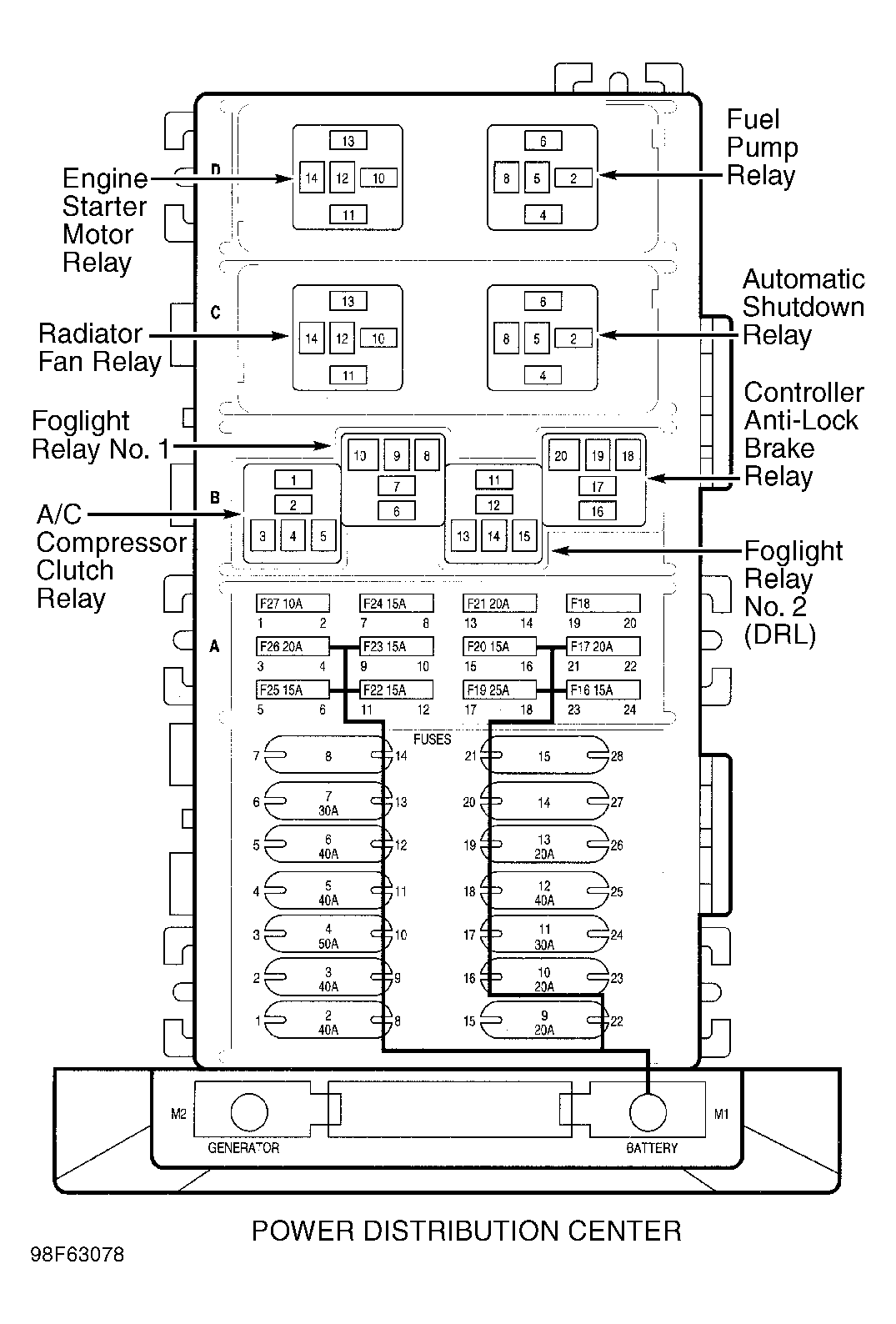

Fig 9: Power Distribution Center

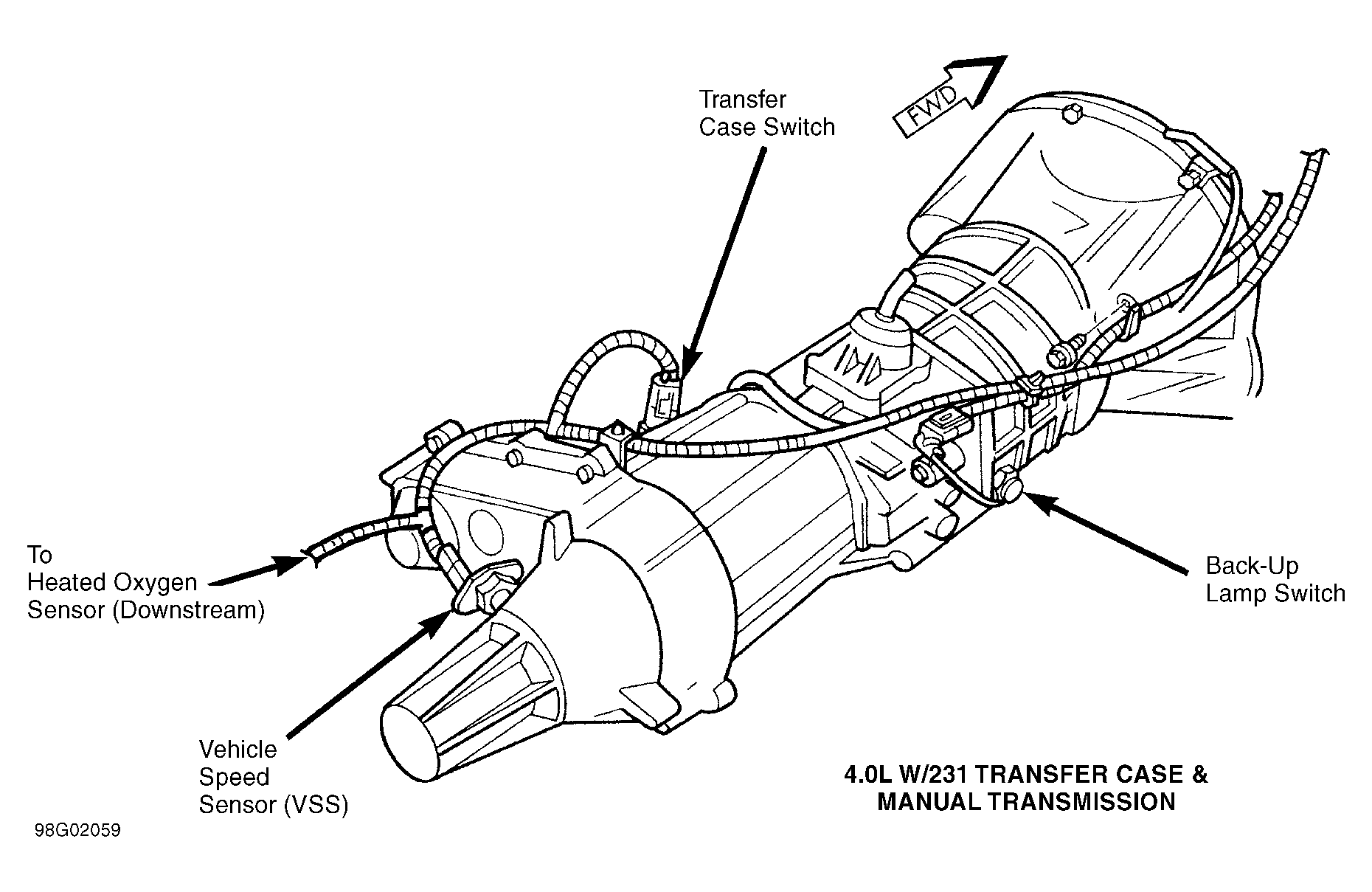

Fig 10: Transfer Case & Manual Transmission (4.0L W/231)

Fig 11: Transmission Housing

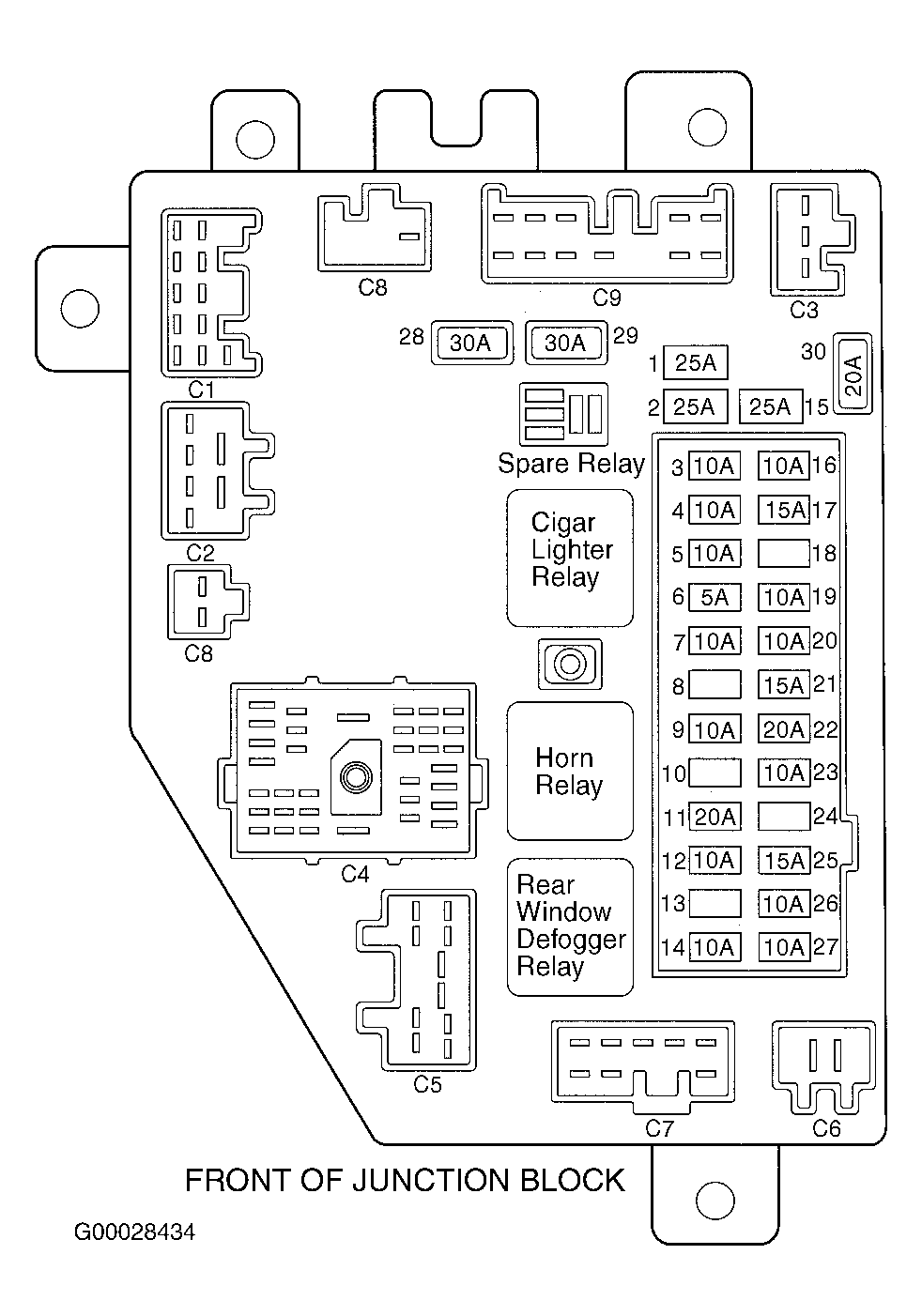

Fig 12: Front Of Junction Block
