Junction Block

NOTE: Junction block is located on the front passenger kick panel. See Fig 1 .

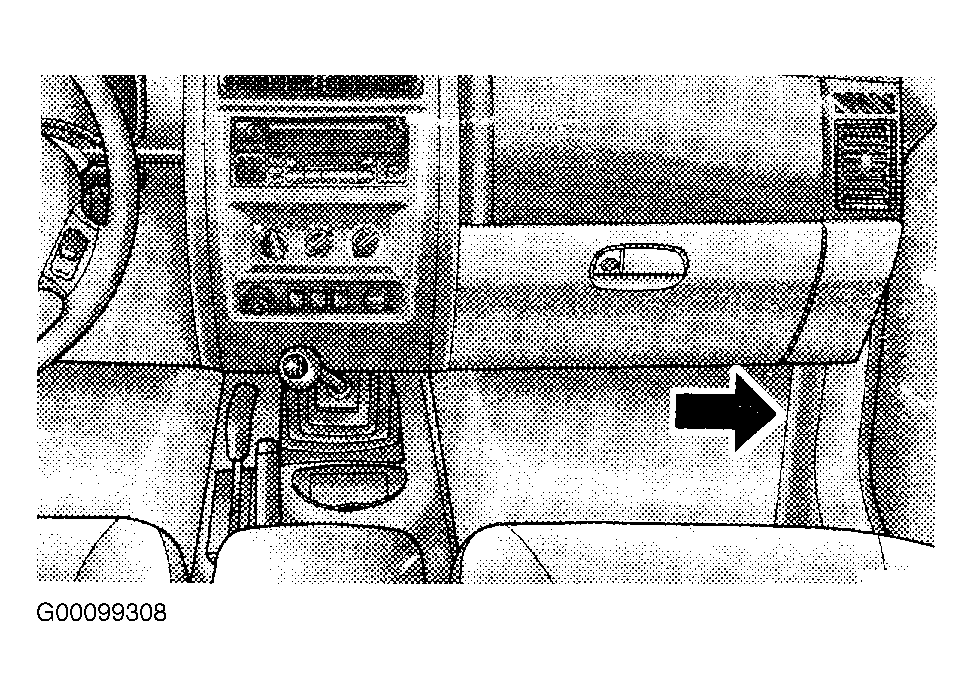

Fig 1: Locating Junction Block

Courtesy of CHRYSLER CORP.

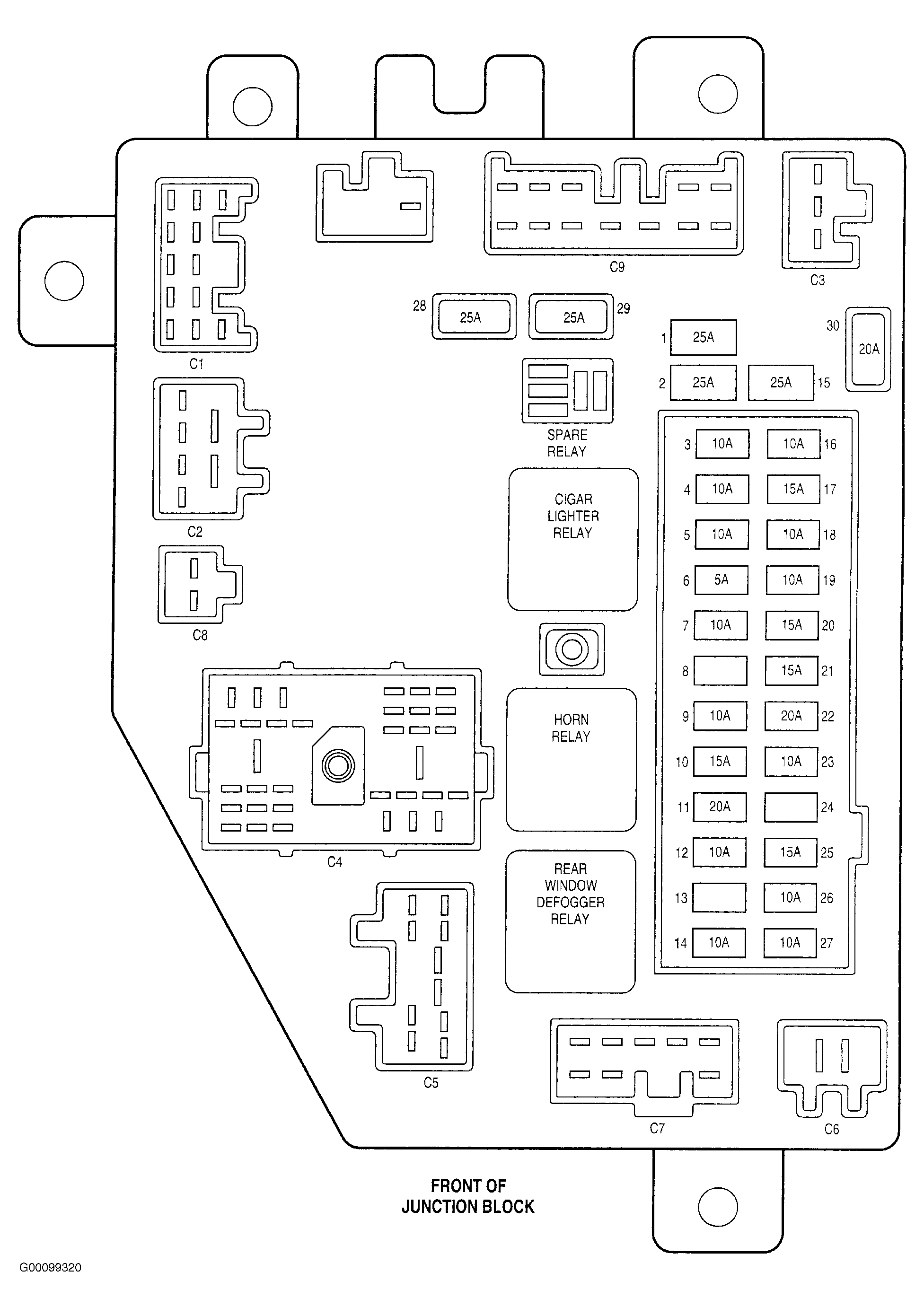

Fig 2: Identifying Junction Block Components

Courtesy of CHRYSLER CORP.

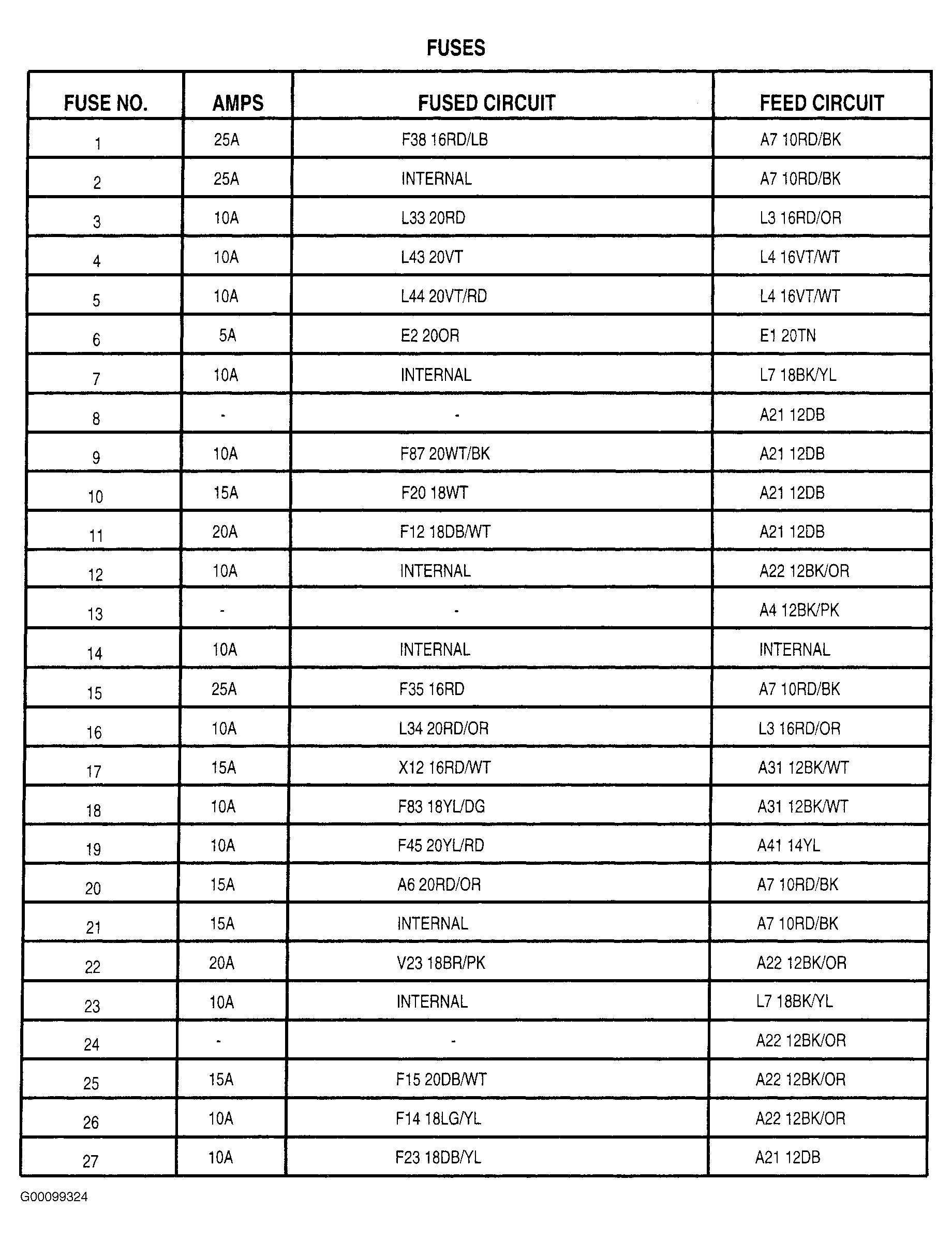

Fig 3: Junction Block Legend

Courtesy of CHRYSLER CORP.
