Fuel Level Sensor: Removal

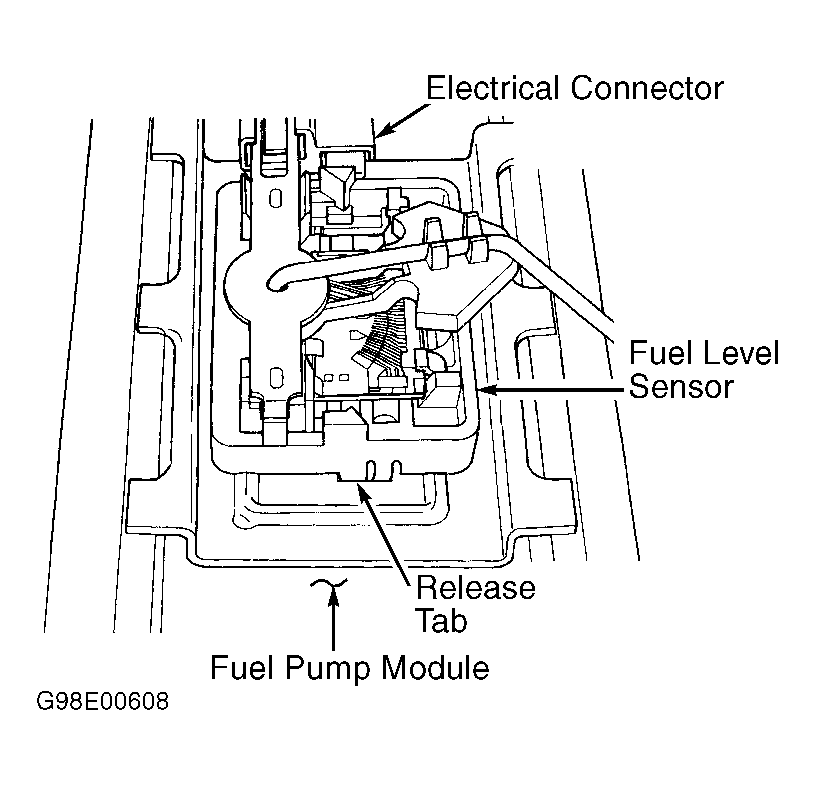

  1. Fuel level sensor is mounted on fuel pump module. See Figure. Fuel pump module is located on top of fuel tank. See Figure.
  2. Remove fuel pump module. See FUEL PUMP MODULE . Disconnect sending unit connector at sending unit. Note location of notch and release tab at end of fuel level sensor. See Figure. Carefully press on release tab. Remove fuel level sensor.
