Floor Jack

Vehicle may be raised by positioning jack under front or rear frame rails. See Fig 1.

NOTE: Use subframe rail lift points to hoist vehicle. Never raise vehicle with jack under axle tubes, body side sills, steering linkage components, drive shafts, engine/transmission oil pans, fuel tank or front suspension arms.

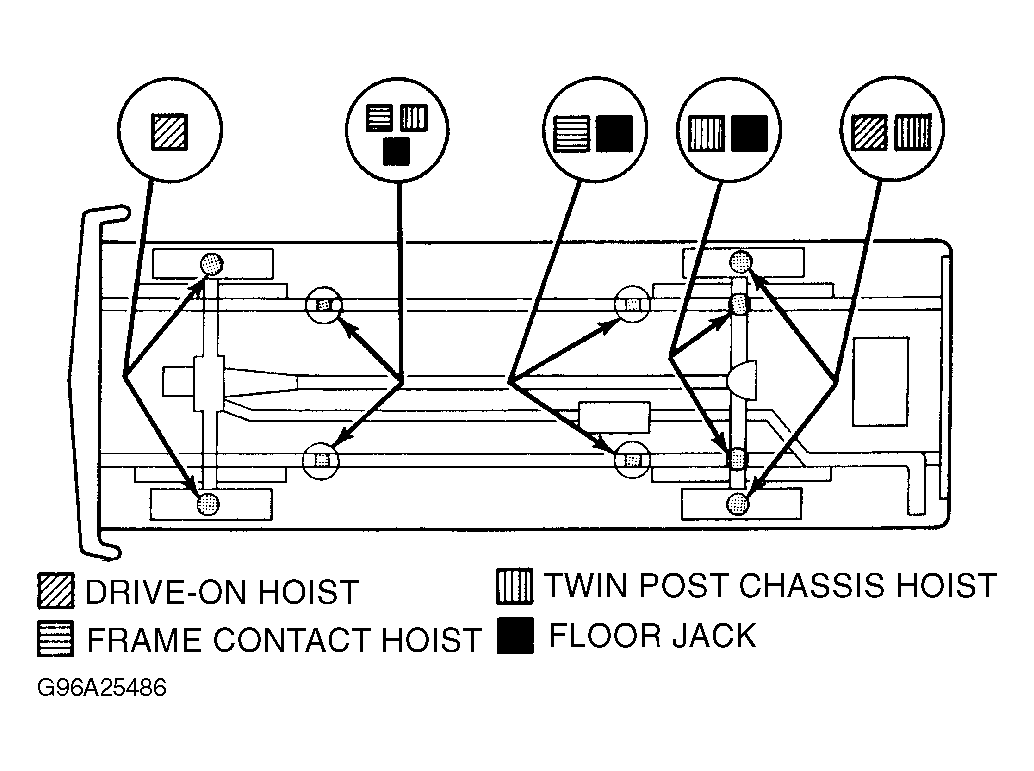

Fig 1: Identifying Hoisting & Jacking Locations
G96A25486Courtesy of CHRYSLER CORP.
