Body Control Module C1 - Gray 26 Way Connector End View
Body Control Module C1 - Gray 26 Way Connector End View

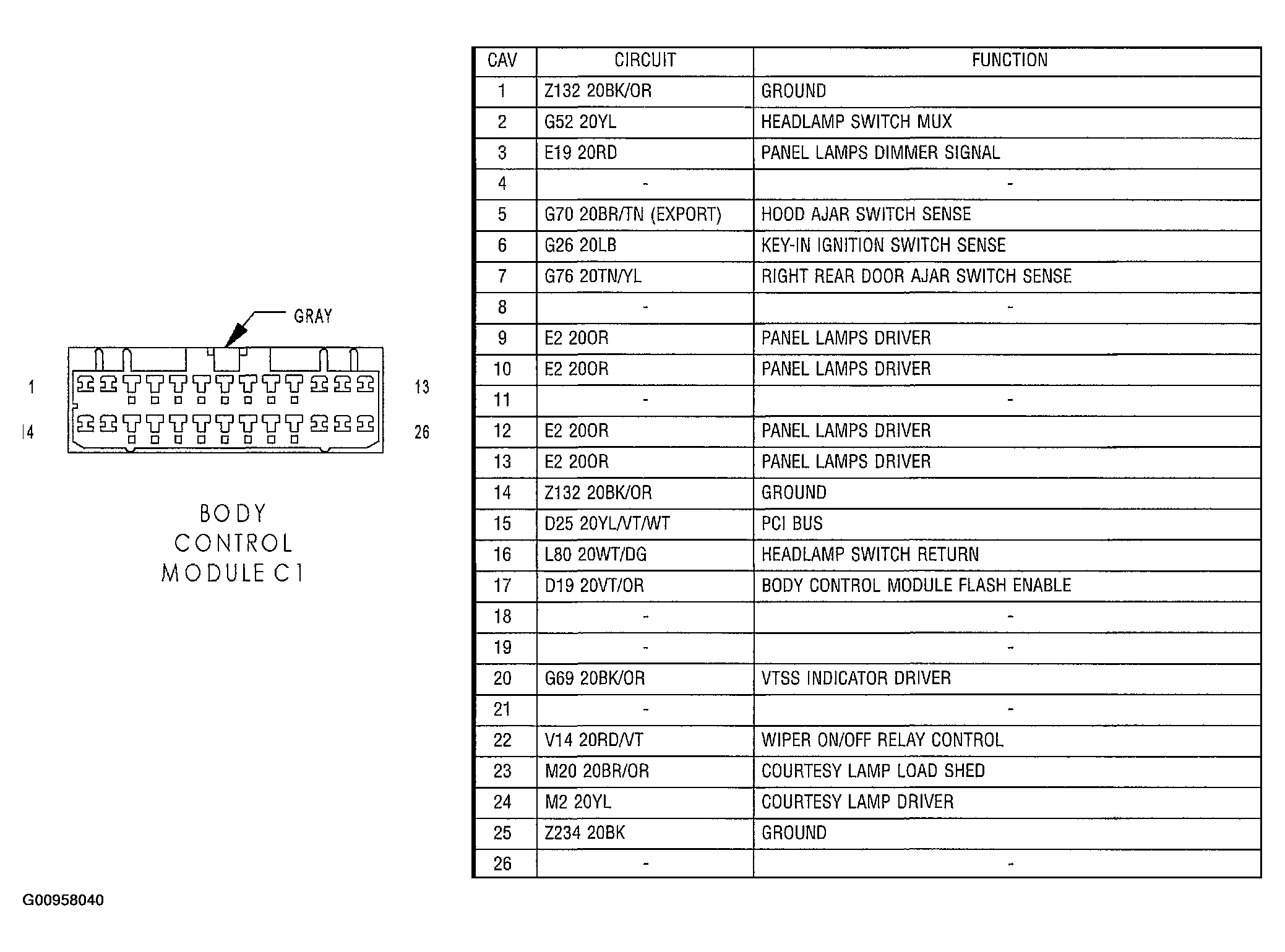

Fig 1: Body Control Module C1 - Gray 26 Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
