Junction Block Body Control Module - Black 26 Way Connector End View

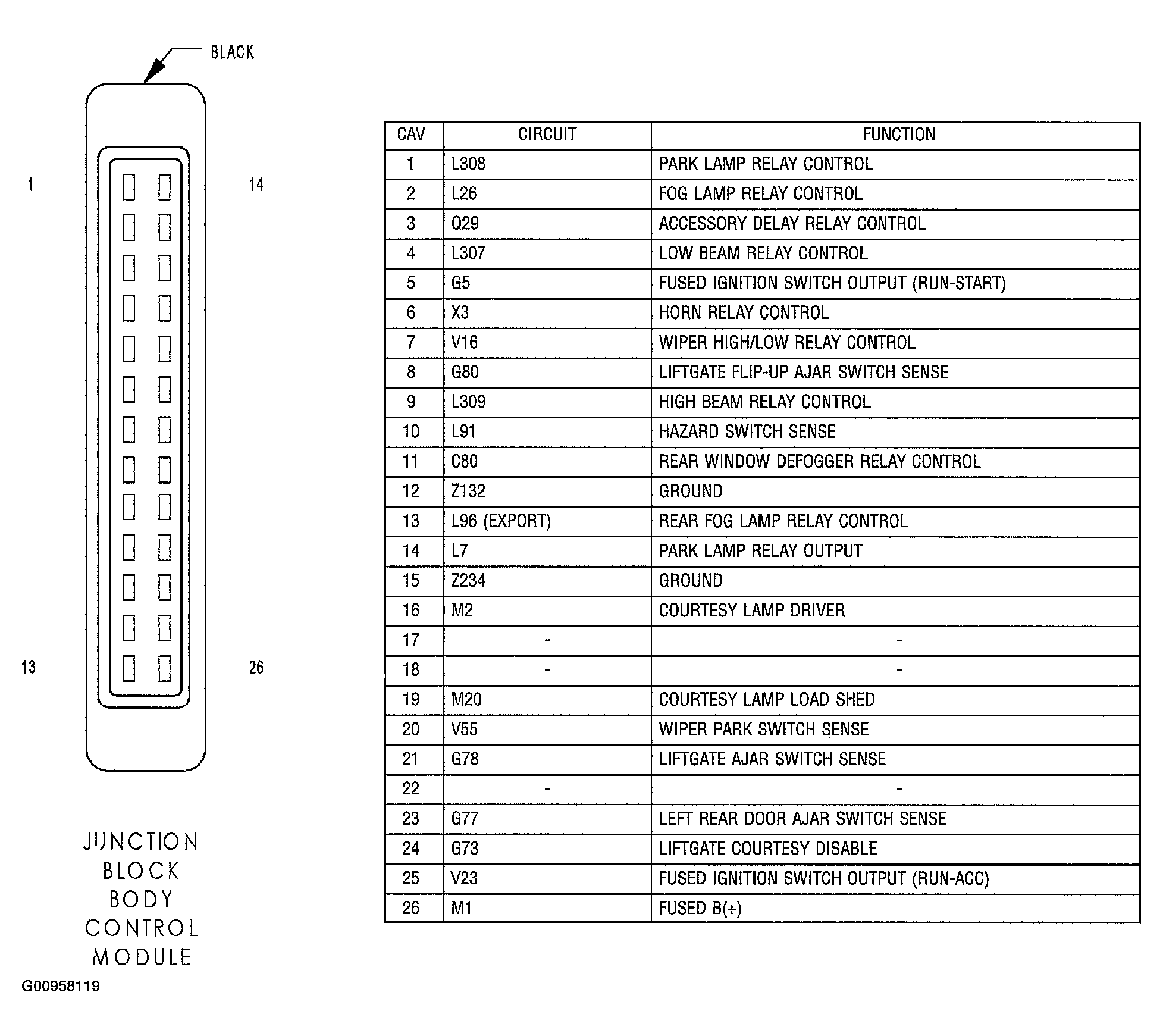

Fig 1: Junction Block Body Control Module - Black 26 Way Connector End View
G00958119Courtesy of CHRYSLER GROUP, LLC
