Left Front Impact Sensor Connector End View
Left Front Impact Sensor Connector End View

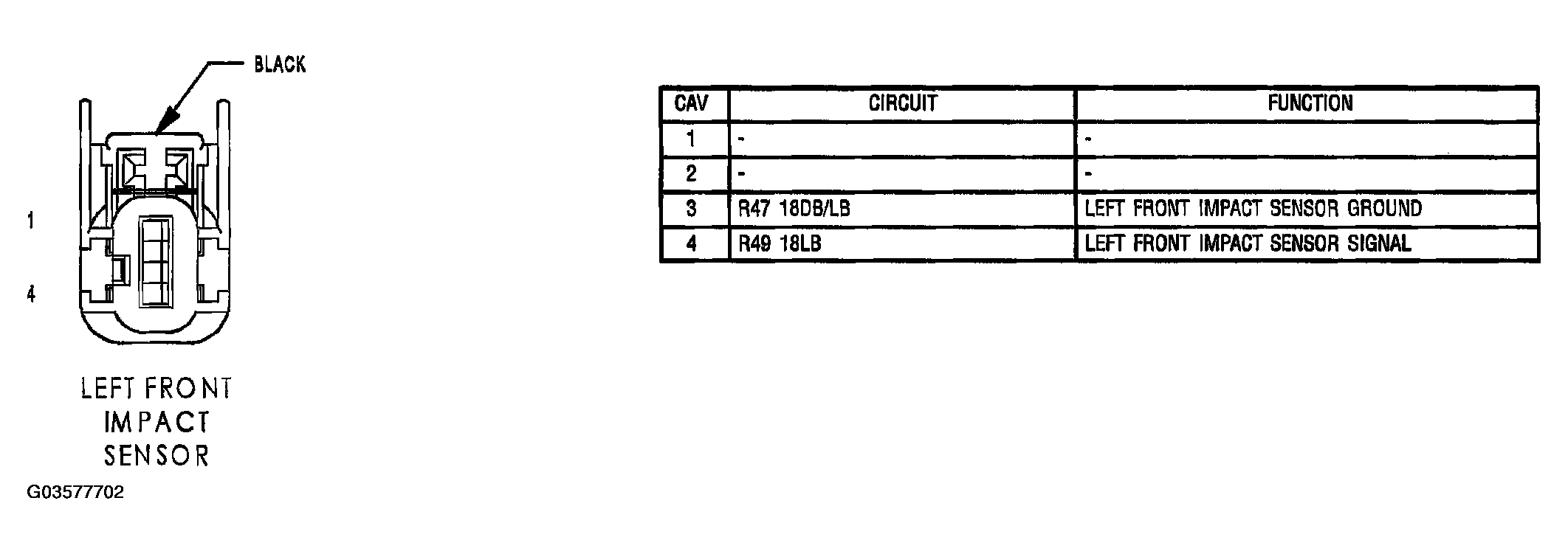

Fig 1: Left Front Impact Sensor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
