Left Multifunction Switch Connector End View
Left Multifunction Switch Connector End View

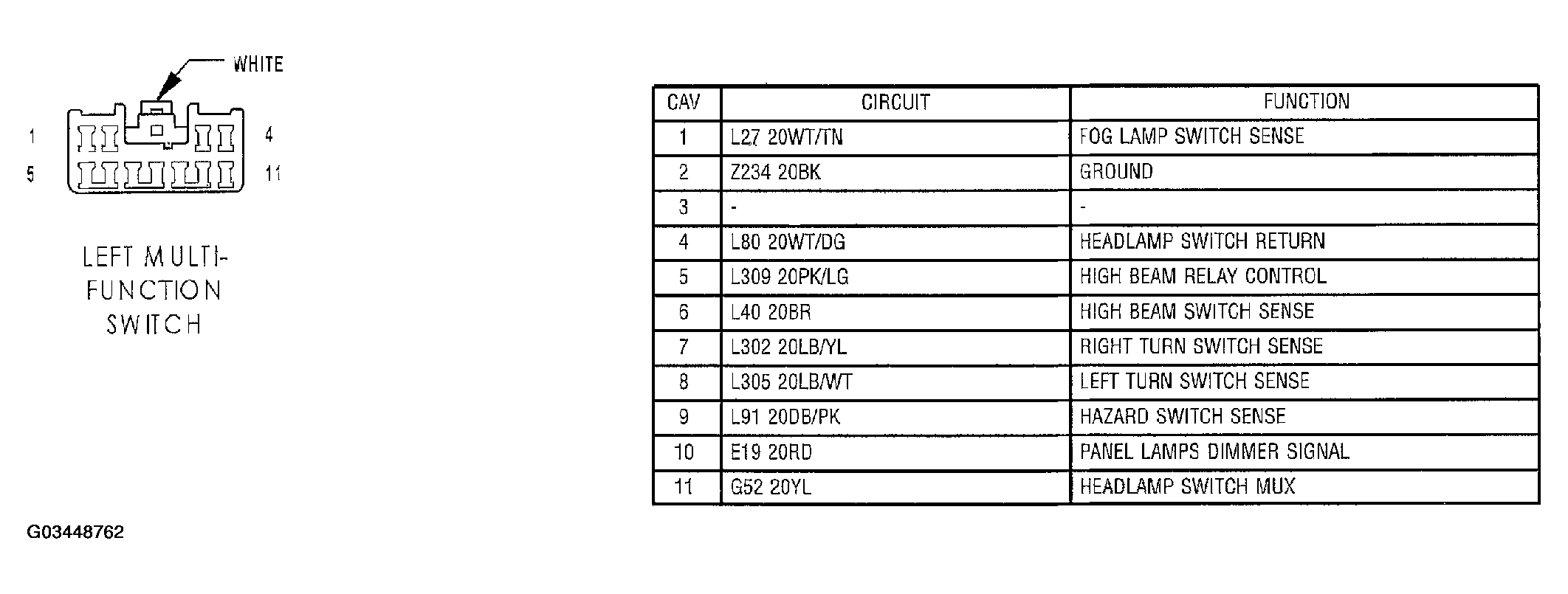

Fig 1: Left Multifunction Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
