ORC Airbag Control Module Connector End View (C2)

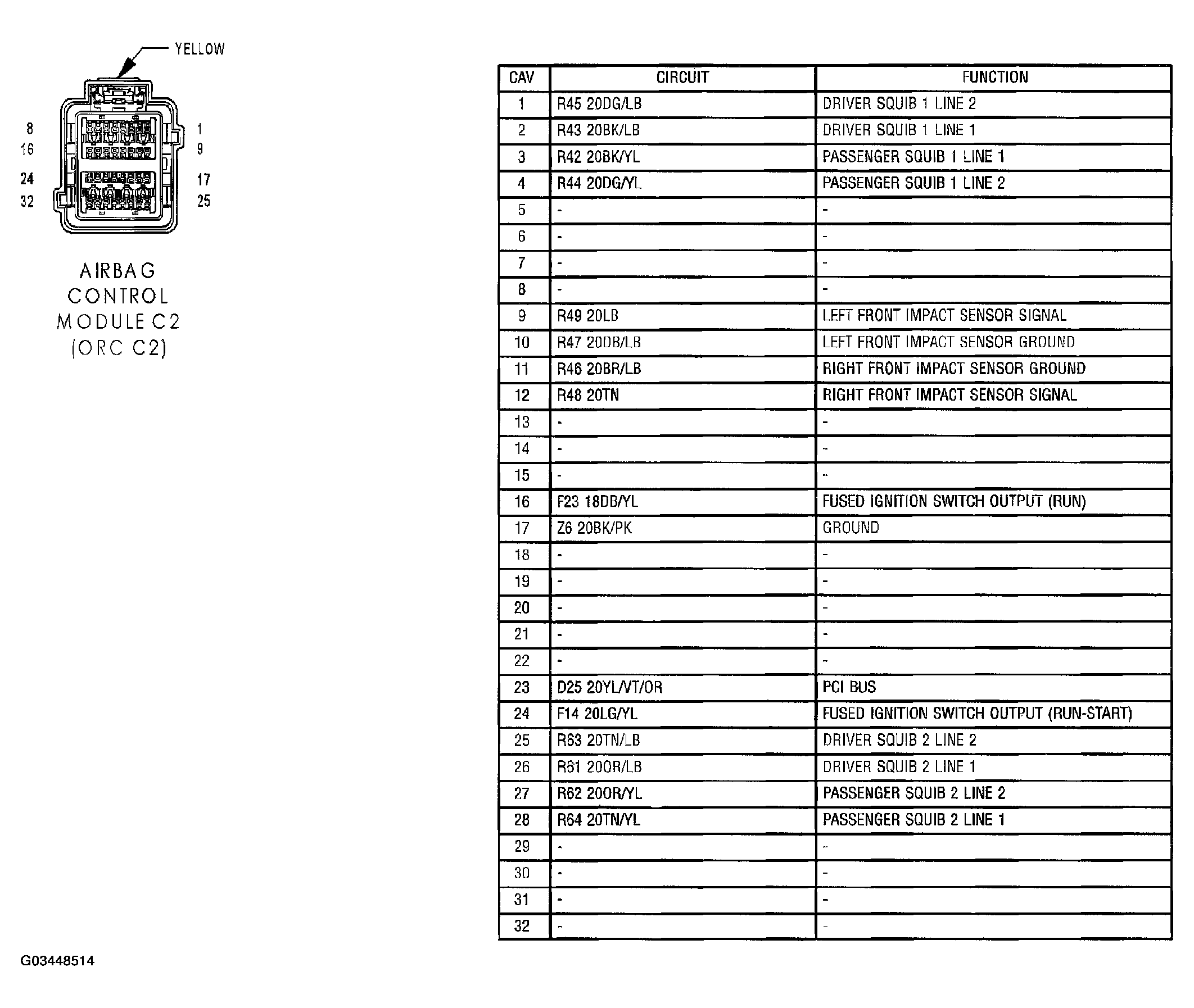

Fig 1: ORC Airbag Control Module Connector End View (C2)
G03448514Courtesy of CHRYSLER GROUP, LLC
